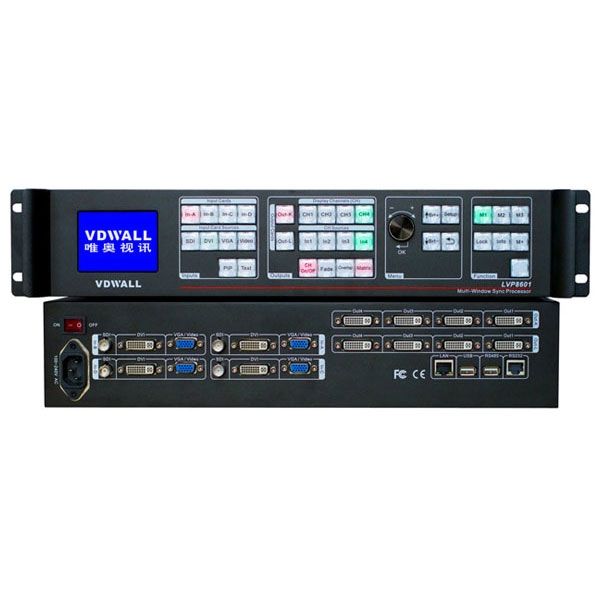

VDWALL LVP8601 Multi-window Sync Video Processor

VDWALL LVP8601 Multi-window Sync Video Processor.

VDWALL LVP8601 HD Multi-Windows Sync Stitcher LED Video Processor,Professional Processor for Small Pixel Pitch LED Screen.

1. An all-in-one processor integratingmix matrix switching, pixel-to-pixel sync mosaic and multi-display.
2. Вхідні дані:HD+SD, analog+digital, totally 16 inputs including: CVBS x 4, VGA x 4, DVI x 4, SDI / HD-SDI x 4.
3. Виходи:8 DVI FULL HD digitaloutputs, each with maximal resolution up to 1920 x 1080@60Hz.
4.Synchronous mosaic technology: to realize mosaic processing of ultra HD video displayedby multi-display.
graphics cardornetworking player.
5. Supportszoom mosaicorpixel-to-pixel mosaic, single unit can maximumly support horizontal15360 pixels
or vertical 8640 лінії.
6.4-picture preview output.
7.4K2Kultra high-definition dynamic background picture.
8. Adopting crosspoint high bandwith and high daterate transmission technology.
9. State-of-the-art motion adaptive de-interlacing technology: to eliminate trailing or jaggies of motion pictures.
10.Seamless switchingorfade-in / fade-out switchingbetween any two input signals.
11. Image and text overlap supported, AIAO ( Any In Any Out ) allows for displaying any captured picture in
any specific area on screen.
12.Multiple pre-saved modessupported,Seamless switchingorfade-in / fade-out switchingbetween different
modes.
13. Convenient panel / RS232 / USB / LAN control and setup.

VDWALL LVP8601 Multi-window Sync Video Processor.
