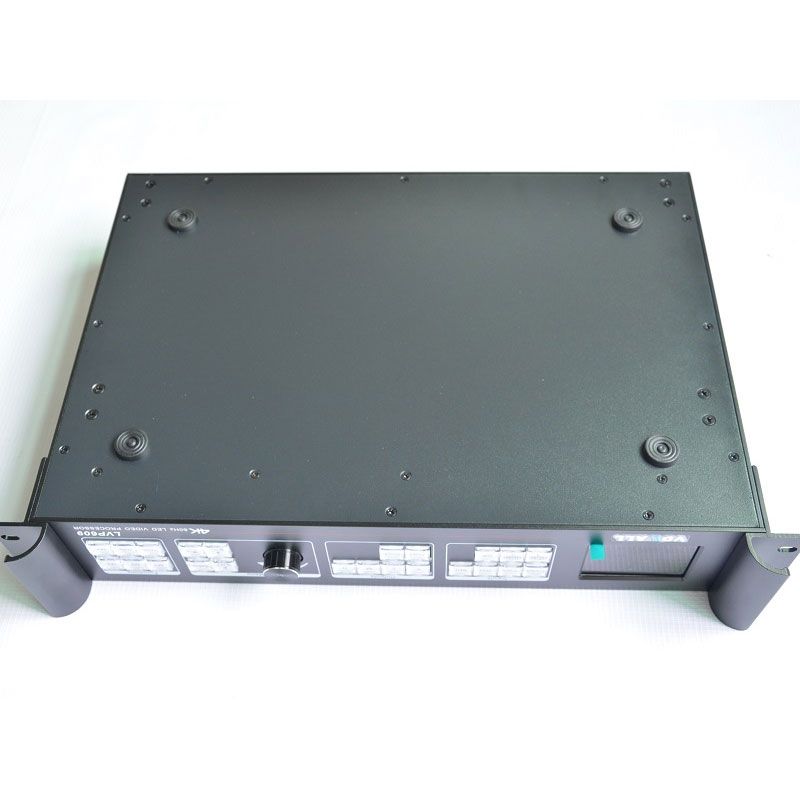

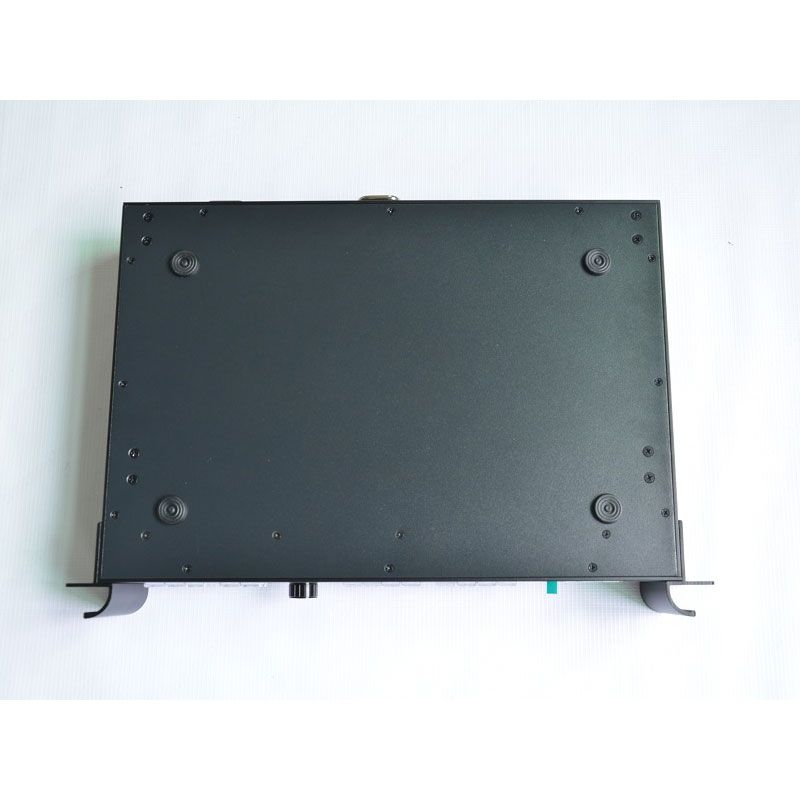

VDWALL LVP609 4K LED Panel Video Processor.
Full Color LED display Controller, LED display Media Processor.
The best price is for LVP6092. Це має 4 outputs with 800M pixels; LVP6093 has 6 outputs with 1200M pixels. LVP6094 has 8 outputs with 1650M pixels.
1. Faroudja® Real Color® Real Color Image Processing 0+ Bit Faroudja® DCDIDe-interlacing Processing，Faroudja® TureLife™Augmented Video and Image.
2. Advanced interlacing Processing Technology for mobile images，smear ghost and jag in the mobile images can be removed.
3. Fast processing for ultra 4K2K@60Hz HD images via hardware.
4. Real Pole-definition video processor. Single HDMI port can receive 4k2k@60Hz pole-definition signal. After sync processed in processor , It would output 4*1920x1080_60Hz windows showed on the 4K2K_60Hz screen pixel to pixel. Or any interception, stepless zoom in and zoom out for any LED screens with any resolution. There is no need for complicated software setup.
5. It supports fully spare, and it offers a safe and steady solution for high-reliability-backup.
6. Виходи：Ultra HD+HD+SD、Analog+Digital，among which：HDMI2.0??K2K@60Hz）x 2，DP x 1，CVBS x 1, VGA x 1, DVI x 1, SDI / HD-SDI x 1，Seamless Switching, Fade-in / Fade-out between any inputs.
7. Outputs *DVI HD outputs. Each output port can reach 1920*1080_60Hz.
8. Sync monitoring 4K2K@60Hz windows on 1080p display.
9. One key to any of the preset modes，and any mode of the seamless switching, Fade-in / Fade-out can be freely called.

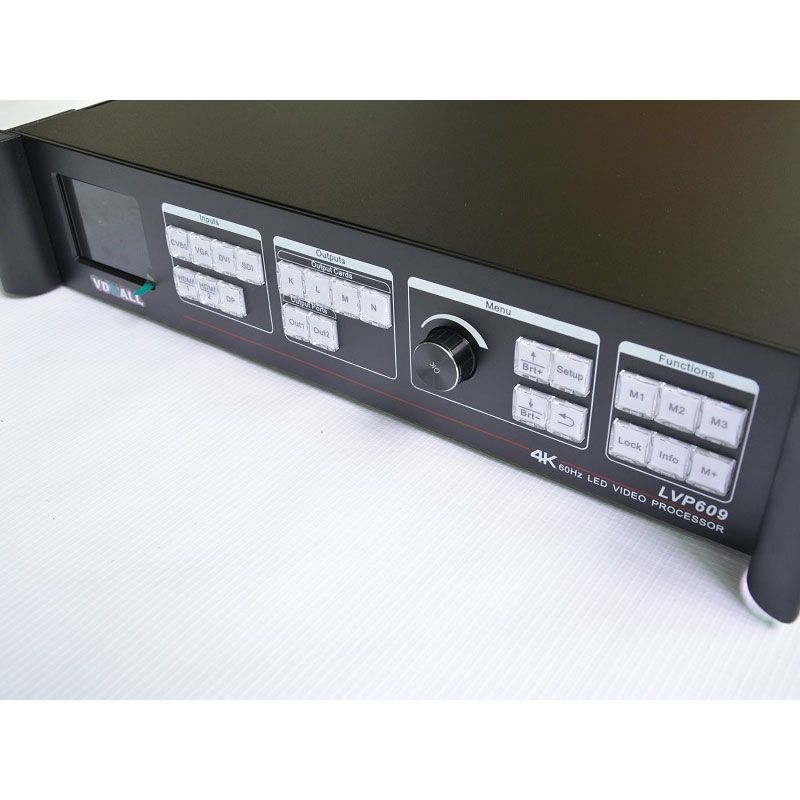

10 It is easy and convenient to set up by the front panel or RS232/USB/LAN interface.
| VDWALL LVP609 4K LED Panel Video Processor Inputs | ||
| Quantity /Type | 2×Video
1×VGA（VESA/p> 1×DVI（VESA/p> 1×HDMI 2.0（（VESA/CEA-861 1×SDI（SDI/HD-SDI/3G-SDI |
|
| Video system | PAL/NTSC | |
| Composite video amplitude Impedance | 1V（p_p75Ω | |
| VGA Format | PC（VESA | 1920×1200_60Hz |
| VGA amplitude Impedance | R、Г、B = 0.7 V（p_p75Ω | |
| DVI Format | PC（VESA | 1920×1200_60Hz |
| HDMI Format（HDCP2.0 | PC（VESA | 3840×2160_60Hz |
| HDMI2.0（CEA-861 | ||
| SDI Format | SMPTE259M-C
SMPTE 292M SMPTE 274M/296M SMPTE 424M/425M |
480i_60Hz
576i_50Hz 720стор |

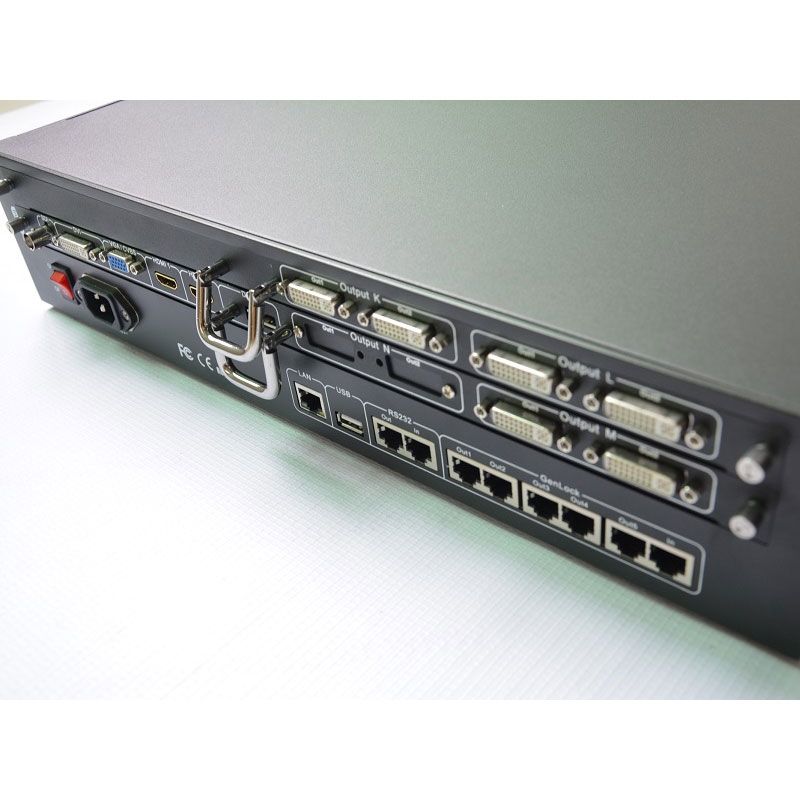

| Вхідні роз'єми | відео： BNC/ 75Ω VGA 5pin D_Sub(Female) DVI4+1 DVI_DHDMI：HDMI ATYPESDI：BNC/ 75Ω |
|
| Вихід | ||
| Quantity /Type | 8× DVI | |
| DVI Format | 1920×1080_60Hz | |
| Вихідні роз'єми | DVI 4+1 DVI_D | |
| інші | ||
| КОНТРОЛЬ | RS232/USB/LAN | |
| Вхідна напруга | 100-240VAC 50/60Hz | |
| Загальне споживання електроенергії | 20В | |
| Environment temperature | 0-45 | |
| Вологість навколишнього середовища | 15-85% | |
| Product size | 483(Л) х 338(В) x94(Х)мм | |
| Carton size | 540(Л) х 400(В) х 180(Х)мм | |
| Вага нетто | 5.95Кг | |
| Вага брутто | 8.8Кг | |
