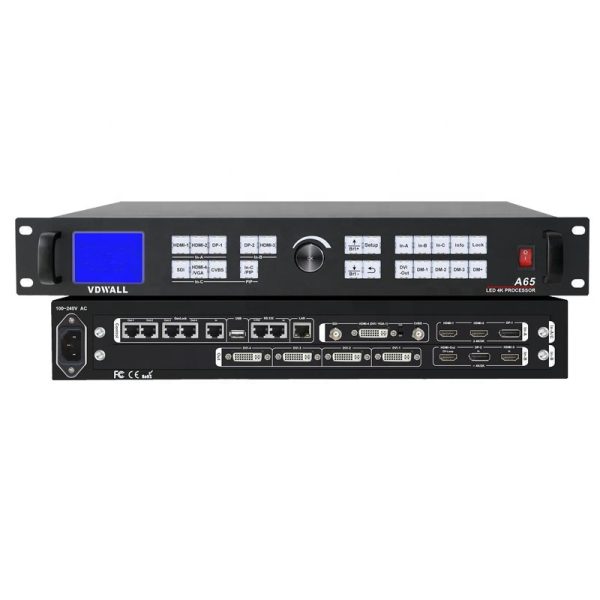

VDWALL A65 4K Multi-Image Video Processor

VDWALL A65 4K Multi-Image Video Processor.

5 true 4K2K_60Hz input ports，among which 3 HDMI2.0 HDCP2.2.

DP1.2 K combined digital+ analogue input ports, including one HDMI1.3(compatible with DVI、VGA ）、one 3G-SDI、one CVBS br Seamless and Fade in/out signal transition??br /> Genuine 10-Bit image processing，color more vivid and natural，gray level transition more smooth;
4 DVI output ports，driving capability up to 9.2 мільйонів пікселів. Synchronized splicing of 3840X2160 LED screen；each DVI output offers user defined resolution, maximum width or height 2160, 4 DVI outputs jointly realize 8640 пікселів driving in width or height;
Any size&position setup of output image and input image cropping, greatly facilitate irregular screen splicing;
Provides saturation、gray level、brightness adjustment in individual RGB channel with 256 рівень. Adaptive calculation aided splicing，user just configure size&position of each unit screen, A65 will automatically calculate and apply mosaic parameter, flexible and intuitive;
Synchronized monitoring available，connect one DVI output to 1080P LCD to monitor 4K input signal Genlock multiple device cascading, extend pixel to pixel display to 8K4K@60Hz or 16K2K@60Hz via 4 A65 cascading;
13 preset display modes，support mode duplication and backup;
Flexible and convenient front panel control or RS232/USB/LAN control;
Widely applied in narrow pitch screen projects, such as exhibition、station advertisement、stage performance、restaurant hall、lecture room、school auditorium、church、market promotion etc.

VDWALL A65 4K Multi-Image Video Processor.
