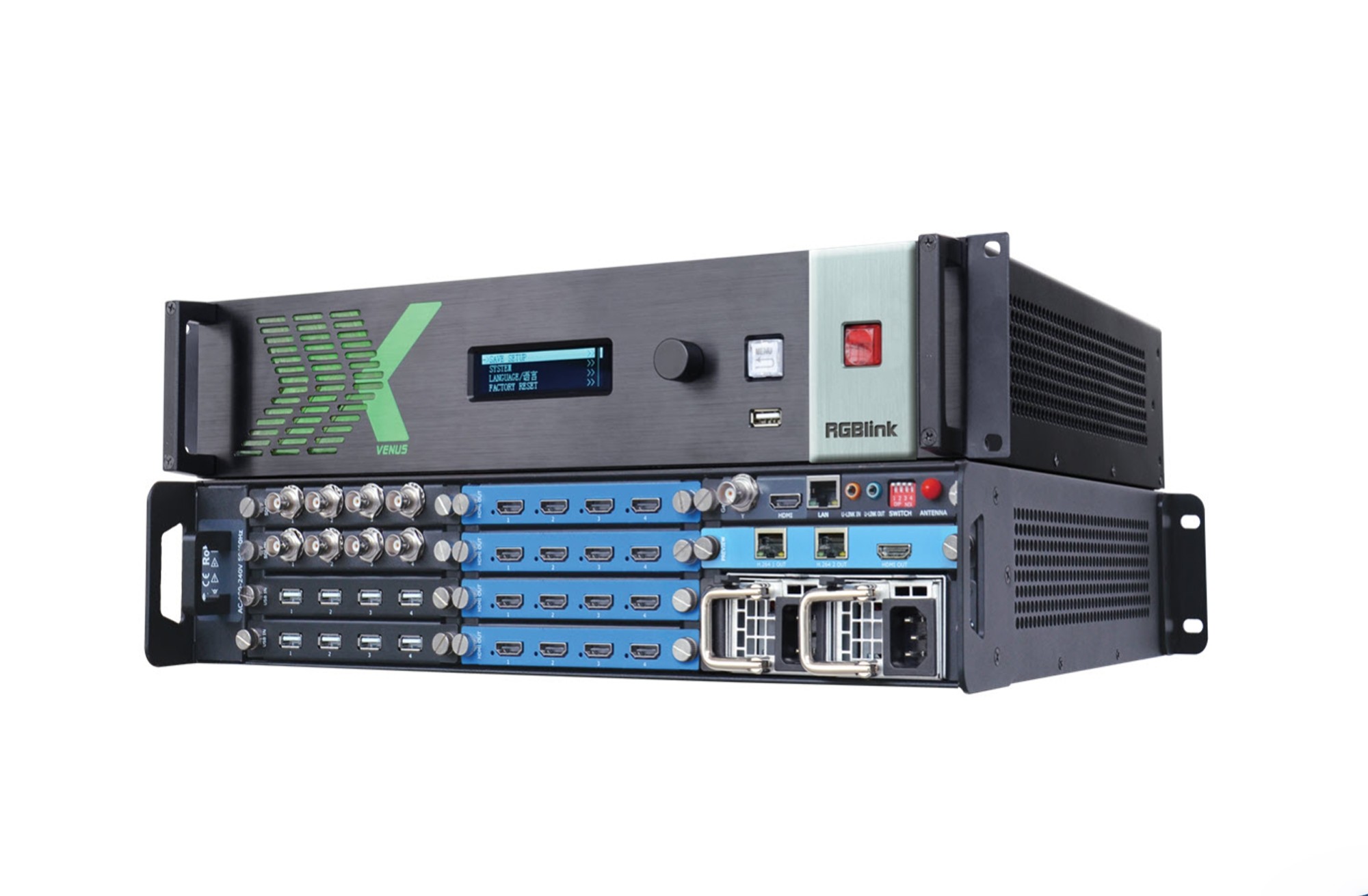

RGBLink VENUX X2 Multiple Output HDMI Video Processor is a multiple output video processor, offering up to 16 outputs via four card-frame style slots. Output signal choices include HDMI, 3G-SDI, HDBaseT and H.264. On the input side there are similarly four slots, supporting up to a total of 16 video inputs. Options for input include VGA, CVBS, USB Media, 3G-SDI, HDBaseT as well as a multi-signal 4K in option. X2 combines truly seamless, fade in fade out, glitch-free switching with advanced scaling technologies to meet the requirements of high quality, high resolution video applications, and with multi-mode operations built right in, X2 can equally be used as a video wall processor, a presentation processor or a dynamic router. EDID management is built in enabling wide signal support, and faciliting any-signal cross-conversion for output. Real-time resolution adaptation, color uniformity compensation technology are also on board. From the front panel operation check status and set IP address, them connect remotely over a LAN to XPOSE for dynamic over-the-wire configuration of X2 X2 is a powerful yet economical solution, ideal for video wall applications, supporting multi-window, multi-layer video configurations across the output pixel space.
RGBLink VENUX X2 Multiple Output Video Processor Features:
До 16 (2К) х 16 (2К) inputs/ouputs or 4 (4К) х 16 (2К) (4×4 slots)
Wide range of user fit smart detect signal choices for input and output
Auto input format detect and conversion
EDID Management on board
Genlock Y and Digital Reference built in
Real-time resolution adaptation
Isolated storage and frame rate conversion
Rotation in 90°increments
Color uniformity compensation technology
DSK and Chroma Key features
Dedicated source preview module (standard with HDMI and H.264)
Option for redundant hot-swap power supply
Hot backup and auto-fail over functionality
User-defined resolution adjustments
Multi-layer / Багатовіконний
Multi-mode – choose from video wall, presentation or dynamic routing
XPOSE desktop and mobile compatible
RGBLink VENUX X2 Multiple Output Video Processor Parameter:
|
Специфікація
|
|||
|
Роз'єми
|
Введення | 4 slots, до 16 входи, select from below | |
| HDMI 2K | 4 x HDMI-A | ||
| 3G SDI | 4 x BNC | ||
| Digital | 2 x HDMI-A (в / loop) | 2 x DP (в / loop) | ||
| CVBS | 4 x BNC | ||
| VGA | 3 x DB15 | ||
| H.264 | 4 x RJ45 | ||
| HDBaseT | 4 x RJ45 | ||
| USB | 4 x USB 2.0 | ||
| Вихід | 4 slots, до 16 виходи, select from below | ||
| HDMI 2K | 4 x HDMI-A | ||
| 3G SDI | 4 x BNC | ||
| HDBaseT | 4 x RJ45 | ||
| H.264 | 2 x RJ45 | 1 x HDMI-A | ||
| PVW | H.264 | 2 x RJ45 | |
| HDMI | 1 x HDMI-A | ||
| спілкування | uLink Serial | 2 x 3.5mm Jack (в / out) | |
| LAN | 1 x RJ45 | ||
| Genlock In/Sync | 1 x BNC | 1 x HDMI-A | ||
| Wifi Antenna | 1 x RP-SMA | ||
| потужність | 2 slots (1 PSU fitted as standard | ||
| 1 x IEC (Each PSU) | |||
| Performance | Input Resolutions | SDI | |
| SMPTE | 480i | 576i |/60 |/60 |24/25/29.97/30/50/59.94/60 |24/25/29.7/30/50/59.94/60 | ||
| HDMI | USB | |||
| SMPTE | 480i | 576i |/59.94/60 | 59.94/60| | ||
| VESA | |||
| HDBaseT | |||
| SMPTE | /59.94/60 |
/24/25/29.97/30/50/59.94/60| |
||
| VESA | |||
| VGA | |||
| VESA | |||
| CVBS | |||
| SMPTE | 480i | 576i | ||
| H.264 | |||
| HDMI | DisplayPort | |||
| SMPTE | 480i | 576i | /59.94/60 |
/59.94/60 | |
||
| VESA | |||
| Output Resolutions | Select from below or configure customized | ||
| SDI | |||
| SMPTE | /59.94/60 |/59.94/60 |
24/25/29.97/30/50/59.94/60 |
||
| HDMI | HDBaseT | |||
| SMPTE | 59.94/60 | 59.94/60 |
24/25/29.97/30/50/59.94/60 |
||
| VESA | |||
| H.264 | |||
| Supported Standards | SDI | SMPTE 425M (Level A & Б) | SMPTE 424M |
SMPTE 292M | SMPTE ST 259M-C | DVB-ASI |
|
| HDMI | 1.4 | ||
| DP | 1.1a | ||
| HDBaseT | 1.1 | ||
| VGA | UXGA | ||
| USB | 2 | ||
| Рівень сірого | 10біт | ||
| потужність | Вхідна напруга | 100V~240V, 50/60HZ auto adjusted | |
| Максимальна потужність | 200В | ||
| Environment | температура | 0°C ~ 40°C | |
| Вологість | 10% ~ 85% | ||
