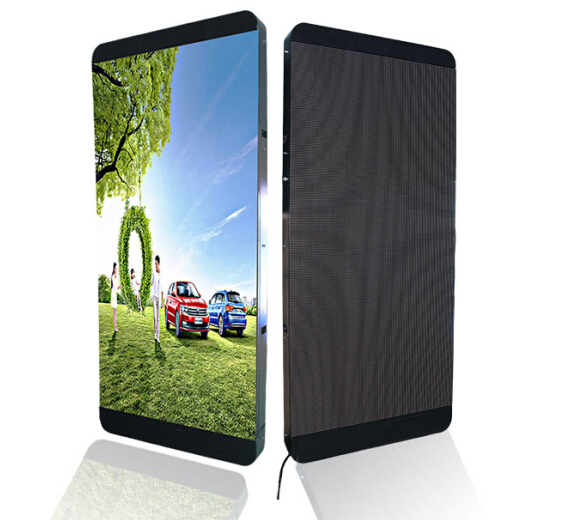

P3.076 P3.33 LED Display Pole Light 640×1280 LED Screen 640×1600
The 5G era will give birth to a huge emerging market; the application and operation management of urban new smart street furniture of lamps pole with led screen, which cannot be separated from the supporting role of city smart street pole LED screens display.
The smart pole light box LED screen advertising display is high density, висока яскравість, водонепроникний, easy installing, cluster control product. Suit for outdoor using on a city street, hanging on a pole, standing on the ground, mounting on the wall etc install solution.
mart pole led panel is for special application for streets, торговий центр, commercial center, exhibition, тощо. It install along with the pole, like street light pole. The most attractive advantage is shocked advertising effect when all the pole led display change image at the same time. Other is wireless 3G/4G connection and cloud control system.
Multi frame design

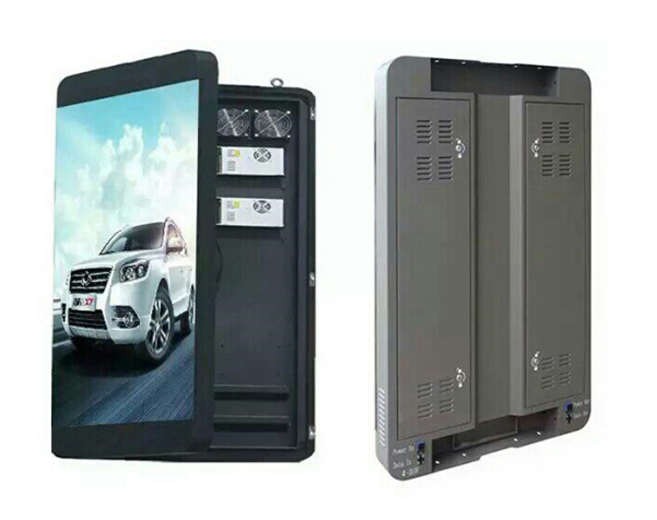

Pole led Billboard is uniform cabinet with standard size,P4mm,P5mm,P6.67,P8mm,P10mm standard led module Size:320мм х 160 мм. That means it must be convenient to carry and install &replacement. This pole led display support for back maintenance and front maintenance. You can open the frame from side or from back.
Крок пікселя: 2.5mm 2.976mm 3mm 3.33mm 3.91mm 4mm 4.81mm 5mm 6mm 6.67mm 8mm 10mm
Розмір шафи: 1600mm x 640mm / 1440mm x 640mm / 1280mm x 640mm / 960mm x 640mm / 1536mm x 576mm / 1280мм х 512 мм / 1152мм х 512 мм / 1000mm x 500mm
P3.076 P3.33 LED Display Pole Light 640×1280 LED Screen 640×1600
Пункт | Технічні параметри |
---|---|
Параметри світлодіодної лампи Nationstar Full black Gold Wire SMD | |
Назва виробу | Тип LED |
Червоний світлодіод | SMD 1921 / SMD 1415 |
Зелений світлодіод | SMD 1921 / SMD 1415 |
Синій світлодіод | SMD 1921 / SMD 1415 |
Специфікація модуля світлодіодного дисплея HTL | |
Крок пікселя | LED-P3.33mm |
Щільність пікселів | 90,000 пікселів/м2 |
Конфігурація LED | Nationstar SMD RGB 3в1 |
Пакетний режим | SMD1415 or SMD1921 |
Розмір модуля | 320mmx160mm and 160mmx160mm and 200mmx200mm |
Роздільна здатність модуля | 96 х 48 пікселів і 48 х 48 пікселів і 60 х 60 пікселів |
Модуль Pixles | 4608 пікселів і 2304 пікселів і 3600 пікселів |
Максимальне енергоспоживання | 50W and 40W and 45W |
Товщина модуля | 25мм |
Плата PCB | 4 Шар друкованої плати з 1,6 мм |
Водіння IC | MBI5253 або ICN2163 |
Тип диска | Постійний драйв |
Режим сканування методу водіння | Динамічний 1/12 Робочий постійний струм |
Тип інтерфейсу порту | HUB75 |
Вхідна напруга модуля | 5В постійного струму |
Яскравість балансу білого | 5500компакт-диск |
Маска модуля | Маска Pure Black - висококонтрастний екран |
Специфікація HTL LED Display Cabinet | |
Розмір шафи (Ш Х В Х Г) | 640mm x 1280mm x 125mm or 640mm x 1600mm x 125mm |
Постанова Кабміну (крапка) | 192 х 384 пікселів |
Модуль Quanity (шт) | 16шт |
Кабінет пікселів | 73728 пікселів |
Щільність пікселів | 90,000 пікселів/м2 |
Матеріали кабінету | Здам в оренду шафу з лиття під тиском алюмінію |
Вага шафи | 32кг на шафу |
Упаковка | Чохол для мух / wooden box |
Специфікація повного світлодіодного дисплея HTL | |
Яскравість екрана | 5500кд/м2 |
Метод водіння | Постійний струм |
Найкраща відстань перегляду | 3m – 80m |
Макс. Споживання енергії | 800Вт/м2 |
Середнє споживання електроенергії | 400Вт/м2 |
Рівень сірого | 16введення бітів, 4096 рівнях |
Колір дисплея | 256М |
Частота кадрів | 60Гц |
Частота оновлення | 3840Гц – 6420 Гц |
Безперебійний робочий час | 72 години |
Тривалість експлуатації екрану | 100,000 години |
MTBF | 30,000 години |
Швидкість дискретних сліпих зон | <1/10000 |
Безперервна частота сліпих зон | Жодного |
Швидкість сліпих зон | <1/10000 |
Водонепроникний рівень | IP65 |
Захисна шкала | Для зовнішнього та внутрішнього використання, водонепроникний |
Звичайність екрану | <±1 мм |
Режим живлення | AC220±10% 50Hz/AC110±10% 60Hz |
Температура середовища | температура:-20 Цельсій ~ +60 Цельсія |
Вологість | Вологість:10%~90% відносної вологості |
Режим керування | Синхронний дисплей з керуванням ПК через DVI |
Система контролю | Світлодіод Linsn, Novastar LED, Кольоровий світлодіод або як вам потрібно |
Показати вміст | HDMI ,DVI, VGA, відео, DVD, VCD, телевізор, картина, мультфільм, графіка, тексти.та ін. |
Інтерфейс | Стандартний Ethernet |
Відстань передачі | Багатомодове волокно <500м, одномодове волокно <30км,інтернет кабель <100м |
Бренд блоку живлення | G-енергія, MeanWell, Chuanglian або як вам потрібно |
Сертифікат | CE, RoHS, FCC, УЛ, ЕМС |
