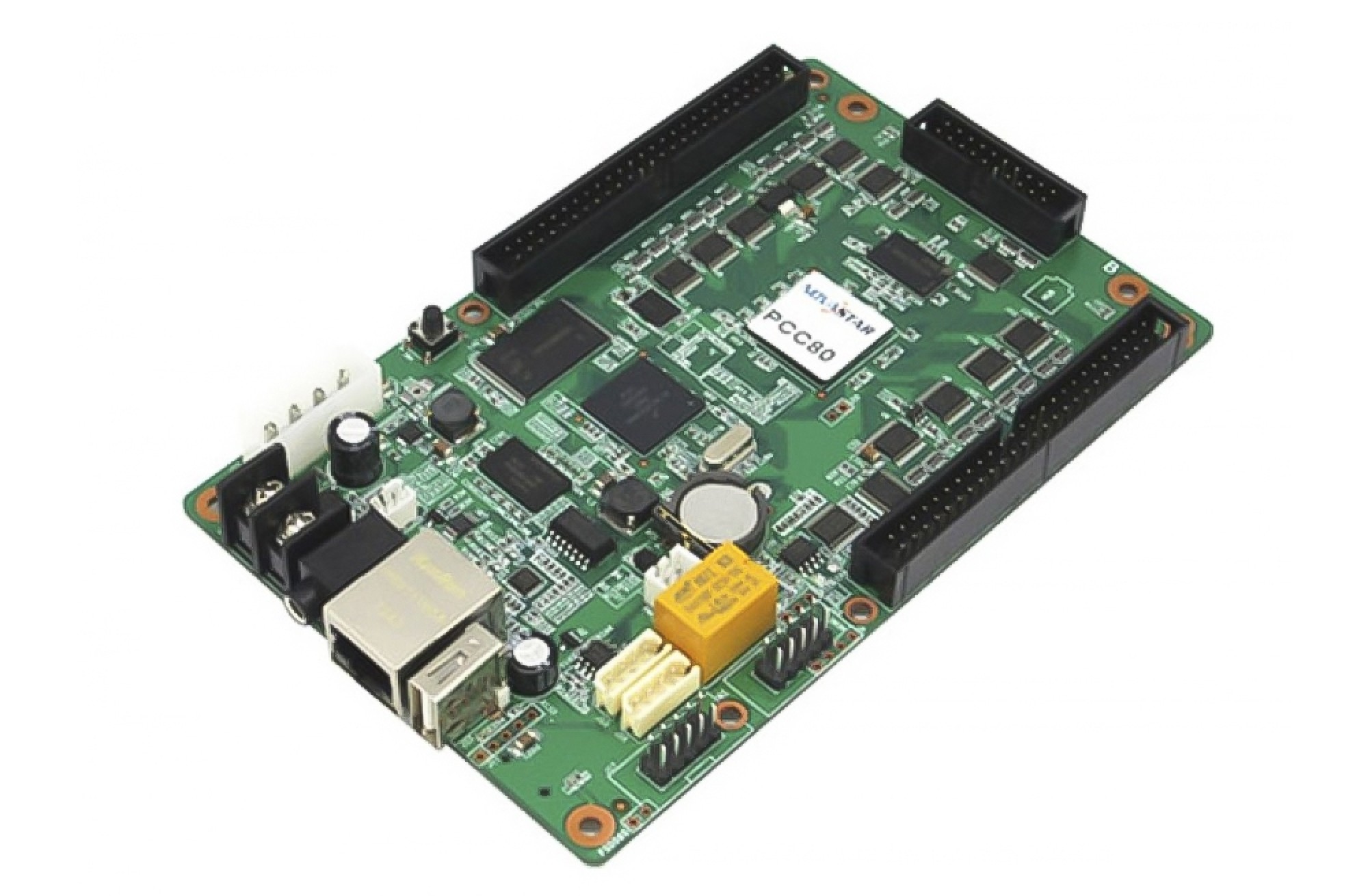

NovaStar PCC80 Full Color Asynchronous LED Display Card

NovaStar PCC80 Full Color Asynchronous LED Display Card.

Generator Introduction:

1) Maximum Resolution: 640×128;

2) Cascade Levels with Ethernet Cable:

Cascading no supported;

3) Drive IC supported: MBI5041/5042/5045, MY9262, MY9221, MBI505X, MBI515X,

MY9266/9268/9269, SUM2030, TLC59282/ 59283,

MY9868, SUM2016/ 2017, MBI5020/ 5024/ 5034/ 5035

and many more;

4) Media Format: Видео, расм, матн, обу ҳаво, соат,

countdown, Калом, Excel, Txt etc.

5) Формати видео: MPEG4, H.264, MV, VC1, MPEG1

6) LED Displays Supported: Full color LED display

from static to 1/32 скан, with real pixel.

7) Gray scale Levels: 65536 максимум, configurable

8) Меъёри навсозӣ: 6000Hz maximum for static

Намоиши LED, 3840Hz for scanning LED display

9) Integrated Power Switch Management: 1

10) PWM Levels For Brightness Adjustment: 256

11) Auto Brightness Adjustment: Дастгир карда шудааст

12) LED Status Detection: Open/ Short-Circuit checking (with MBI5034/ 5036/ 5039/ 5040，DM13H)

13) Brightness Loss for Calibration: 5%~8%

14) Integrated Audio Output: Дастгир карда шудааст

15) Ҳарорати корӣ: -20oC ~ 80oC

16) Power Supply Voltage: 4V ~ 5V

Our quality and reliable outdoor full color led display are considered best in the industry because it is one of the most important assets for every customer. If you also want to join the league of our proud customers then grab the chance and order NOVASTAR PCC80 Full Color Asynchronous LED Display Card because it comes with unique features like Cascade Levels with Ethernet Cable (Cascading not supported), Maximum Resolution up to 640×128; Media Format: Видео, расм, матн, обу ҳаво, соат, countdown, Калом, Excel, Txt etc., Формати видео: MPEG4, H.264, MV, VC1, MPEG1, Integrated Power Switch Management, Ҳарорати корӣ: -20oC ~ 80oC and many more. We leave no chance to dissatisfy your need.
