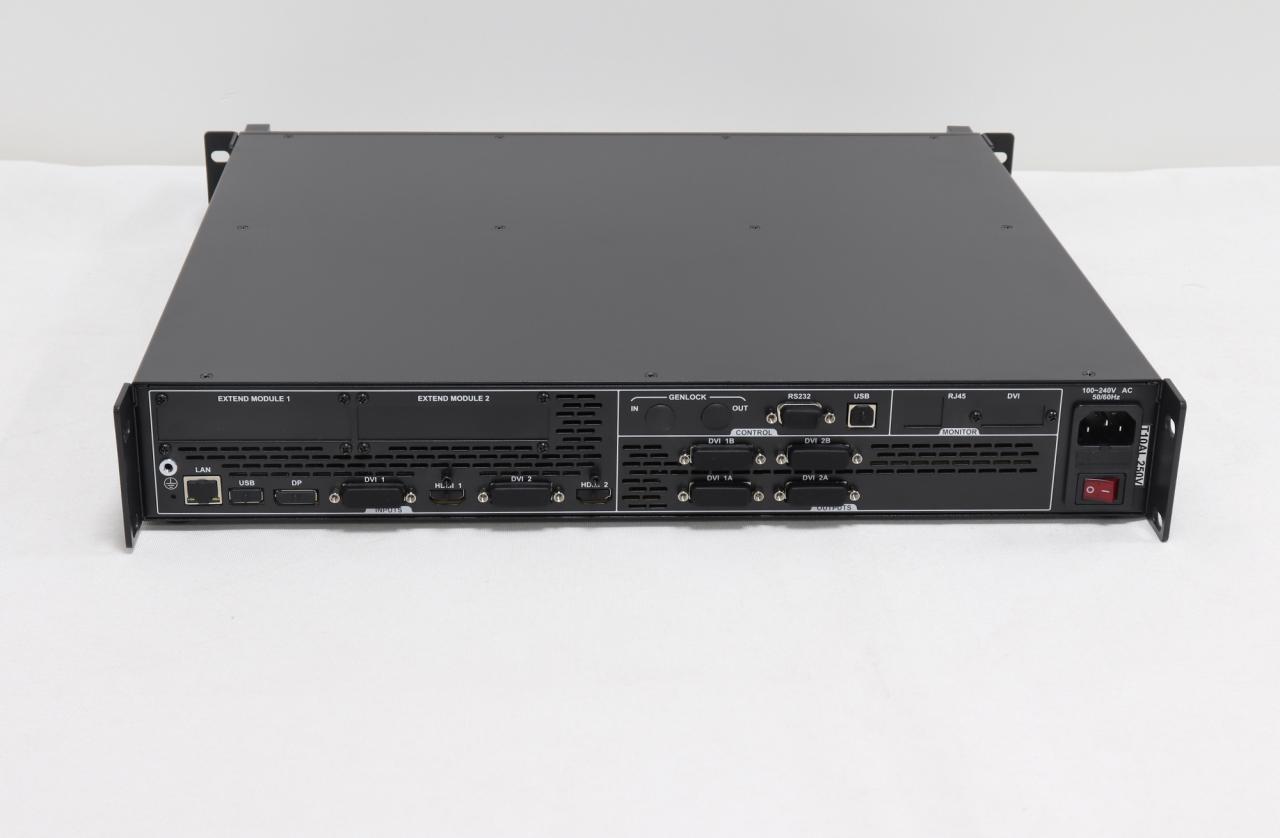

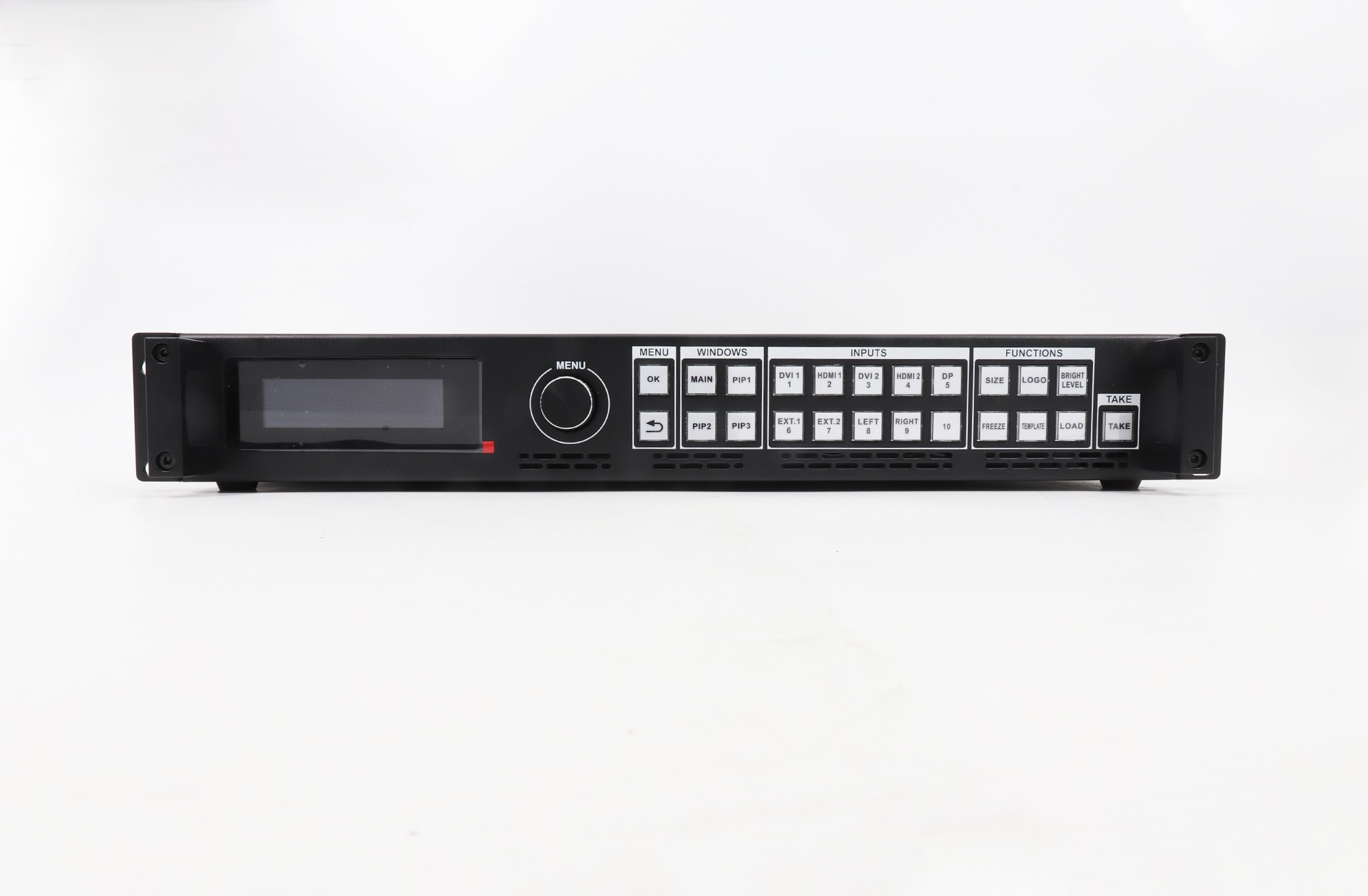

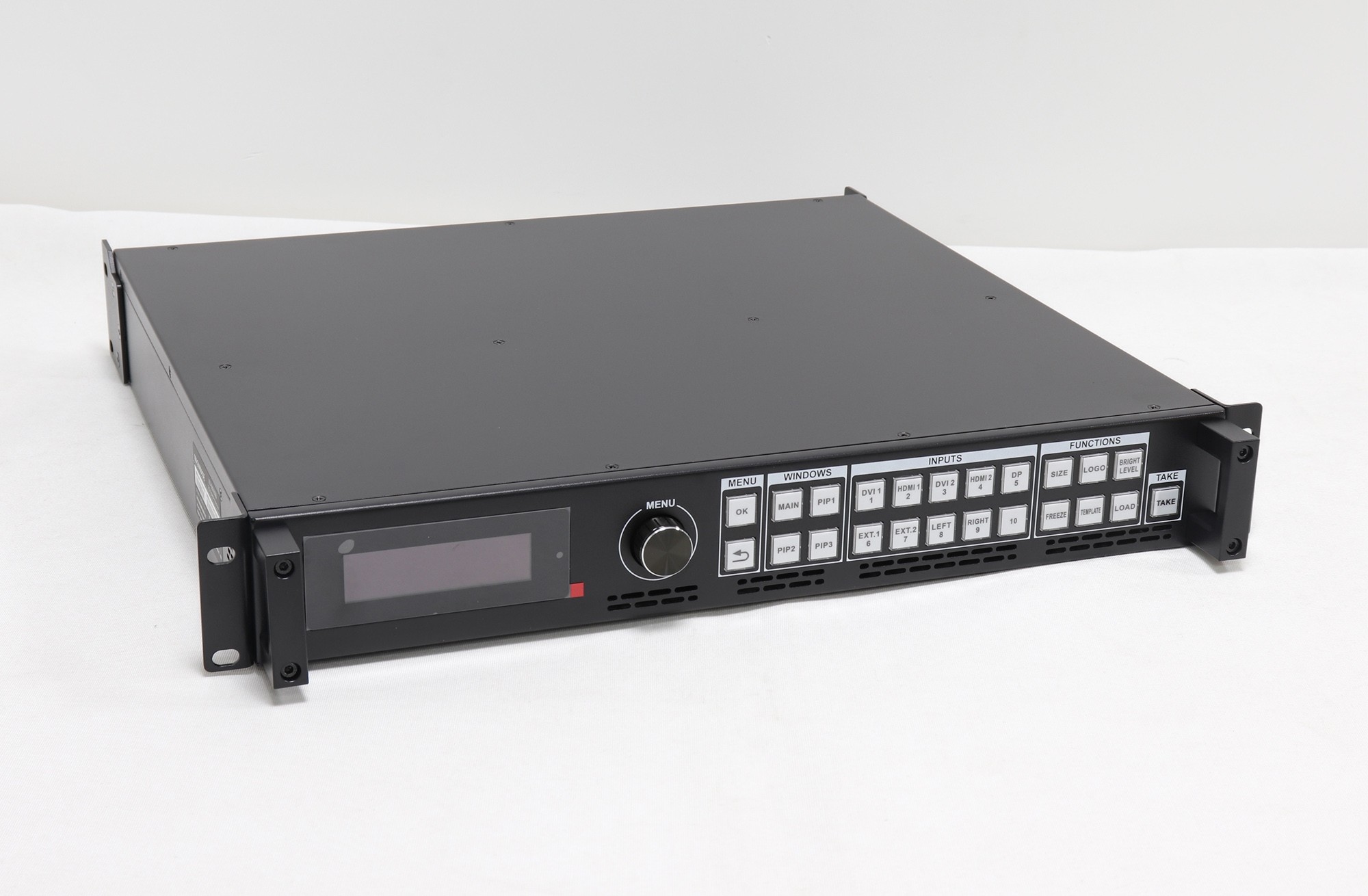

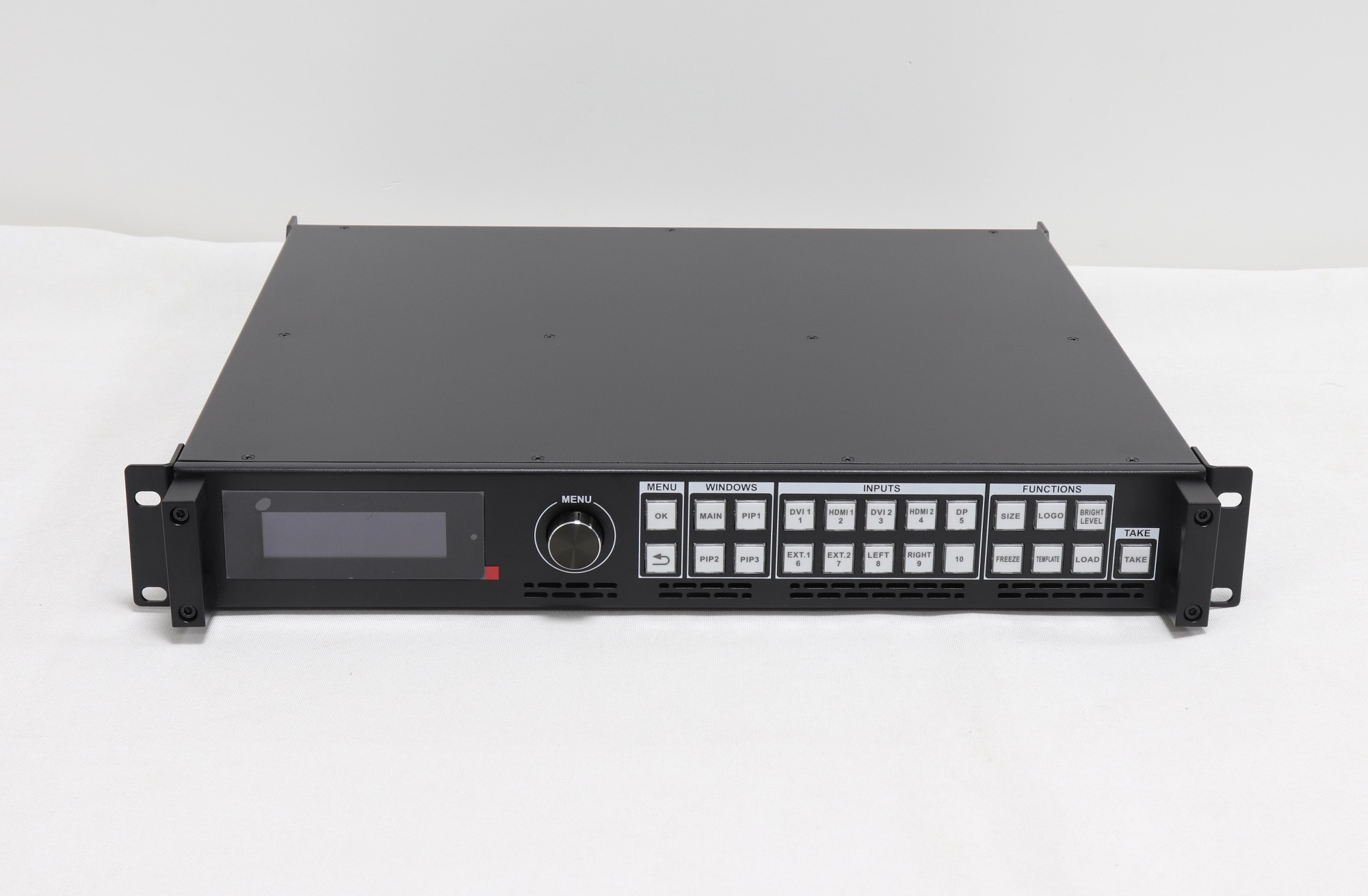

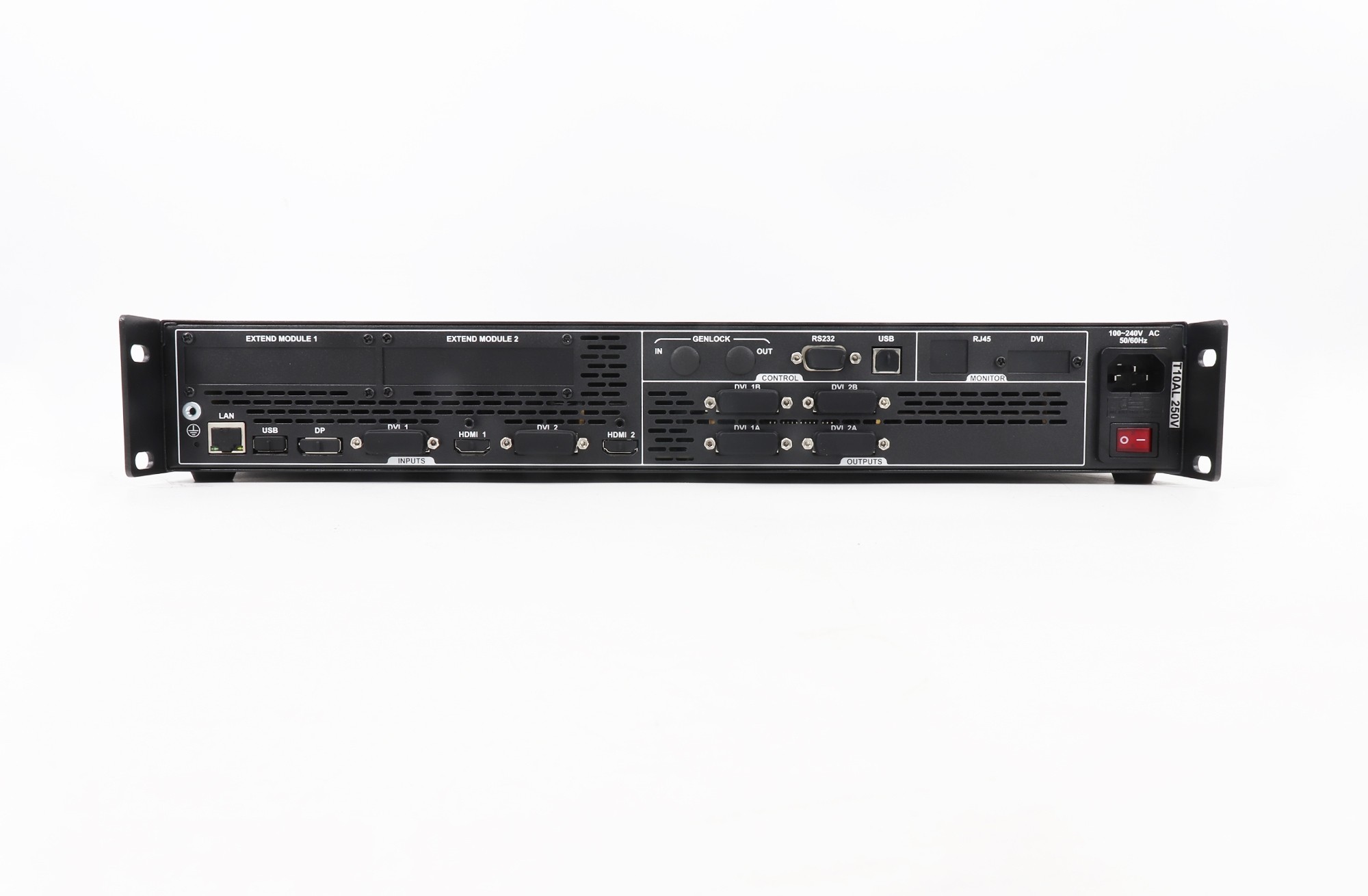

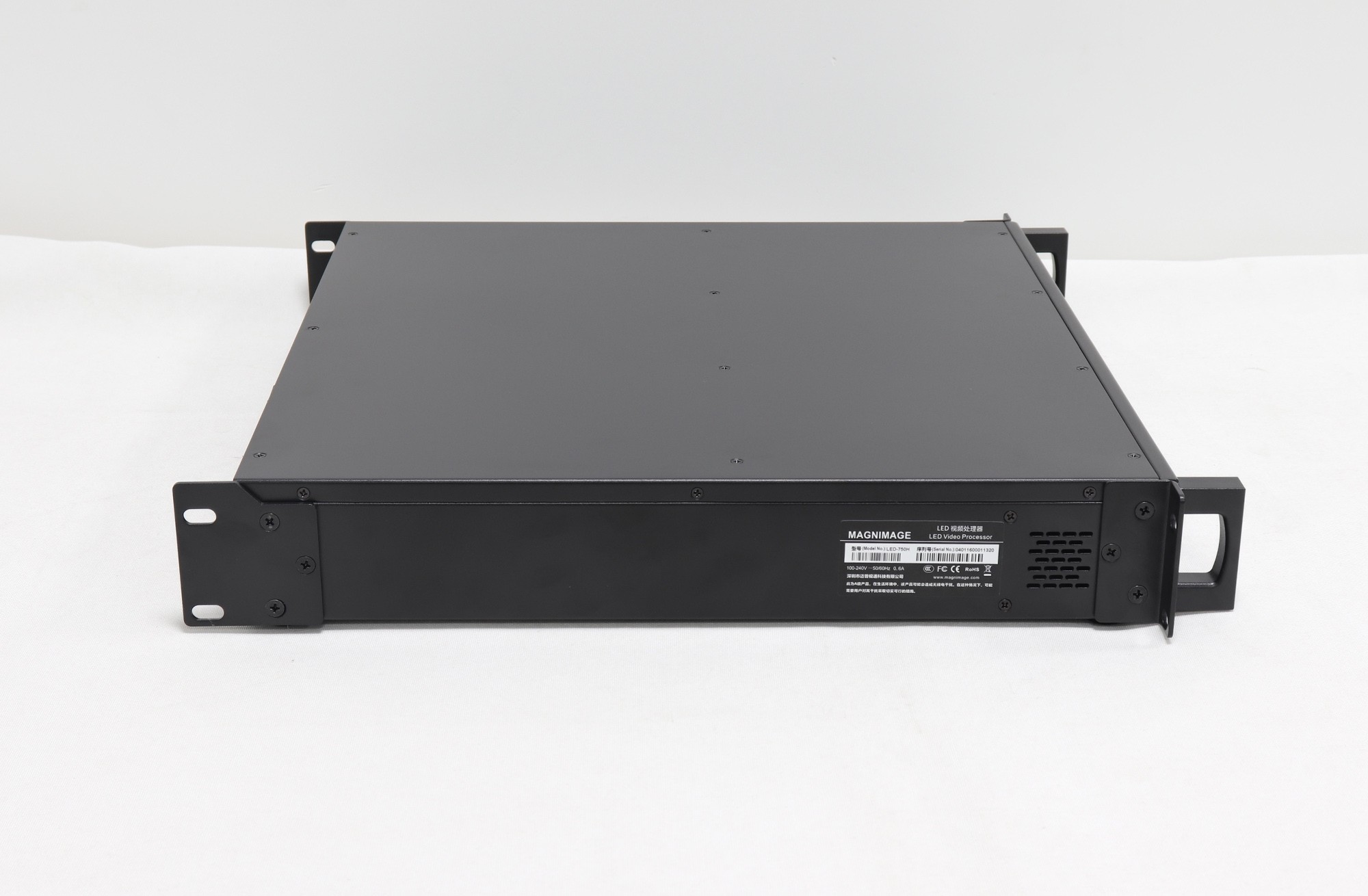

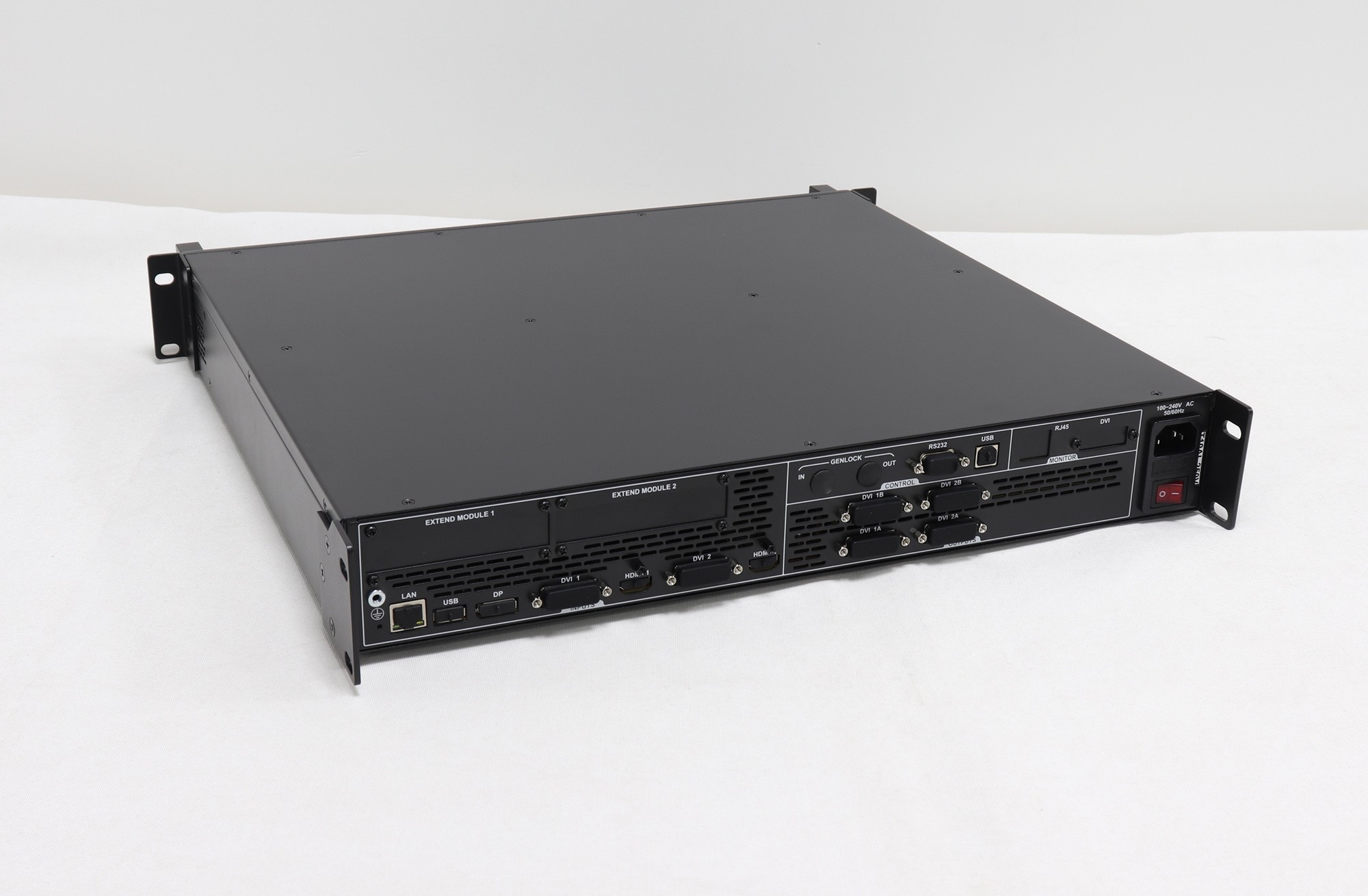

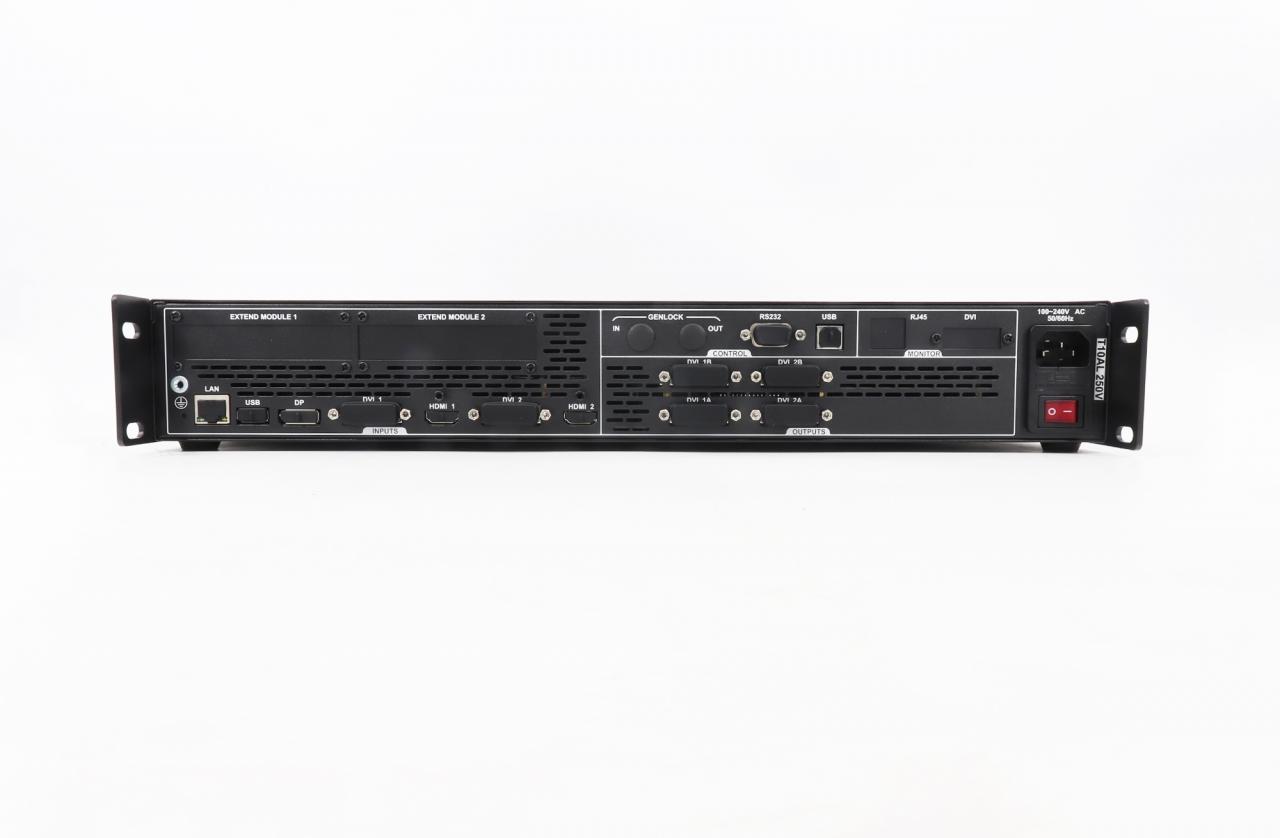

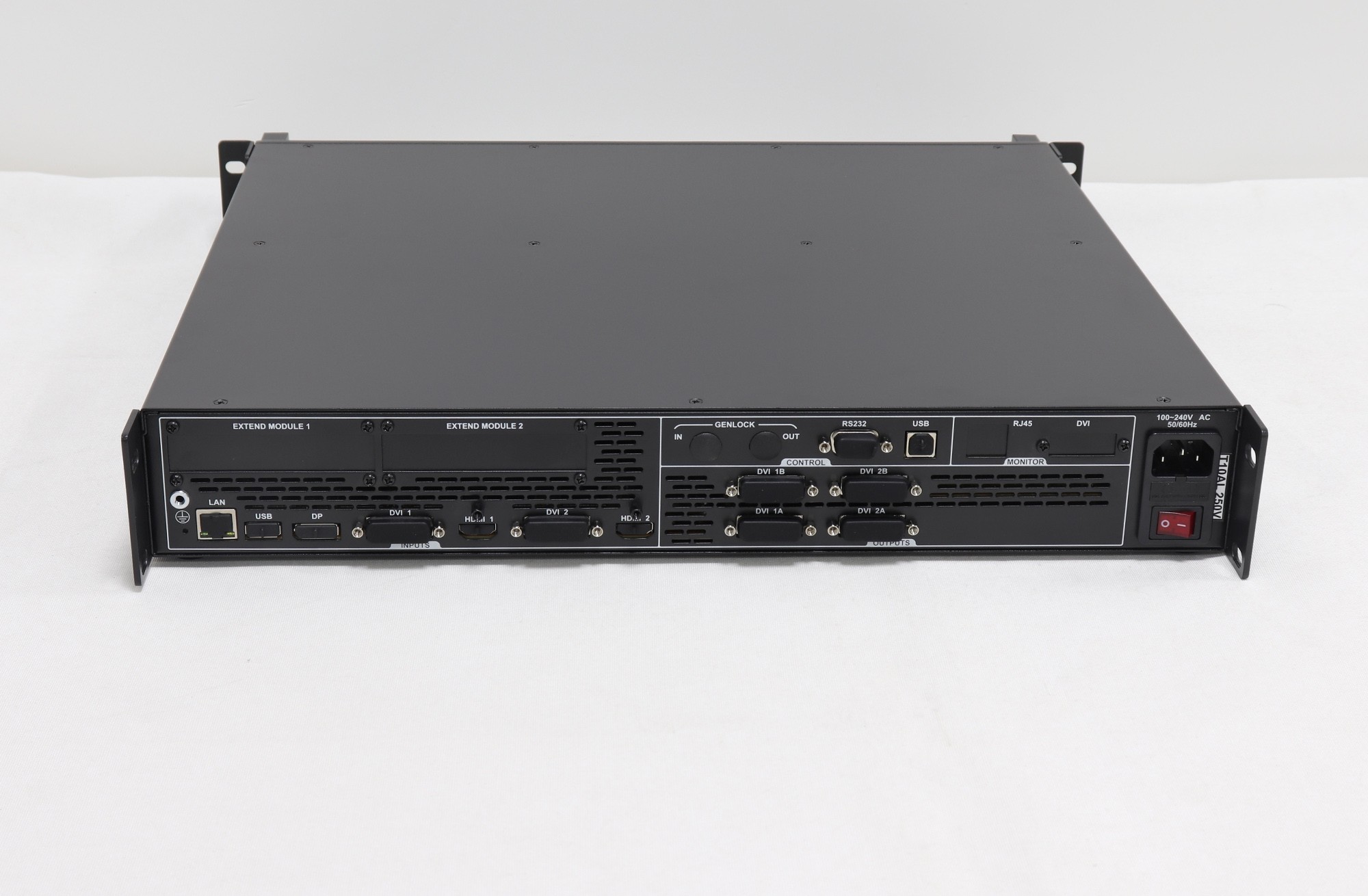

Magnimage LED-750H LED Wall Video Processor

Name: Magnimage LED-750H LED Wall Video Processor
SKU: Magnimage-LED-750H
Price: 800.00 USD
Availability: InStock

Оригинална цена је била: $812.00.Тренутна цена је: $800.00.

-1%

Buy led display panel systems from China supplier.

2 Screens Splicing in 1 Processor Single Machine Supports 2 Screens Splicing 2 independent outputs Multiple cascade 4 Layers Output Preview Switching

Please contact us if you need extended input modules.

Magnimage LED-750H LED Wall Video Processor Features:

Parameter of Magnimage LED-750H LED Wall Video Processor:

Input Indicators
Порт	Количина	Резолуција
ДВИ	2	1920×1080/60Hz and EDID
DP	1	Displayport 1.1,3840×1080/60Hz 3840×2160/30Hz and EDID
ХДМИ	2	1920×1080/60Hz and EDID
Extend Input Indication
Порт	Количина	Резолуција
ДВИ	ДВИ×1	1920×1080/60Hz and EDID
ВГА	VGA×1	VESA standard
СДИ	СДИ×1	480i/60Hz 576i/50Hz 720p/60Hz 1080i/60Hz/50Hz
СДИ	СДИ×1	1080p/60Hz/50Hz(3G SDI)
DP 1.1	DP×1、ДВИ×1	3840×1080/60Hz 3840×2160/30Hz and EDID
ХДМИ 1.4	ХДМИ×1、ДВИ×1	3840×1080/60 840×2160/30Hz and EDID
You can extend 2 x 2K inputs (ВГА, ДВИ, СДИ) или 1 x 4K input (DP1.1, ХДМИ1.4)

Output Indication
Порт	Количина	Resolution（single DVI output
ДВИ	2×2	1024×768/60Hz 1280×1024/60Hz 1024×768/120Hz
		1280×720/60Hz 1440×900/60Hz 1600×1200/60Hz
		1600×1200/60Hz- Reduced 1680×1050/60Hz
		1920×1080/60Hz 1920×1080/50Hz 2176×1168/60Hz
		1920×1200/60Hz 1936×1280/60Hz
		2048×1152/60Hz 1024×1280/60Hz 1536×1536/60Hz
		1280×720/59.94Hz 1920×1080/59.94Hz
		The customize output resolutionis 3966 for maximum width or 3541
		for maximum height.

Console Specification
Напајање	100-240
Consumption	55В
Радна температура	0~45
Product Dimension	482.6×452×66.75mm
Нето тежина	2.6Кг
