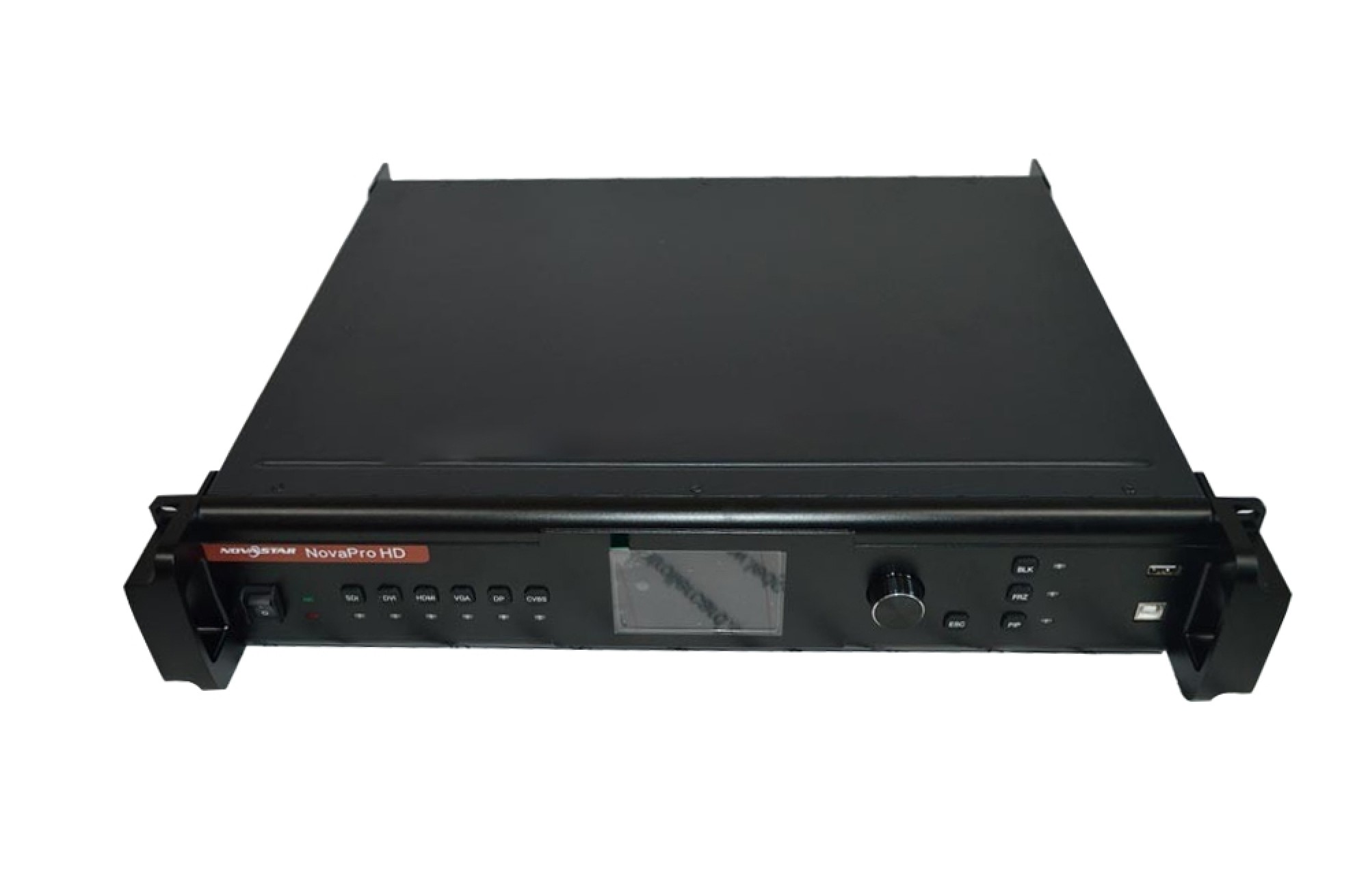

Novastar NovaPro HD All-in-1 Video Processor Controller NovaPro UHD – NovaStar Tech Specification:
1) Product type: Video Processor
2) Zooming: Podpora
3) Povezovanje: Podpora
4) Picture in picture: Two video source
5) Special effects when switching video source：podporo
6) GenLock：Podpora
7) User defined EDID: Podpora
8) Output resolution: 1920×1200,2048×1152,2560×960(width and height can be specially defined by customers)

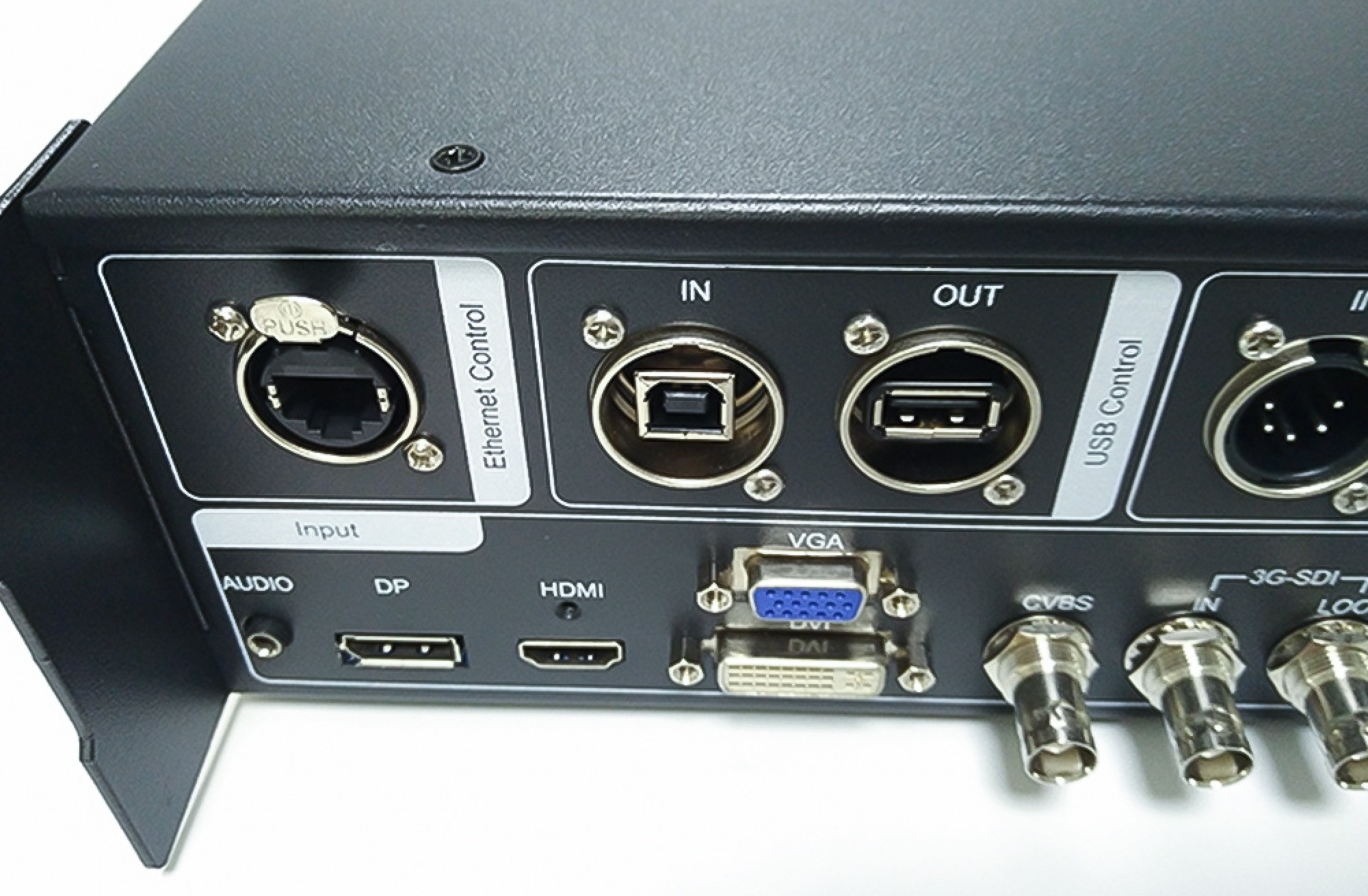

9) Video input interface: HDMI,DVI,SDI,DP,VGA,CVBS

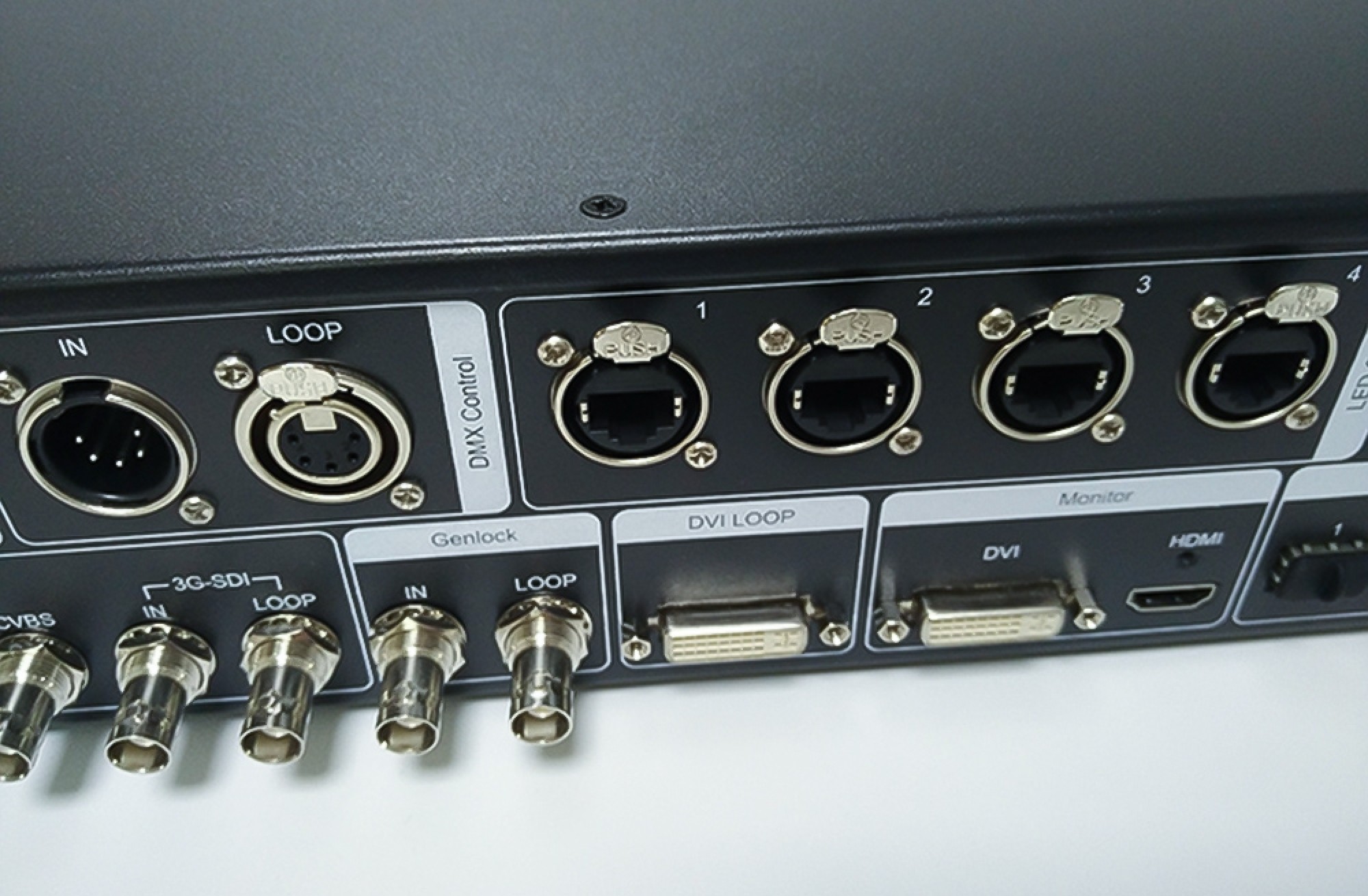

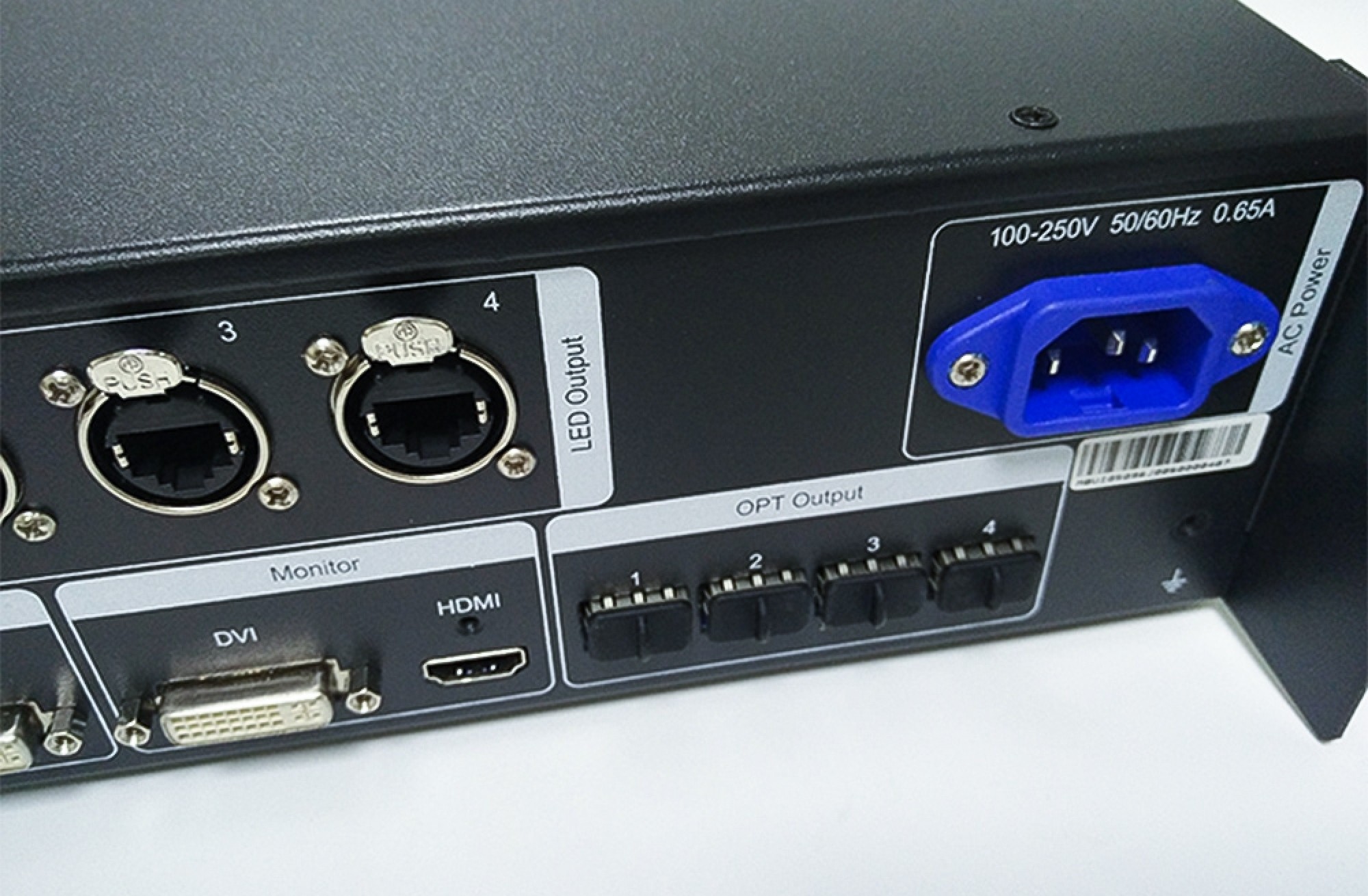

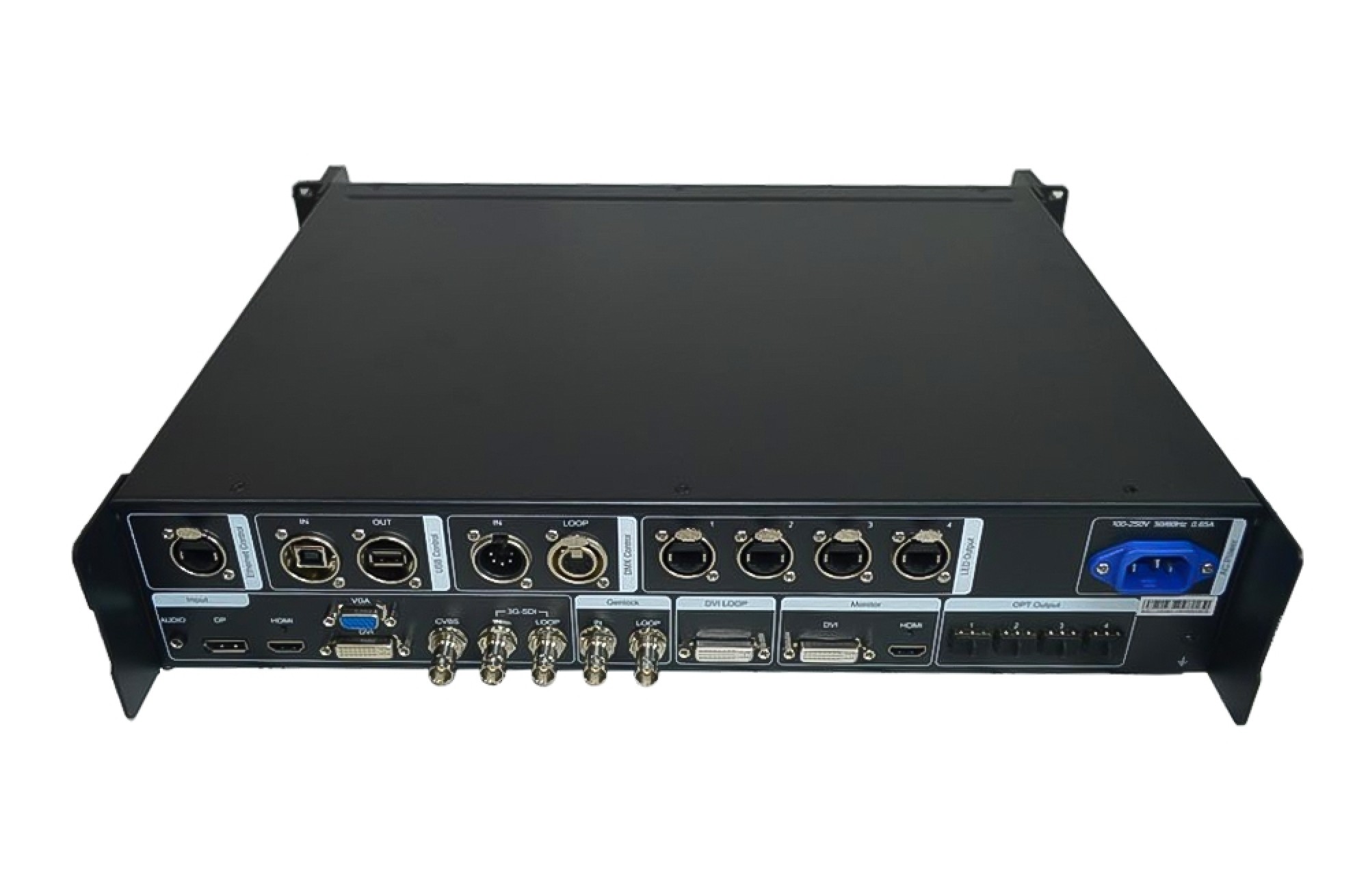

10) Izhodni vmesnik: Four internet accesses, four fiber Interfaces, one DVI, one HDMI monitoring interface
| Output index | ||
| Pristanišče | Znesek | Specifikacija ločljivosti |
| DVI input looping out（DVILOOP??/td> | 1 | Consistent with DVI input
Support HDCP looping out |
| DVI | 2 | 1280×1024/60Hz 1440×900/60Hz 1680×1050/60Hz 1600×1200/60Hz 1600×1200/60Hz ??Reduced 1920×1080/60Hz/50Hz 2560×816/60Hz 2048×640/60Hz 1920×1200/60Hz 2304×1152/60Hz 2048×1152/60Hz 1024×1280/60Hz 1536×1536/60Hz Uporabniško določena izhodna ločljivost (optimizacija pasovne širine) Vodoravna ločljivost: maksimum 3840 slikovnih pik Vertical resolution: maksimum 1920 slikovnih pik |
| HDMI | 1 | |
| SDI input looping out （SDILOOP??/td> | 1 | 480jaz, 576jaz, 720str, 1080i/str??G SDI??/td> |
| Specifikacija celotnega stroja | |
| Vhodna moč | 100V-240V |
| Skupna poraba energije | 30W |
| Delovna temperatura | -20~60 |
| Utež | 6Kg |
Novastar NovaPro HD All-in-1 Video Processor Controller NovaPro UHD – NovaStar Tech Features:
1) NOVASTAR NovaPro HD is a professional LED display processor. Poleg funkcije nadzora zaslona, it also features in powerful front
end processing, tako da zunanji skalar ni več potreben. Z integriranimi profesionalnimi vmesniki, NovaPro HD meets the requirements of
broadcast industry, v kakovosti slike in nadzoru.

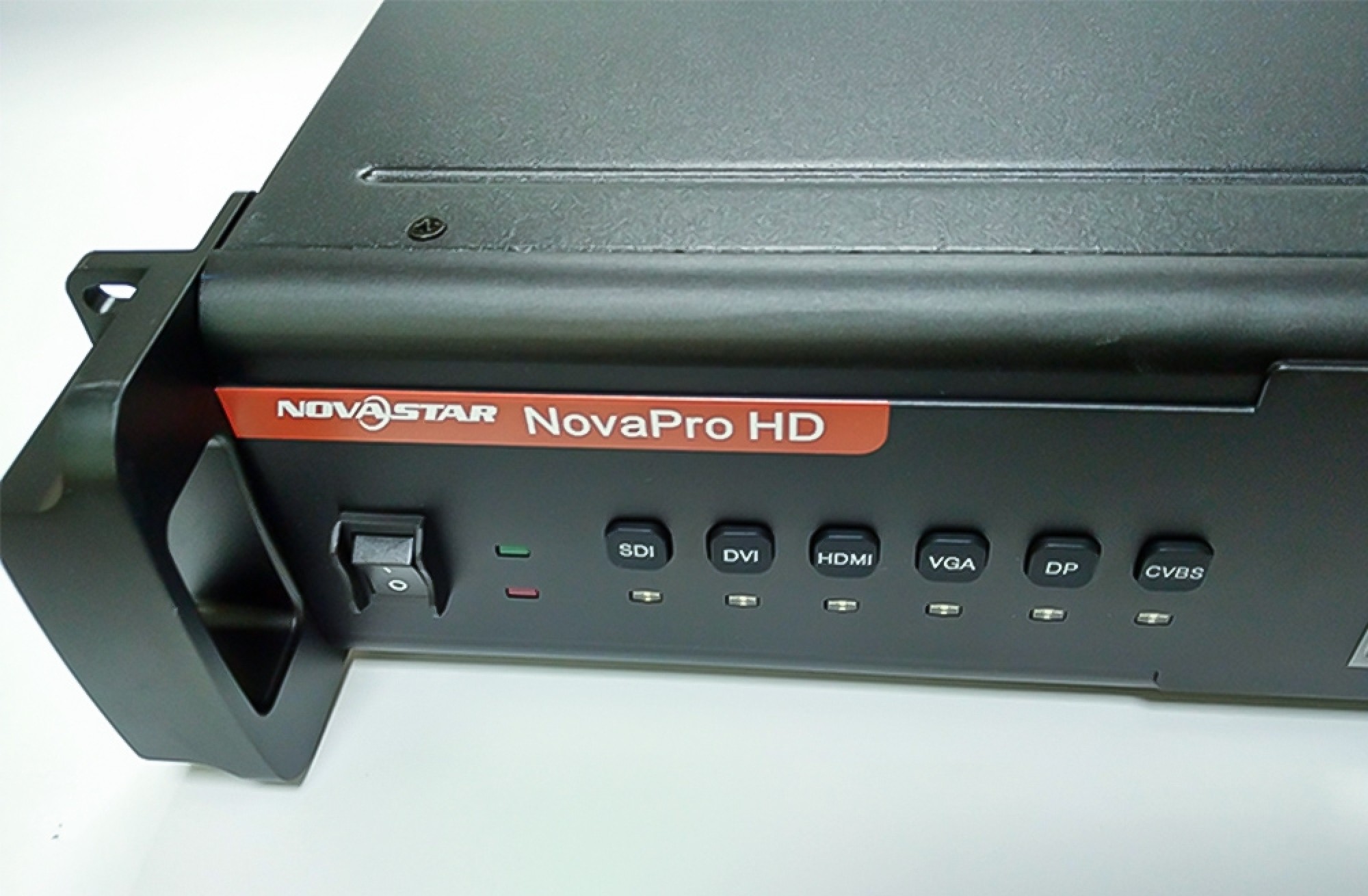

2)The inputs of NOVASTAR NovaPro HD include CVBS, VGA, SDI, DVI, HDMI in DP. They support input resolution up to
Najvišja ura slikovnih pik je 165MHz. Output bandwidth is up to 4GBit. Advanced de-
interlacing motion adaptive processing technology is adopted so that images are clear and fine. In z HDMI, the gray scale depth
can be up to 12bits.
3) Vsak vhod je mogoče v celoti konfigurirati s kontrastom, svetlost, odtenek, nasičenost, in pridobitev RGB. Inputs can be scaled up or down to fit
the LED display resolution.

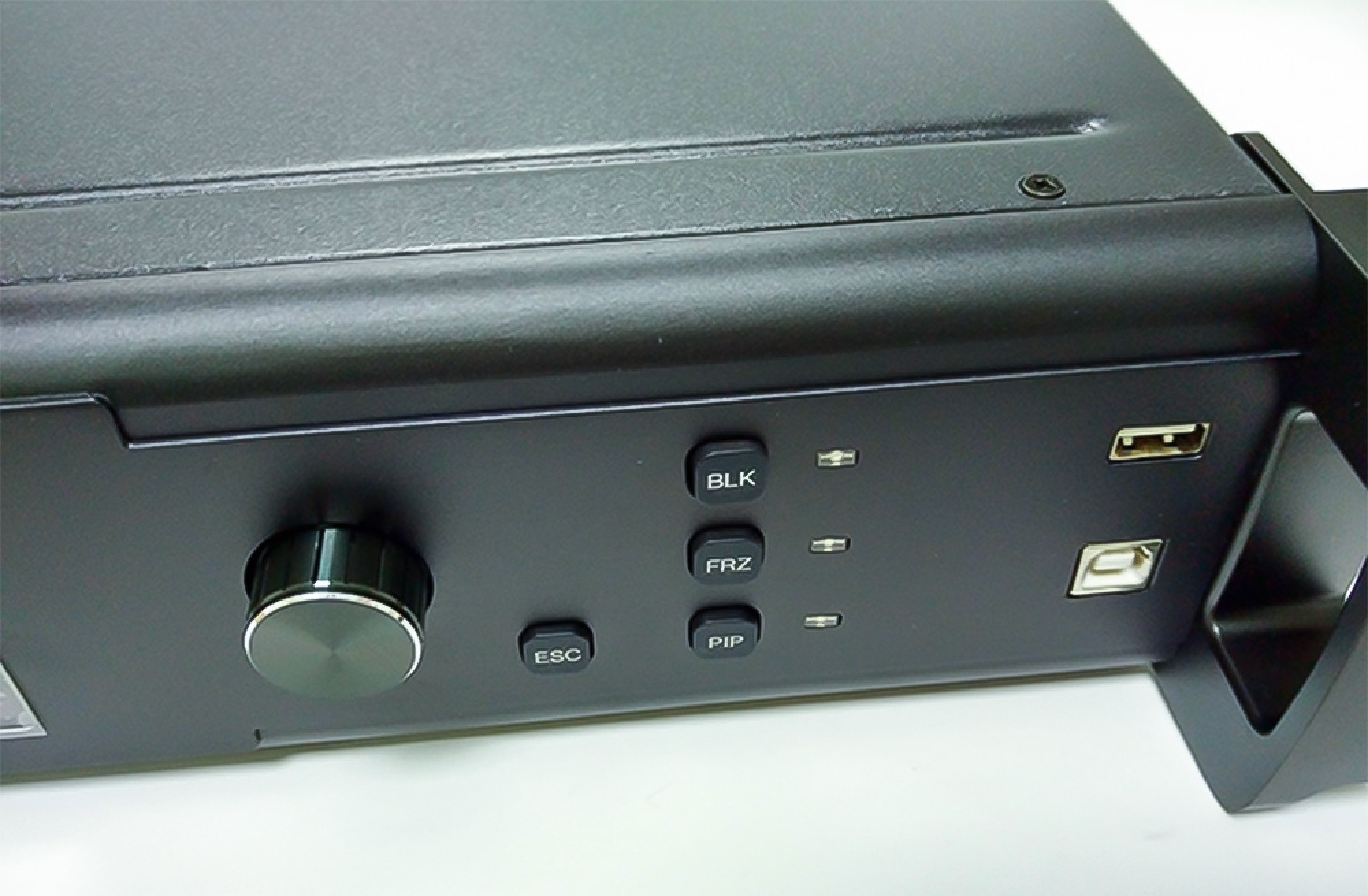

4) Računalniška programska oprema za konfiguracijo sistema ni potrebna. Sistem je mogoče konfigurirati z enim kolescem in enim gumbom. ]Vse je mogoče narediti samo s prsti.
5)Temu smo rekli Touch Track! Sistem lahko konfigurirate tudi z brskalniki. To vam daje možnost uporabe oddaljenega računalnika
(Windows ali Mac ali Linux), ploščico ali celo pametni telefon za konfiguracijo. Predogled v realnem času pomaga pri nastavitvi sistema in potrdi status vira.
6) NOVASTAR NovaPro HD video processor has DMX512 and GenLock interface. Profesionalni nadzor in sinhronizacija sta pripravljena.
Optical fiber outputs enable the confidentlong-distance data transmission.
7) NOVASTAR NovaPro HD video processor is the flagship product of our new generation controllers, powerful in processing,
professional in control, and friendly in userinterface. Having a display to work has never been as easier and more enjoyable as with
