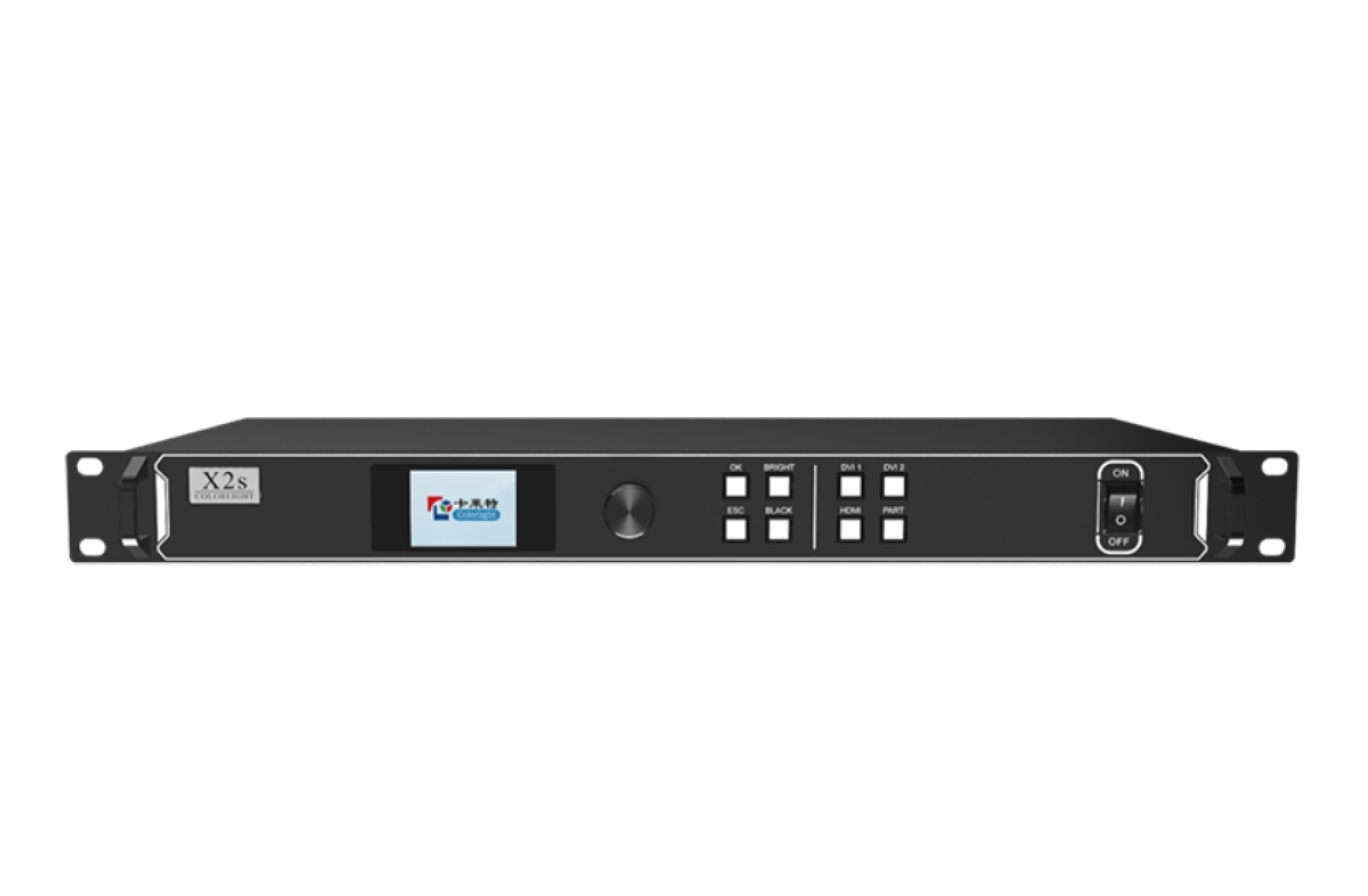

Colorlight X2s Colorlight Professional LED Display Panel Controller Overview:
X2s professional master is a professional LED display control device, with powerful video signal receiving and processing capabilities, and can receive high-definition digital signals of 1920*1200 slikovnih pik; it supports HDMI and DVI high-definition digital interfaces, and seamless switching between multiple signals ; Support arbitrary scaling and cropping of video sources.
X2s has 2 Gigabit Ethernet port outputs, and a single machine can support LED displays with a maximum width of 4096 slikovnih pik in največ 2560 slikovnih pik.
Colorlight X2s Colorlight Professional LED Display Panel Controller Features:
·X2s has 2 types of video input interfaces, including 1 HDMI and 2 DVI;
· Vhodna ločljivost: do 1920* supports arbitrary setting of resolution;
·Video output load capacity: 1.31 milijonov slikovnih pik, do 4096 points wide, do 2560 points;
·Support arbitrary switching, scaling and cropping of video sources;
·Support screen shift;
·Dual USB2.0 high-speed communication interface for arbitrary cascade connection between computer debugging and main control;
·Support brightness and color temperature adjustment;
·Support low brightness and high gray;
· Support HDCP1.1;
·Support the full range of Colorlight receiving cards, multi-function cards and optical fiber transceivers.

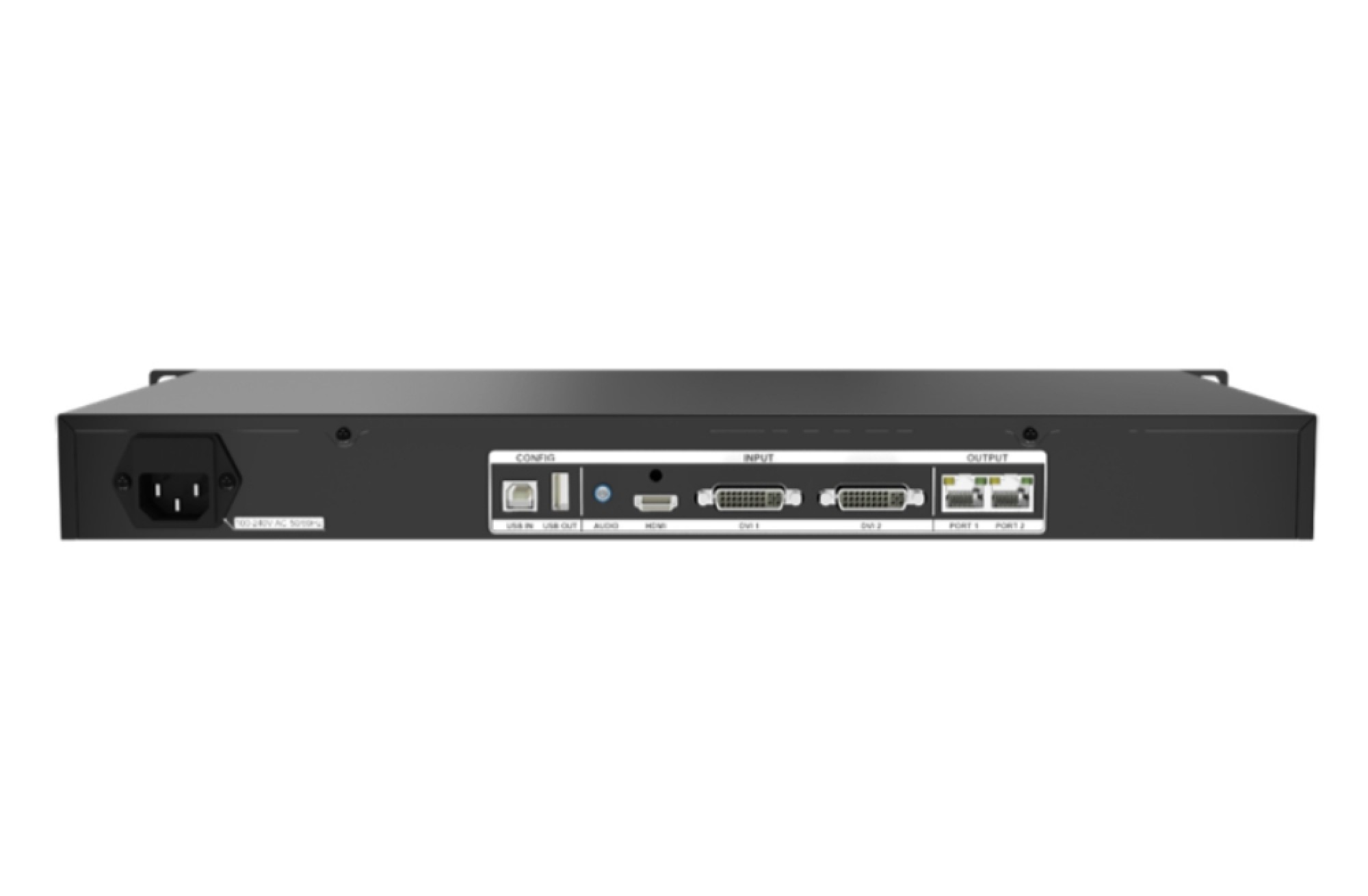

Colorlight X2s Colorlight Professional LED Display Panel Controller Parameter:
| Vhodni vmesnik | |
| HDMI | HDMI |
| DVI 1 | DVI 1 |
| DVI 2 | DVI 2 |
| Izhodni vmesnik | |
| Vrata 1/2 | RJ45?? Gigabit Ethernet vrata |
| Nadzorni vmesnik | |
| USB_OUT | USB Used for cascading between x2s |
| USB_IN | USB vhod, connected to PC, used to debug parameters |
| Input index | ||
| Vmesnik | Qty | Resolucija |
| HDMI | 1 | HDMI 1.4 standard，Podpora 1920*，Podpira HDCP |
| DVI 1 | 1 | DVI 1.0 standard，Podpora 1920*，Podpira HDCP |
| DVI 2 | 1 | DVI 1.0 standard，Podpora 1920*1200??0Hz，Podpira HDCP |
| Specifikacija | |
| Velikost | 1U standard |
| Vhodna napetost | AC100~240V |
| Nazivna poraba energije | 8W |
| Working Temperture | -20~60 |
