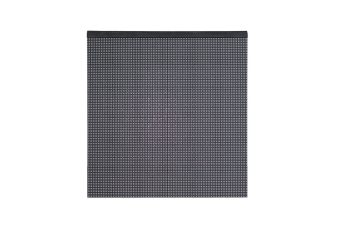

Outdoor DIP570 P6.67 LED Display Module 160×320 LED Panel.
Outdoor P6.67mm DIP LED Display Module Size is 320mmx160mm With 48×24 dots.
Attention:
- We recommend that you buy the same batch led modules at once for the Same LED Display.Because different batches of led modules have different brightness and display colors,even different config files.
- If you want to build led screen,please buy enough LED Modules and Spare Parts.
- Tariffs or Duties at the destination not included.If you have questions about Importation to your country,please contact us online sales.
Outdoor DIP570 P6.67 LED Display Module 160×320 LED Panel Main Specifications:
| Item | Technical Parameters |
| Epistar DIP570 LED Lamp Parameters | |
| Item Name | LED Type |
| Red LED | DIP 570 |
| Green LED | DIP 570 |
| Blue LED | DIP 570 |
| HTL LED Display Module Specification | |
| Pixel Pitch | HTL LED-P6.67mm |
| Pixels Density | 22,545 pixels/m2 |
| LED Configuration | Epistar DIP RGB 3in1 |
| LED Package Mode | DIP570 |
| Module Size | 320mm X 160mm |
| Module Resolution | 48dots(H)*24dots(V) |
| Module Pixles | 2304 pixels |
| Max Power Consumpion | 50W |
| Module Thickness | 28mm |
| PCB Board | 4 Layer PCB Board With 1.6mm |
| Driving IC | MBI5153 or ICN2153 |
| Drive Type | Constant drive |
| Driving Method Scan Mode | Dynamic 1/10 Duty constant current |
| Port Interface Type | HUB75 |
| Module Input Voltage | DC 5V |
| Brightness of White Balance | 50,00cd/m2 |
| Module Mask | Pure Black mask-high contrast screen |
| HTL LED Display Cabinet Specification | |
| Cabinet Dimension | 960mm x 960mm x 75mm |
| Module Quantity | 18pcs |
| Cabinet Resolution | 144*144 |
| Cabinet Weight | 24kg per cabinet |
| Cabinet Material | Die Casting Aluminum or steel Iron |
| Best viewing distance | 6M??0M |
| Best viewing angle | 160°(H) 160°(V) |
| Average Power consumption | 450W/m2 |
| Max.Power consumption | 700W/m2 |
| Frame Frequency | 60Hz |
| Refresh frequency | 3840Hz – 6420HZ |
| Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz |
| Temperature | storage:-35℃～+85 |
| working:-20℃～+50 | |
| Humidity | 10%-95% |
| IP Grade | IP65 |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors |
| MTBF | 5,000hours |
| Screen Lifespan | 100,000 hours |
| Screen Plainness | ＜1mm |
| Blind Spot Rate | 0.0001 |
| CPU | Pentium4 or above |
| Operation system | WINDOWS 8/10/IOS/NT/XP |
| Control method | Synchronous display with control PC by DVI |
| Control System | Linsn LED, Novastar LED, Colorlight LED or as you required |
| Display Content | HDMI , VGA, DVI, Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
| Interface | Standard Ethernet |
| Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet cable |
| Certificate | CE, RoHS, FCC, UL, EMC |
| Application | Outdoor, Indoor Rental or Fixed installation Purpose |
High Quality LEDs:
High-Quality RGB 3IN1 LED Display Module are equipped with data cables and power cables and 2 Years Warranty, All Outdoor LED panels with high brightness and color uniformity to ensure the LED display has excellent visual performance.
72+ Hours Aging
72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) to improve the reliability of the outdoor LED display panels.
