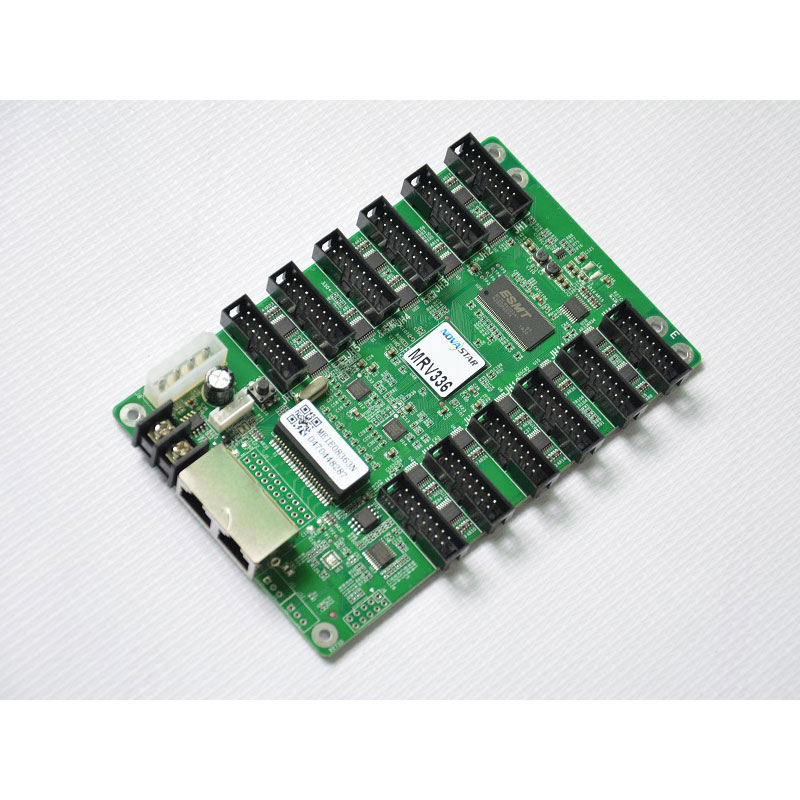

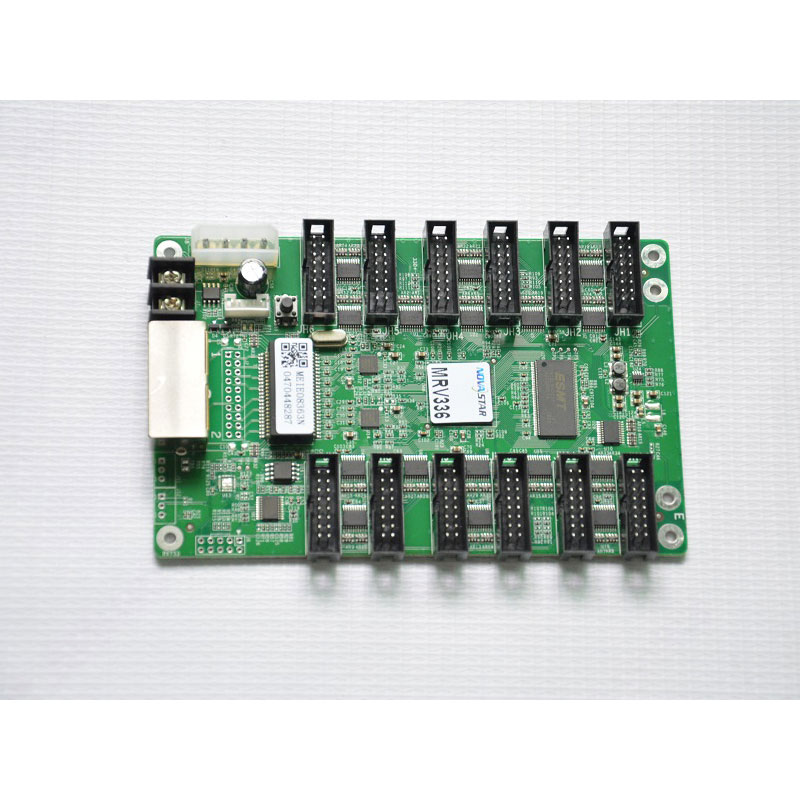

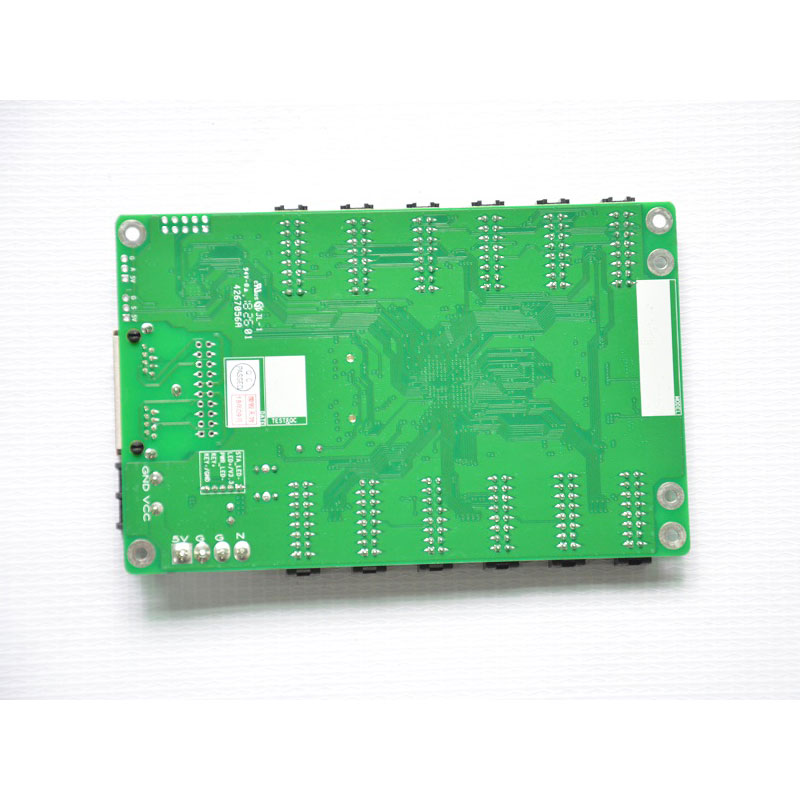

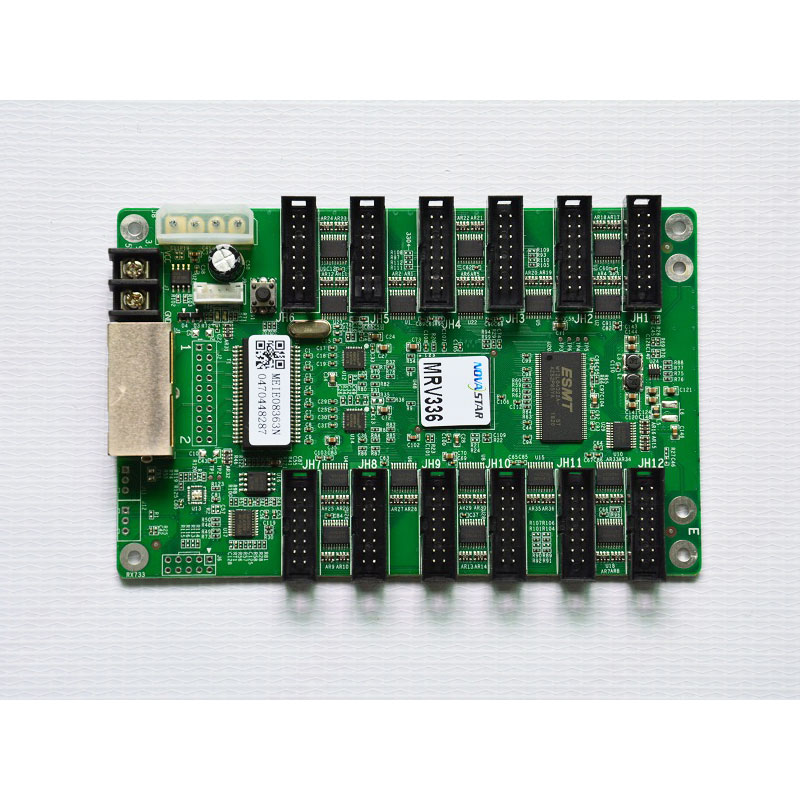

Novastar MRV336 LED Display Receiver Card HTL LED Billboard Details.

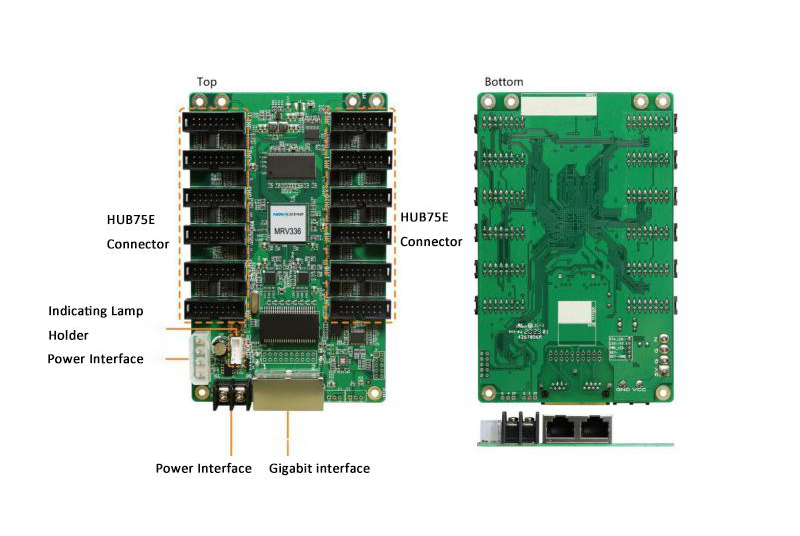

Novastar MRV336 LED Receiver Card max Support 256×226 dots, it has integrated 12 standard HUB75 connector.
MRV336 is the new receiver card from Nova, single card max support 256 x 226 pixels.
It has the follow up characteristics:
(1) 24-group of RGB data output;
(2) Configuration file readback and program copy;
(3) Ethernet cable communication status detection;
(4) High gray scale and high refresh rate;
(5) Pre-store picture setting;
(6) EU RoHs, EU CE-EMC standard;
Novastar MRV336 LED Display Receiver Card HTL LED Billboard
|
Specification |
MIN | TYP | MAX | UNIT |
| Rated voltage | 3.3 | 5.0 | 5.5 | V |
| Rated current | 0.33 | 0.50 | 0.55 | A |
| Working temperature | ||||
| Working humidity | 10.0~90.0 | % | ||
