HUB75B is not available any more. You can buy HUB75E from this link: HUB75E card.

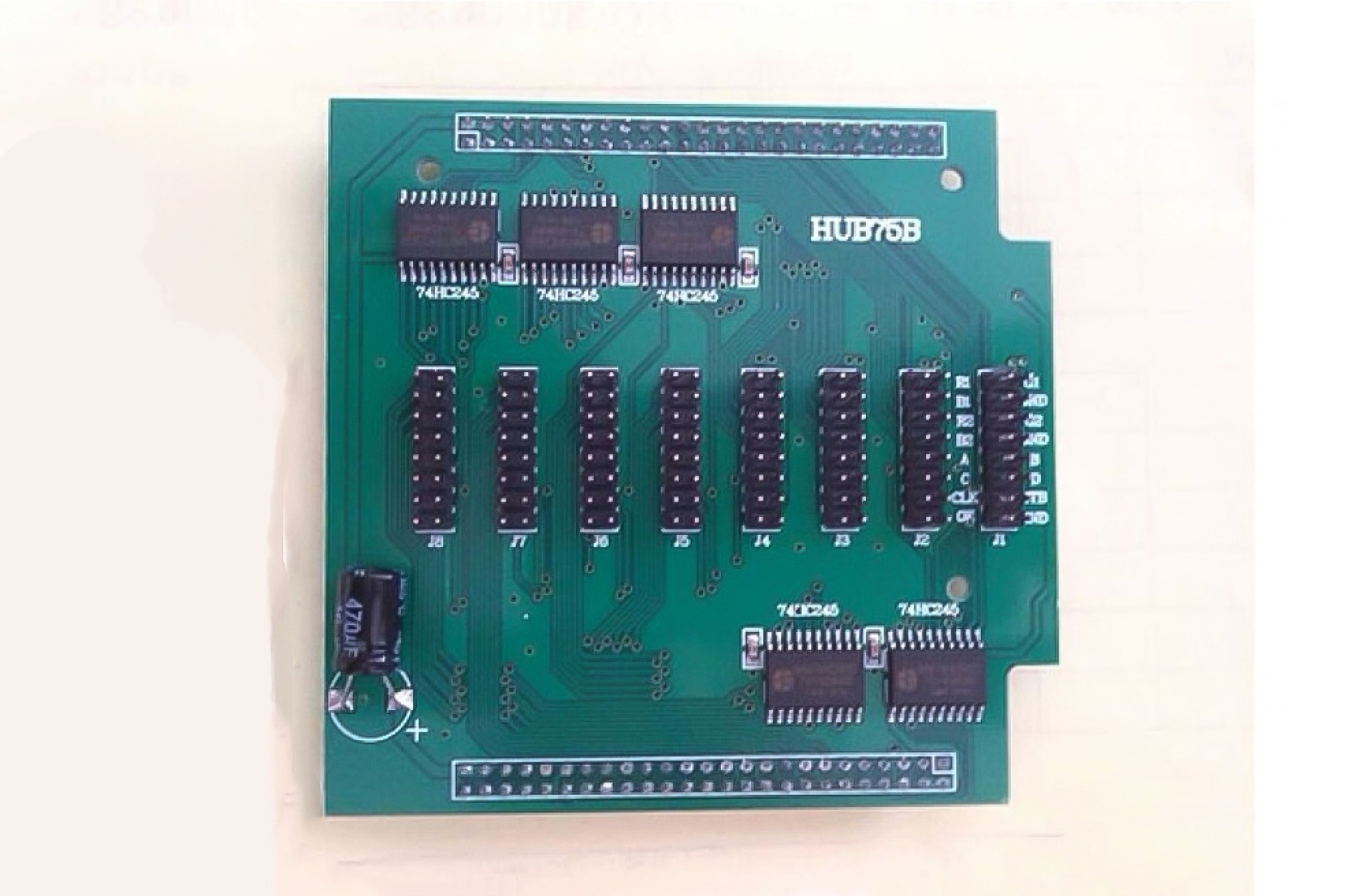

HUB75B HUB Card works with LED display modules of 1/16 duty, 1/8 duty, 1/4 duty, 1/2 duty and 1/1 duty. Please check the following HUB75B pin definition before you order our HUB75B card.
HUB75B LED Display Controller HUB Card Function:
Transfer the signal from LED receiving card to LED modules, such as the traditional indoor LED modules, P10, P7.62, P6, P5, P4, P3 and P2.5.
Interface Definition of HUB75B LED Wall HUB Card:
| 1 | R1 | 2 | G1 |
| 3 | B1 | 4 | GND |
| 5 | R2 | 6 | G2 |
| 7 | B2 | 8 | GND |
| 9 | A | 10 | B |
| 11 | C | 12 | D |
| 13 | CLK | 14 | STB |
| 15 | OE | 16 | GND |
| Weight(kg) | 0.2 |
|---|
