Colorlight X4e LED Display Controller User Manual is a professional control system and led wall display controller specially designed for led engineering applications.
It uhd video wall controller equips various video signal interfaces, supports high-definition digital ports (SDI, HDMI, DVI, DP), and seamless switching between signals can be achieved; it supports broadcast quality scaling and multi-pictures display.
Interfaces

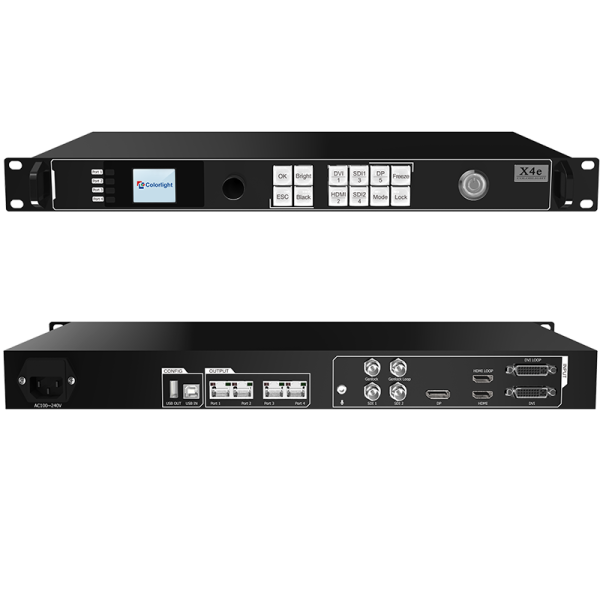

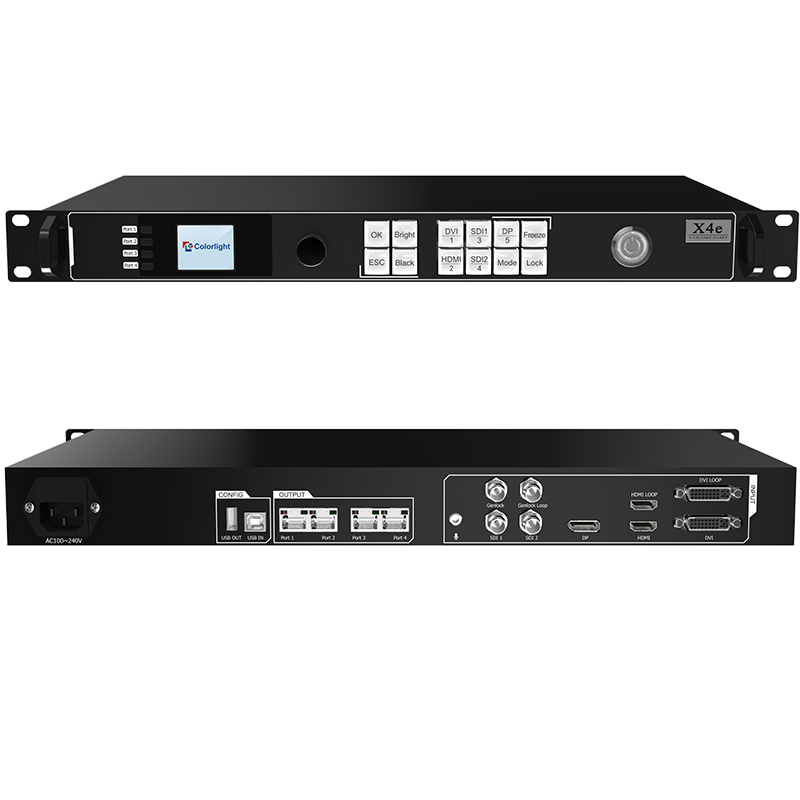

ColorLight X4E LED display controller box ColorLight X4 | X4S | X4E UHD Video Wall Controller
Colorlight X1 X2 X3 X4 X4e X6 X7 X8 X16 LED Video Processor Features
•Supports various digital signal ports, including 2×SDI, 1×DP, 1×HDMI (with loop), 1×DVI (with loop)
•Supports input resolution up to 1920×1200@60Hz
•Loading capacity: 2.6 million pixels, Maximum Width/Height: 4096 pixels
•Supports arbitrary switching and scaling of video source
•Supports three-picture displays, the location and size can be adjusted freely
•Supports HDCP1.4
•Dual USB2.0 for high speed configuration and easy cascading among controllers
•Supports brightness and chromaticity adjustment
•Supports improved gray-scale at low brightness
•Compatible with all receiving cards, multifunction cards, optical fiber converters of Colorlight.
| Input Interface | |
|---|---|
| SDI | 2 SDI inputs, 1080P |
| DP | DP input, VESA Standard, supports input resolution up to 1920×1200@60Hz |
| HDMI | HDMI input (with loop), EIA/CEA-861 Standard, supports 1920×1200@60Hz, supports HDCP |
| DVI |
DVI input (with loop), VESA Standard (supports 1920×1200@60Hz), supports HDCP |
| Output Interface | |
|---|---|
| Port1-4 | RJ45?? Gigabit Ethernet ports |
| Controlling Interface | |
|---|---|
| USB OUT | USB output, cascading with next controller |
| USB_IN | USB input, which connects with PC to configure parameters |
| Genlock | Genlock signal input ensures synchronism of display image |
| Genlock Loop | Genlock synchronous signal loop output |
| Specifications | |
|---|---|
| Size | 1U standard box |
| Input Voltage | AC 100~240V |
| Rated Power Consumption | 20W |
| Working Temperature | -25~80 |
| Weight | 2kg |
