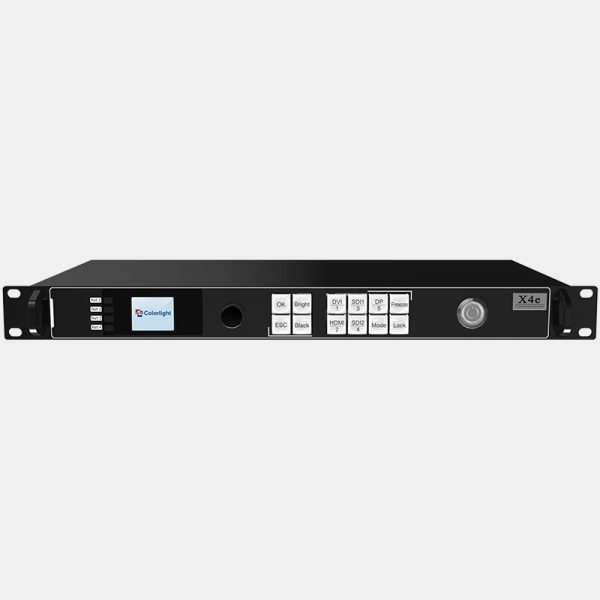

Colorlight LED X4E LED Display Controller and LED Control Card

Colorlight LED X4E LED Display Controller and LED Control Card.

X4e controller is a professional control system and video processing equipment specially designed for LED screen. It equips various video signal interfaces, supports high-definition digital ports (SDI, HDMI, DVI, DP), and seamless switching between signals can be achieved; it supports broadcast quality scaling and multi-pictures display.

Colorlight LED Controller Card Descriptions .

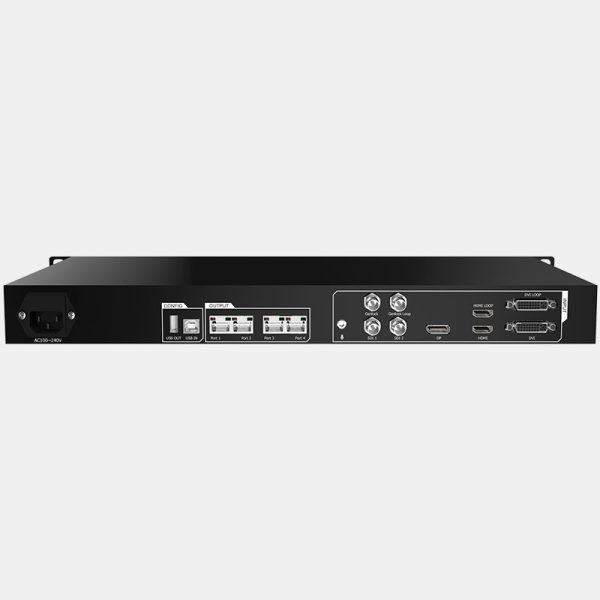

•Supports various digital signal ports, including 2×SDI, 1×DP, 1×HDMI (with loop), 1×DVI (with loop).

•Supports input resolution up to 1920×1200@60Hz.

•Loading capacity: 2.6 million pixels, Maximum Width/Height: 4096 pixels.

•Supports arbitrary switching and scaling of video source.

•Supports three-picture displays, the location and size can be adjusted freely.

•Supports HDCP1.4.

•Dual USB2.0 for high speed configuration and easy cascading among controllers.

•Supports brightness and chromaticity adjustment.

•Supports improved gray-scale at low brightness.

•Compatible with all receiving cards, multifunction cards, optical fiber converters of Colorlight.
