Colorlight LED X4 Video Processor LED Display Controller and LED Card System

Colorlight LED X4 Video Processor LED Display Controller and LED Card System.

X4 is a professional LED display controller, it possesses powerful video signal receiving capacity, and supports multiple signal inputs, with max input resolution of 1920×1200 pixels. Meanwhile, 4 Gigabit Ethernet output ports support arbitrary splicing.

Colorlight LED X4 Video Processor System Descriptions

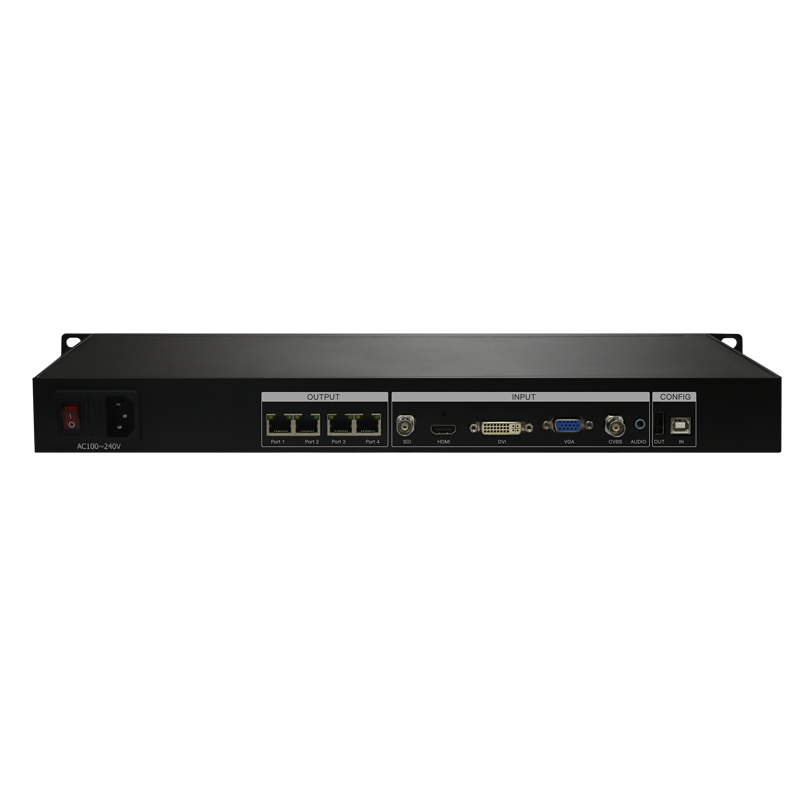

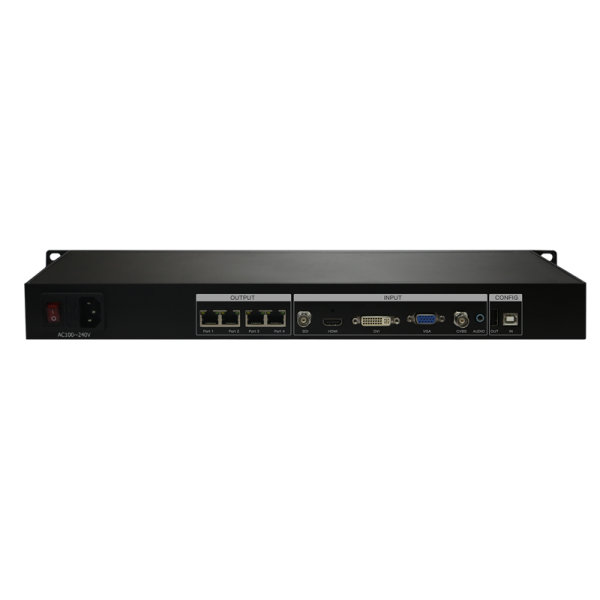

·Video input ports including SDI×1, HDMI×1, DVI×1, VGA×1, CVBS×1;

·Supports input resolution up to 1920×1200@60Hz;

·Loading capacity:2.3 million pixels,Maximum Width??560 pixels, Maximum height: 2560 pixels;

·Supports arbitrary switching of video input, and the image can be zoomed freely;

·Dual USB2.0 for high speed configuration and easy cascading;

·Supports splicing and cascading among several controllers with synchronization strictly;

·Supports brightness and chromaticity adjustment;

·Supports improved gray-scale at low brightness;

·Supports HDCP.

·Compatible with all receiving cards, multifunction cards, optical fiber converters of Colorlight.
