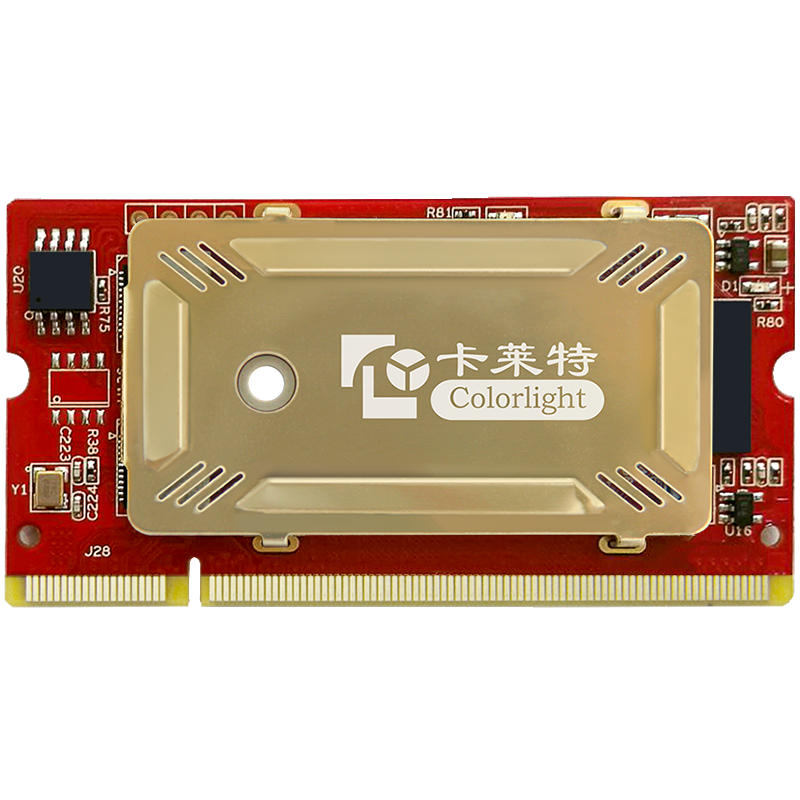

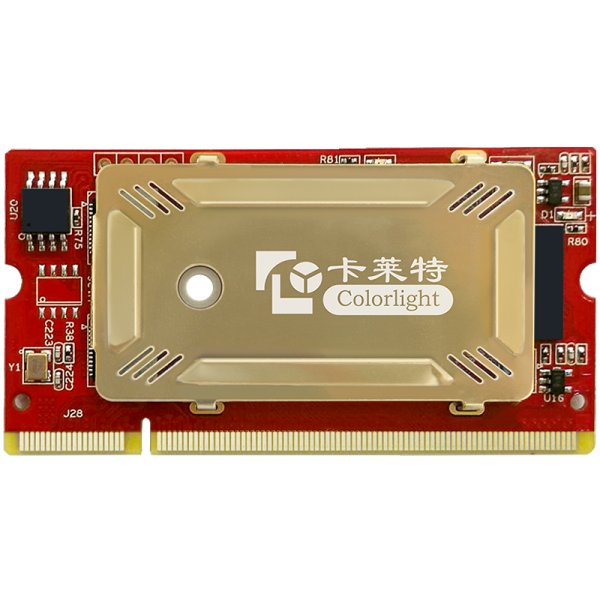

Karta odbiorcza ColorLight i6 do ekranów wyświetlaczy LED

ColorLight i6 Receiving Card is specially design for high-end project, which not only can greatly improve the visual performance but also bring convenience for online video splicer, loading capacity: 256×256 pixels.

Since i6 led wall controller was produce, it supported many big event like Australian Open 2016, 2016 Detroit Auto Show etc.

ColorLight I6 Mini LED Receiving Card for high-end P1.56 P1.953 P2.604 P2.976 P3.91 P4.81 LED Screen Rental 500X500 and 500×1000

---

Colorlight i6 LED Display Receiving Card Specification Features

·Tiny size: 68×36mm, DDR2 SODIMM interface, easy for maintenance

·Obsługuje 32 groups of RGB signal output

·Loading capacity: 256×256 pixels

·Niskie opóźnienie

·Supports Auto-Calibration

·Seam compensation

·Supports 3D display

·Improved grayscale performance at low brightness

·Smart panel marking good for maintenance

·Auto-recognizes sequence of connected receiver cards

·High-precision point-by-point calibration in the Brightness and the chromaticity

·Supports smart module to save calibration coefficients and other information on module

·Temperatura, wilgotność, power supply voltage monitoring on cabinet and fan rotating control

·Cable Detection

·Supports receiver card backup and power supply backup

·Various freeform display designs like spherical display, kreatywny pokaz, itp.

---

Control system parameters
Sending device	All of Colorlight’s sending devices
Pojemność	Full-color: 256×256 pixels
Cascade Control Area of the Largest Region	65536×65536 pixels
Network Port Exchange	Supported, arbitrary use
Poziom szarości	Maximum 65536 Levels

Display module compatibility
Chip Supports	Supports conventional chips, PWM chips, lighting chips and other mainstream chips
Tryb skanowania	Two scanning methods to support refresh rate multiplier
Scan Type	Supports static sweep to 1/32 skanowanie
Module Specifications Support	Obsługuje 4096 pixels within any row, any column
Cable Direction	Supports route from left to right, from right to left, from top to bottom, from bottom to top
Data Sets	32 RGB data sets
Data Folded	Supports 1~8 any discount to improve refresh rate.
Data Exchange	32 sets of data any exchange
Module Snapshot	Supports any pumping point

Compatible device and interface type
Communication Distance	UTP cable 40m CAT6 cable 70m OPTIC FIBER transmission distance unrestricted
Compatible with Transmission Equipment	Gigabit switch, fiber converter, optical switches
Rozmiar	67.6×32.9mm
Napięcie wejściowe	DC 3.3V~6V
Prąd znamionowy	0.6A
Rated Power	3W
Storage and Transport Temperature	-50℃~125
Temperatura pracy	-25°C~75
Body Static Resistance	2KV
Waga	9.5G



Monitoring function (in conjunction with multi-function card)
Temperature Monitoring	Cabinet temperature monitoring between -25~ 75 1 port for each card
Humidity Monitoring	One port to monitor receiver card humidity range with 20% ~ 95% 1 port for each card
Bit Error Monitoring	Monitoring the total number of data packets and error rate to check network quality
Supply Voltage Monitoring	5 ports for supply voltage monitoring
Smoke Monitoring	One port for smoke monitoring and can work with relay to activate an alarm and turn off the display screen 1 port for each card
Full Color LCD Display Panel	Supports full color LCD display panel

Pixel level calibration
Kalibracja jasności	Supported
Chromaticity Calibration	Supported

Inne funkcje
Hot Backup	Supports loop backup, double sender backup,
Shaped Screen	Supports various freeform display, wyświetlacz sferyczny, kreatywny pokaz, itp. through the date arbitrary offset
Program Backup	Proprietary redundant firmware backup on card no matter how to use, upgrade, send parameters, continuous functionality

---

---

NAZWA PLIKU	UWAGI WYDANIA	FILE SIZE	DOWNLOAD
i6 Specification	V1.3	630KB
