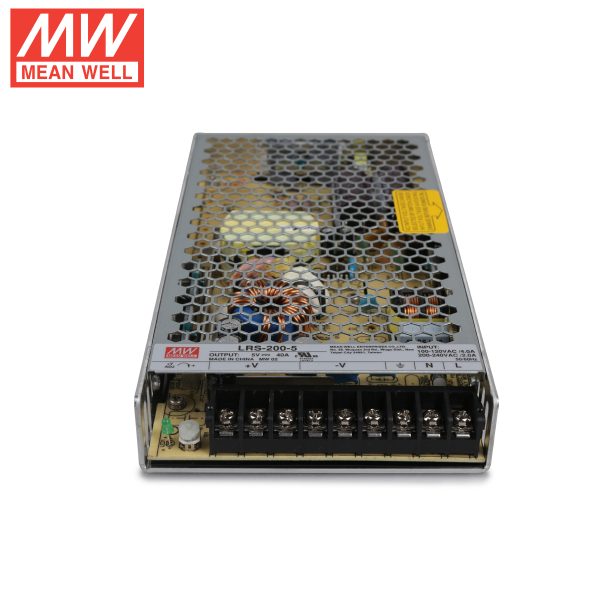

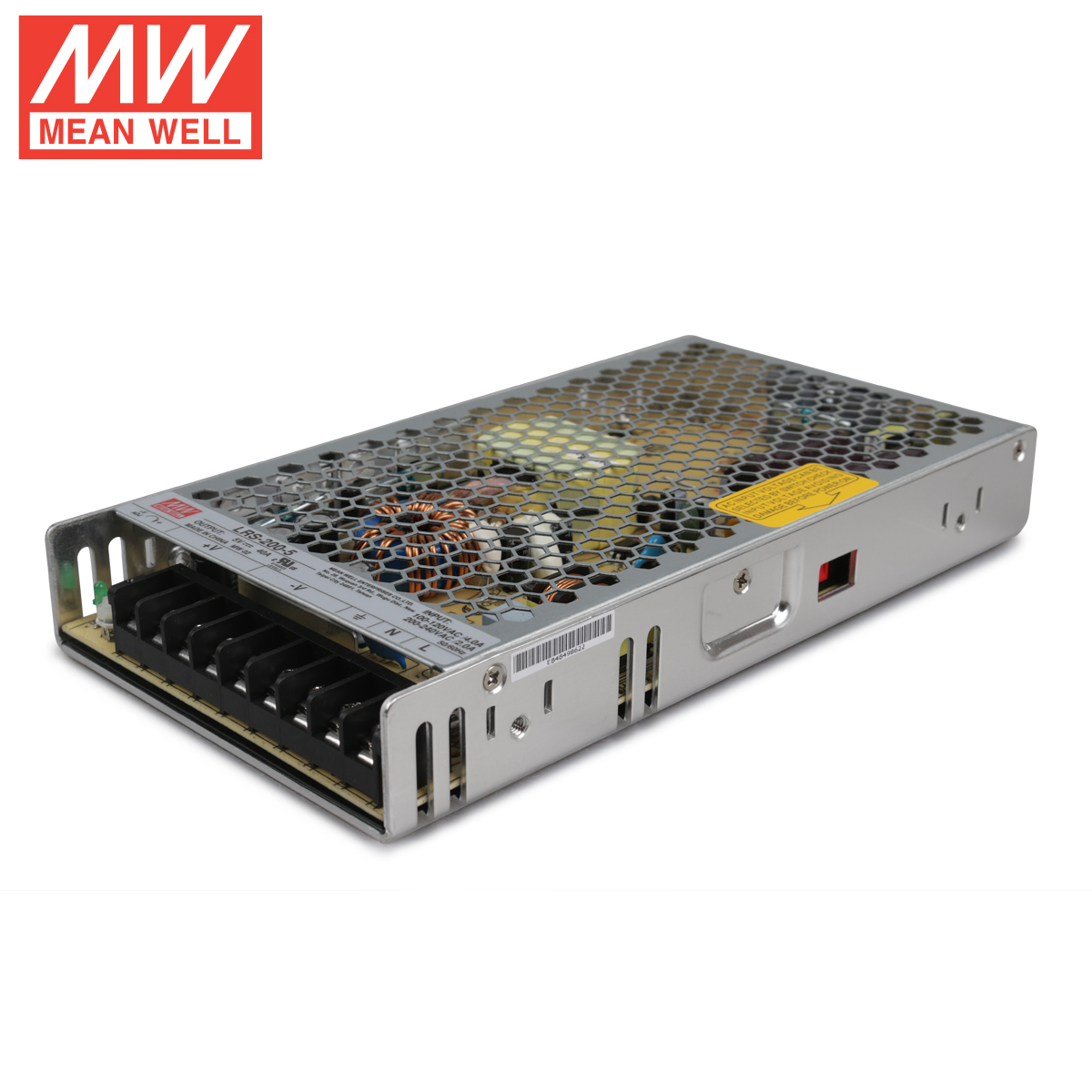

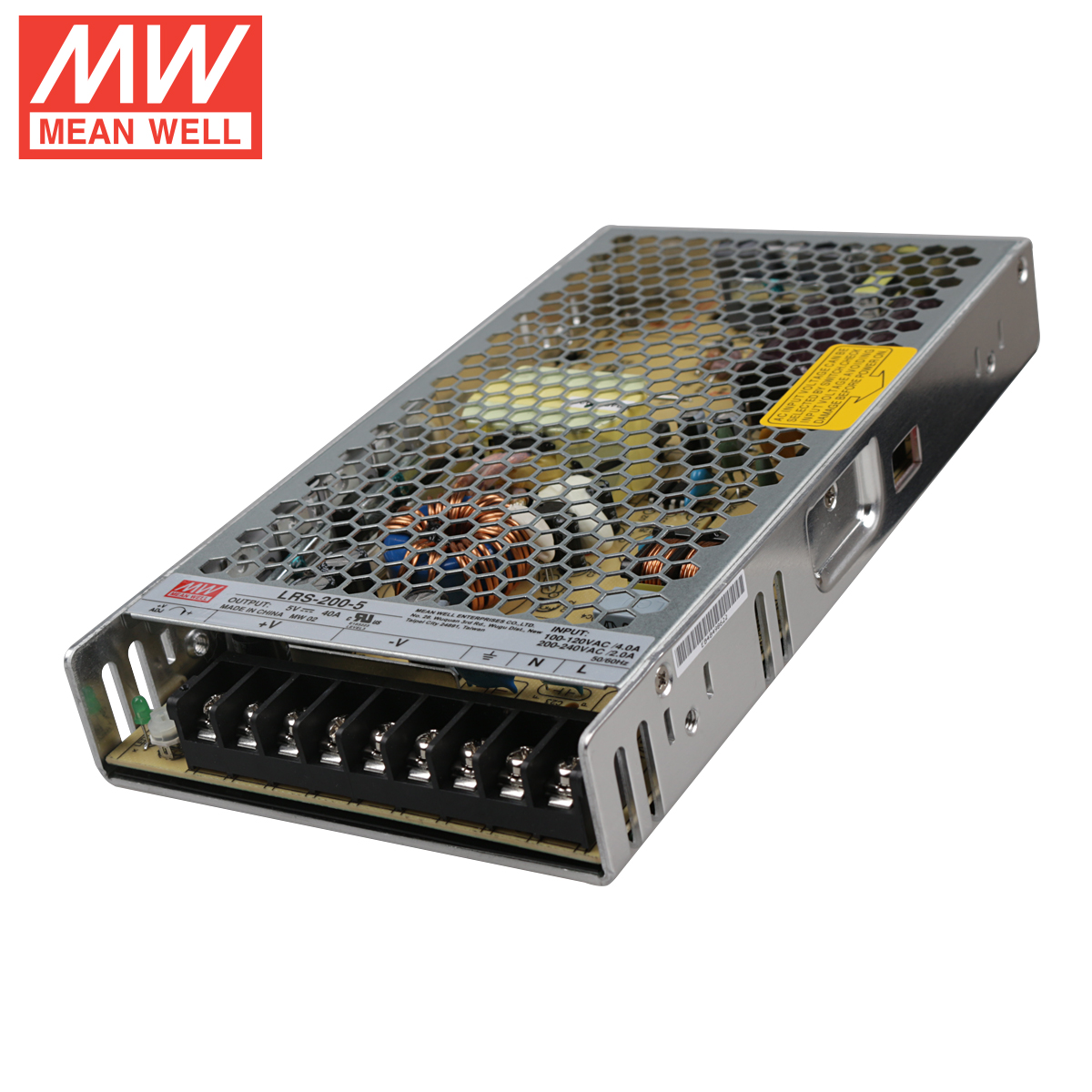

MEANWell LRS-200-5 Switching LED Display Module Power Supply.
Product Specifications :
| Modell | LRS-200-5 | |
| Inndata | Voltage Range (Note 4) | 90 ~ 132VAC / 180 ~ 264VAC by switch 254 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| AC CURRENT | 4.5A/115VAC 2.5A/230VAC | |
| LEKKASJØR | <3.5mA / 240VAC | |
| INNSTRØMSTRØM (maks.) | 40A/115VAC 55A/230VAC | |
| EFFEKTIVITET (Typ. | 87% | |
| Produksjon | VIRKELIG | 40EN |
| DC SPENNING | 5V | |
| NOEMPEKT | 200W | |
| GJELDENDE OMRÅDE | 0-40EN | |
| VOLTAGED ADJ. SPEKTER | 4.5 ~ 5.6V | |
| RIPPLE & STØY (maks.) Merk.2 | 150mVp-p | |
| VOLTAGE TOLERANCE Note.3 | ±2,0 % | |
| LASTREGULERING | ±1,0 % | |
| LINJEREGULERING | ±0,5 % | |
| HOLD OPTID | 20ms/230VAC 16ms/115VAC at full load | |
| OPPSETT, RISE TIME | 1000ms, 50ms/230VAC 1000ms,50ms/115VAC at full load | |
| Sikkerhet | TÅLE SPENNING | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
| SIKKERHETSSTANDARDER | UL60950-1 approved | |
| ISOLASJONSMOTSTAND | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH | |
| Environment | ARBEIDSFUKTIGHET | 20 ~ 90% RH non-condensing |
| ARBEIDSTEMP | -20 ~ +50 (Refer to output load derating curve) | |
| TEMP. KOEFFISIENT | ± 0.03% | |
| STORAGE TEMP., FUKTIGHET | -20 ~ +85 , 10 ~ 95% RH | |
| VIBRASJON | 10 ~500Hz, 3G 10min./1cycle, 60min. hver langs X, Y, Z-akser | |
| Andre | DIMENSJON | 215*115*50mm (L*B*H) |
| MTBF | 271.9K hrs min. MIL-HDBK-217F | |
| Note | 1:All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25??of ambient temperature 2:Rippled & noise are measured at 20MHz of bandwidth by using a 12 twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor 3:Tolerance: includes ast up tolerance, line regulation and load regulation 4:Please connect positive pole of input voltage with mark “L??of terminal block, connect negative pole of input voltage with mark “N??of terminal block, using DC voltage for input voltage. |
|
