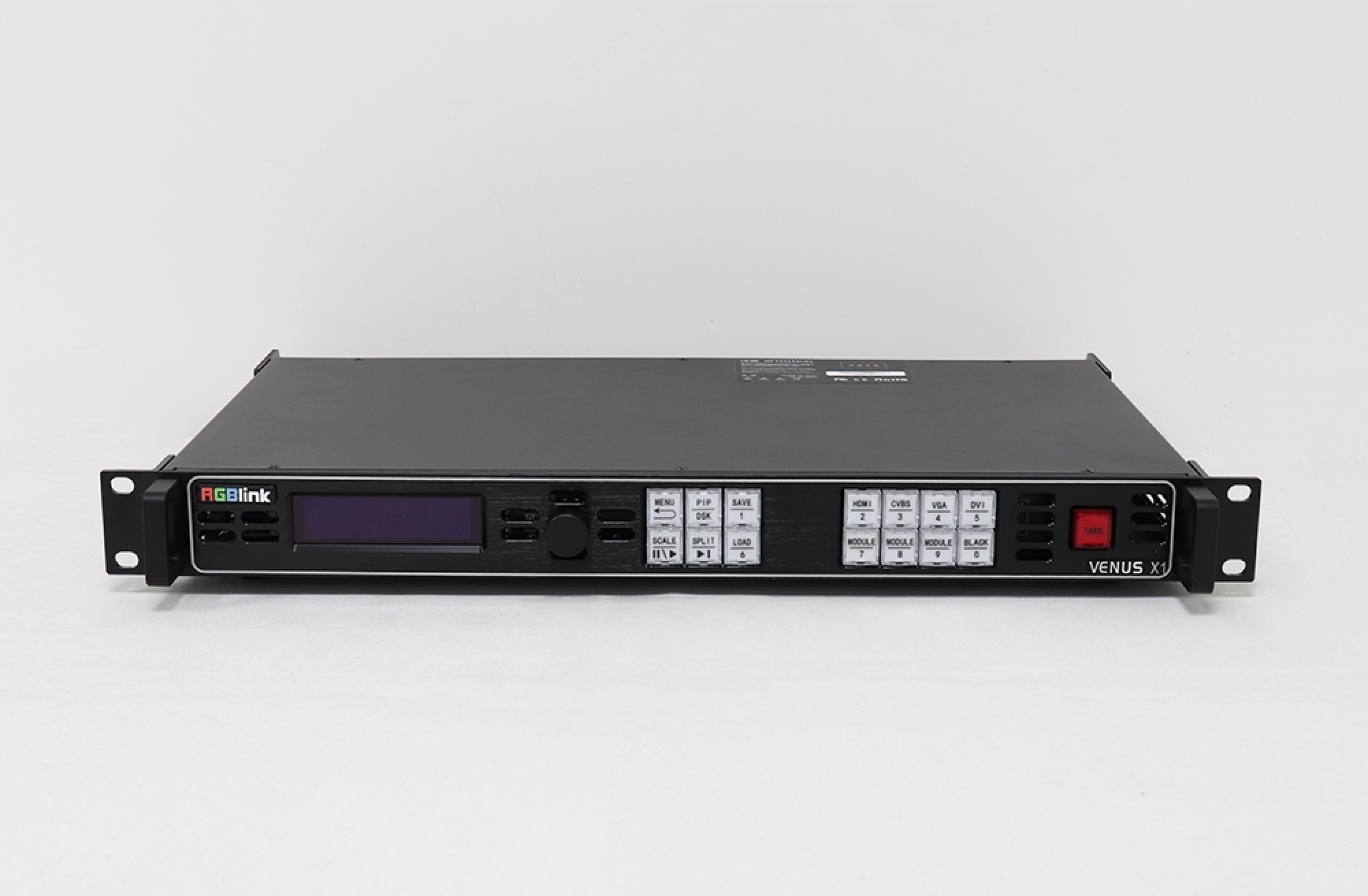

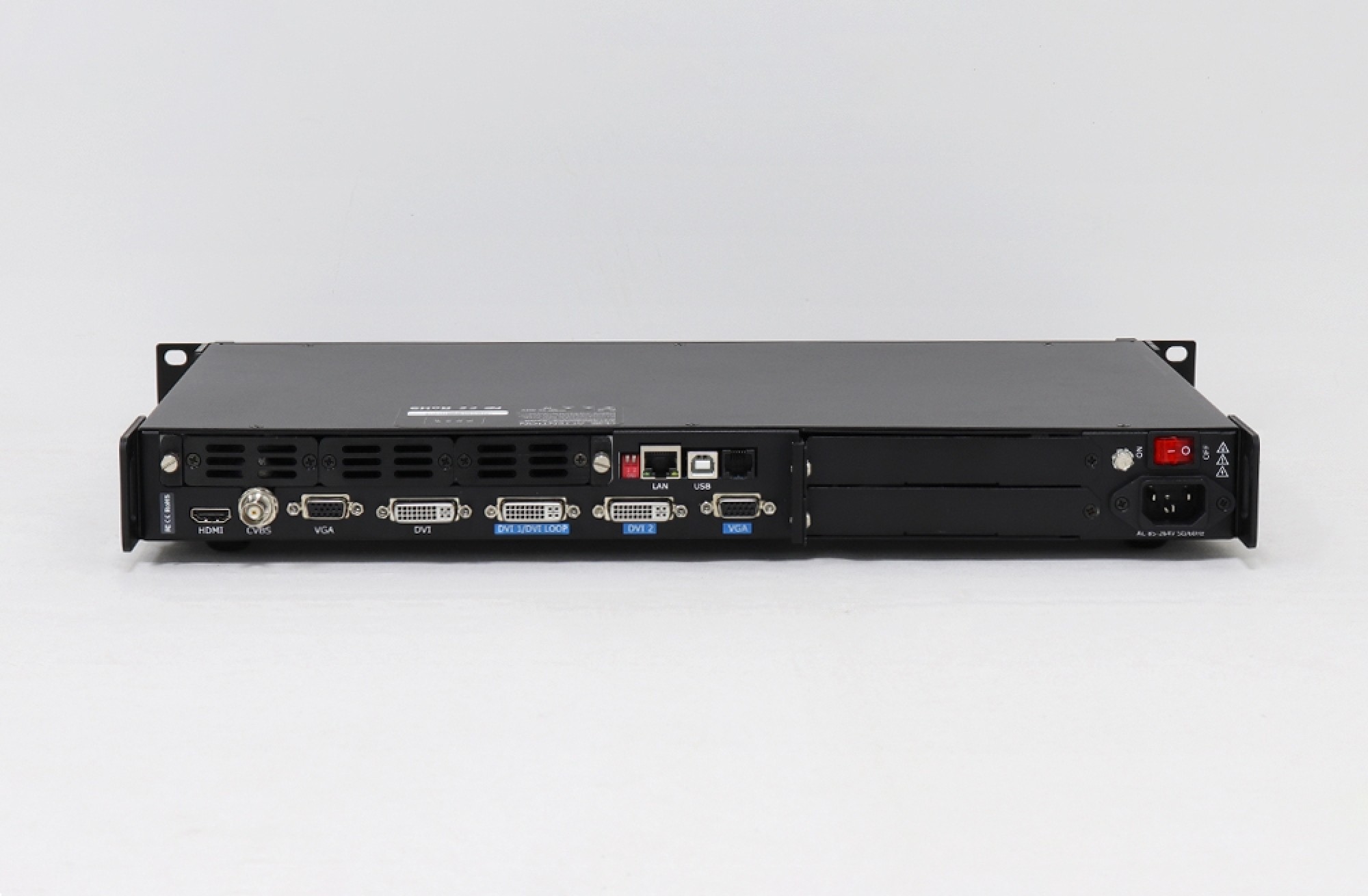

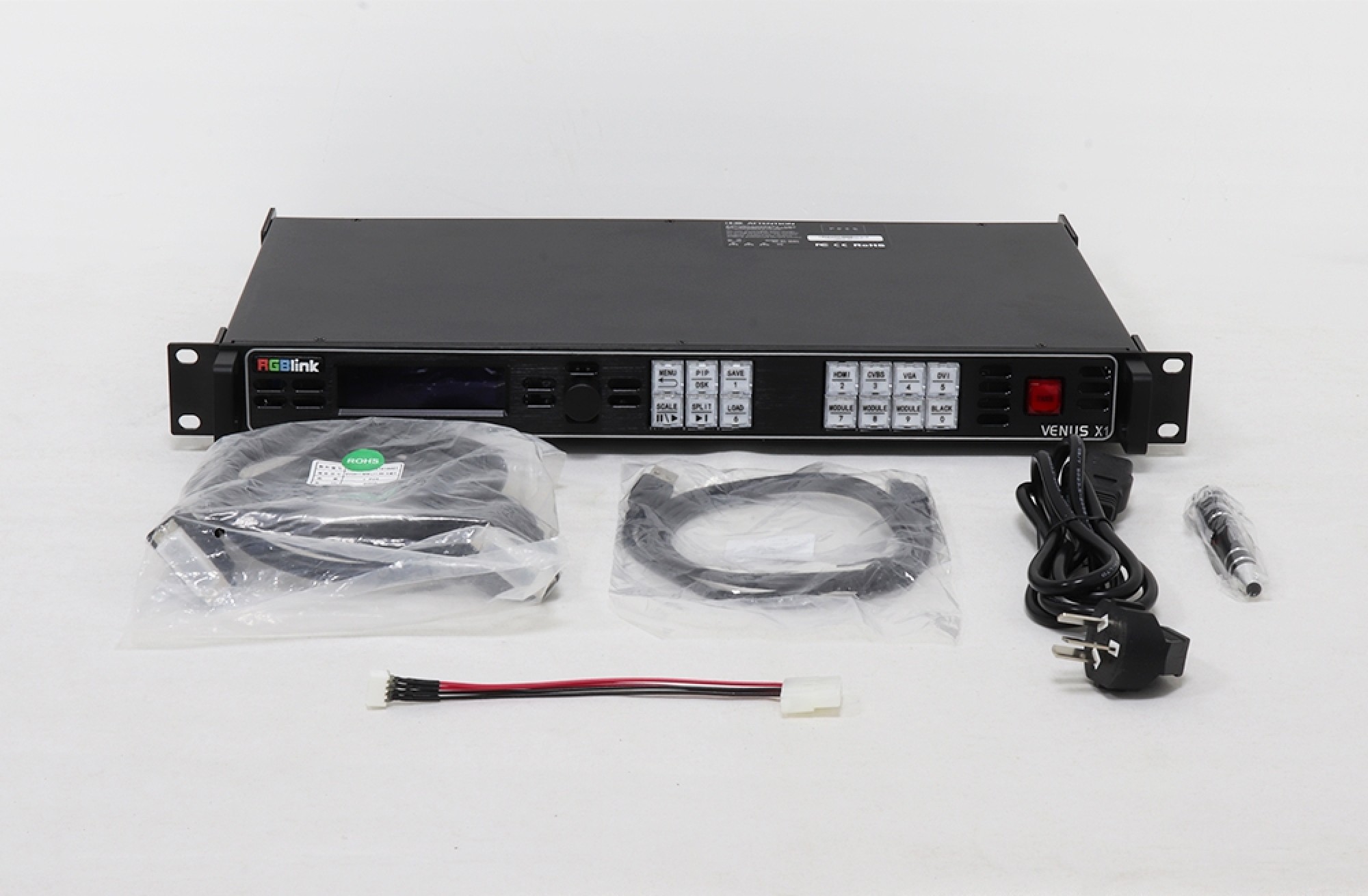

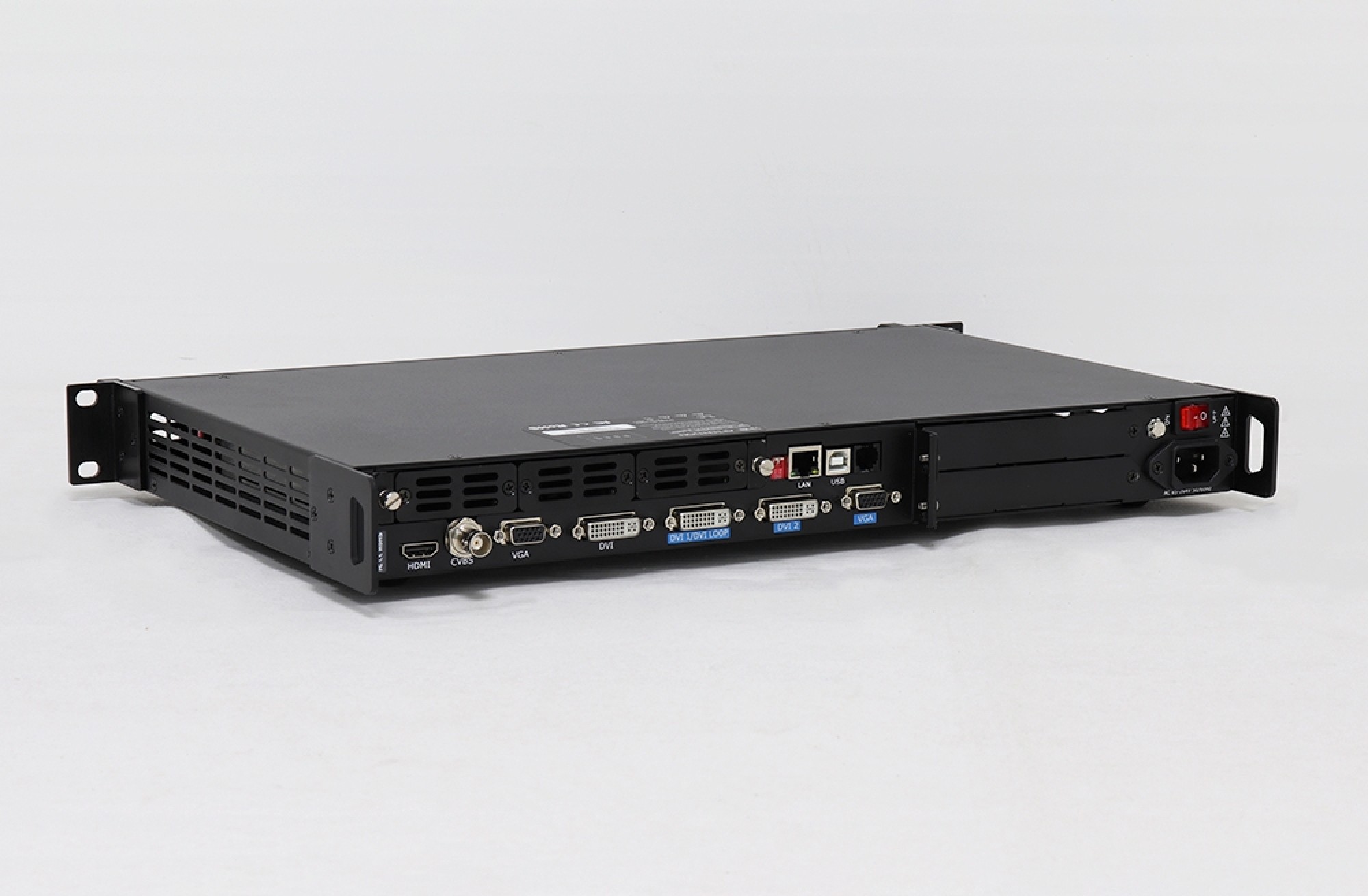

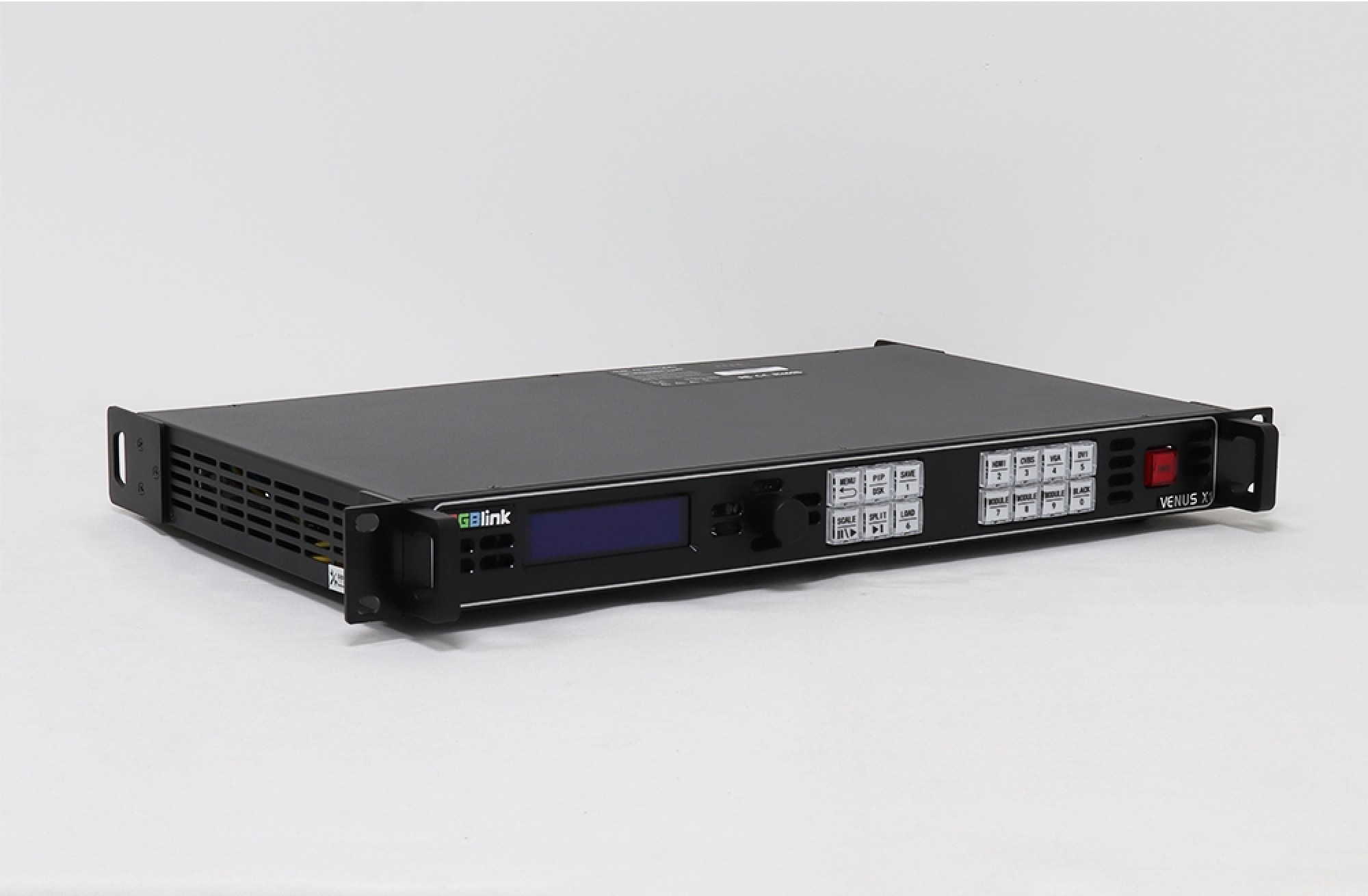

RGBLink VENUS X1PRO 4K HDMI LED Video Processor Features:
1. Simply professional 4K scaling and switching.
4K switching has never been more practical and straight forward. The modular VENUS X1 platform
allows the addition of a range of signal options over and above the standard inputs. Standard inputs
include 4K signals on Dual Link DVI, HDMI and DisplayPort. Output to DisplayPort as 4K or scale and
split across dual 2K DVI outputs. For those needing 4K distribution and splicing on four DVI, simply add
the additional output module. The output module expands VENUS X1PRO to four 2K DVI outputs and
adds a further DisplayPort output.
2.Alternately, VENUS X1PRO with the output module can be become a 4K presentation switcher with the
additional DVI outputs (and DisplayPort) becoming a full preview.
3.All the power and flexibility familiar with RGBlink X series
RGBLink VENUS X1PRO 4K HD LED Video Processor Parameters:
| သွင်းအားစုများ | စံ: | 1 x DVI |
| 1 x VGA | ||
| 1 x Display Port 1.1a | ||
| 1 x HDMI 1.4(loop နှင့်) | ||
| ရွေးချယ်မှု
မော်ဂျူး: |
3 x Option Module(1 x VGA/DVI/DP/CVBS/USB input per module) | |
| 3 x Option Module(1 x SDI/HDMI input per module, each with loop) | ||
| 1 x Option Module(1 x DVI input per module, each with loop) | ||
| 3 x Audio Module(3 x 3.5mm Balanced Analog Audio inputs per module) | ||
| ရုပ်ထွက်များ | စံ: | 1 x Display Port 1.1a |
| 2 x DVI | ||
| ရွေးချယ်မှု
မော်ဂျူး: |
1 x Audio Module((1 x Balanced Analog Audio output per module) | |
| 1 x Output Expansio Module(1 x Display Port 1.1a and 2 x DVI per Module) | ||
| Communication Ports | LAN | TCP/IP |
| USB | 2.0 | |
| ဝိုင်ဖိုင် | Option Module | |
| Input Voltage | AC 85~264V 50/60Hz | |
| Max Power | 65ဒဗလျူ | |
| အသားတင်အလေးချိန် | 2.7ကီလိုဂရမ် | |
| Package Weight | 6.3ကီလိုဂရမ် | |
| Net Size | 480mm x 303mm x 45mm | |
| Package Size | 535mm x 355mm x 130mm | |
| Work Temperature | -25°C~45°C | |
| Relative Humidity | 20%~90% | |
