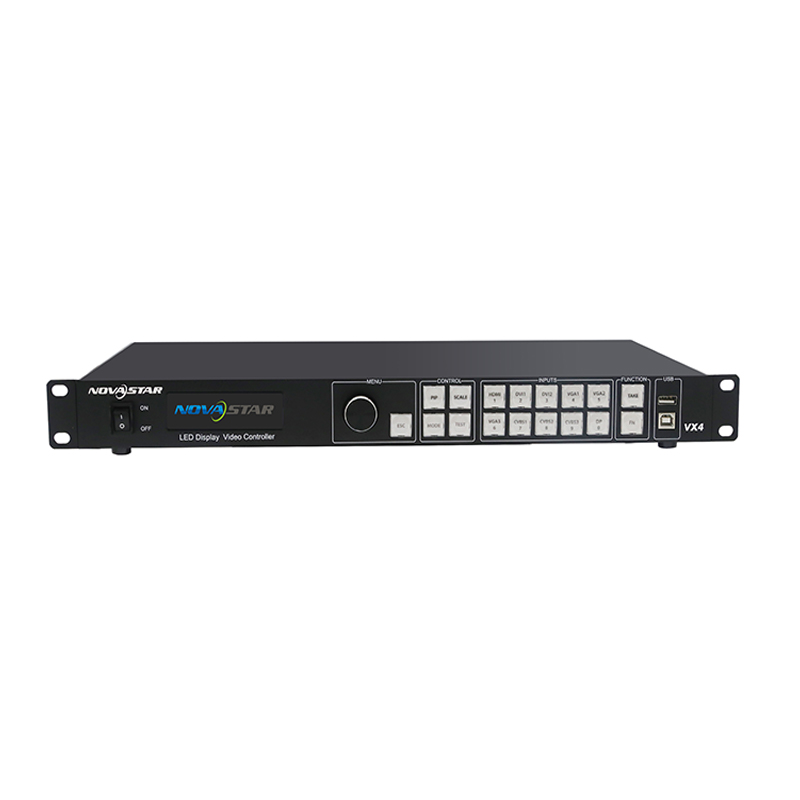

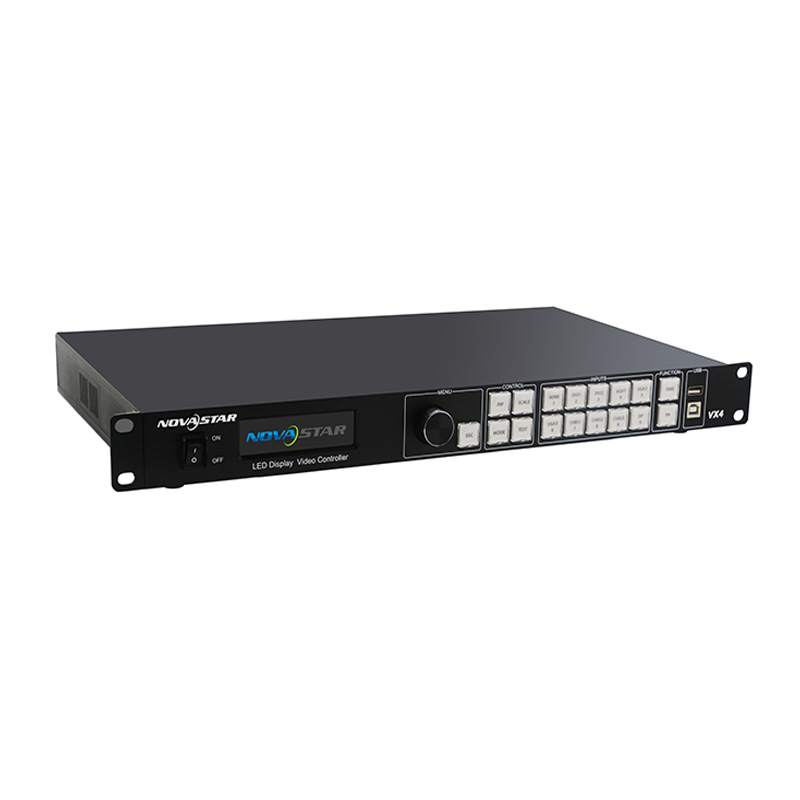

ViPlex Novastar VX4 LED Video Processor LED Controller Specification.
- Seamless high-speed switch and fade-in/ fade-out effect.
- The location and size of ПИП can both be adjusted.
- Nova G4 engine
- white balance calibration and color gamut mapping
- point-by-point correction
| ViPlex Novastar VX4 LED Video Processor HTL LED Controller Machine Specification | |
| Влезна моќност | AC 100-240V~, Hz 50/60 |
| Потрошувачка на енергија | 25В |
| Работна температура | -20~ 60 |
| Големина | 483.6×275.1×51.5(мм) |
| Тежина | 2.55 кг |
| Input indicators | |||
| Пристаниште | Износ | Resolution specifications | |
| VX4 | VX4S | ||
| VGA | 3 | 2 | VESA standards, maximum support 1920×1200@60 Hz Input |
| DVI | 2 | 1 | VESA стандард (поддршка 1080 i input), поддржува HDCP |
| CVBS | 3 | 2 | PAL/NTSC |
| HDMI | 1 | 1 | EIA/CEA-861 standards, meet HDMI-1.3 standards, поддржува HDCP |
| ДП | 1 | 1 | VESA standards |
| ИПП | бр | 1 | 480 |

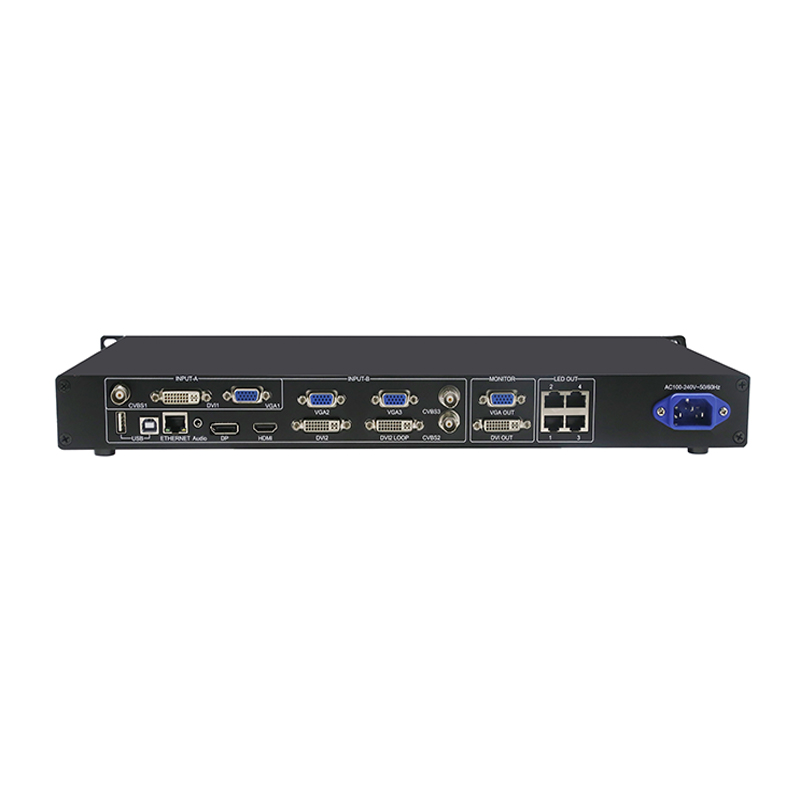

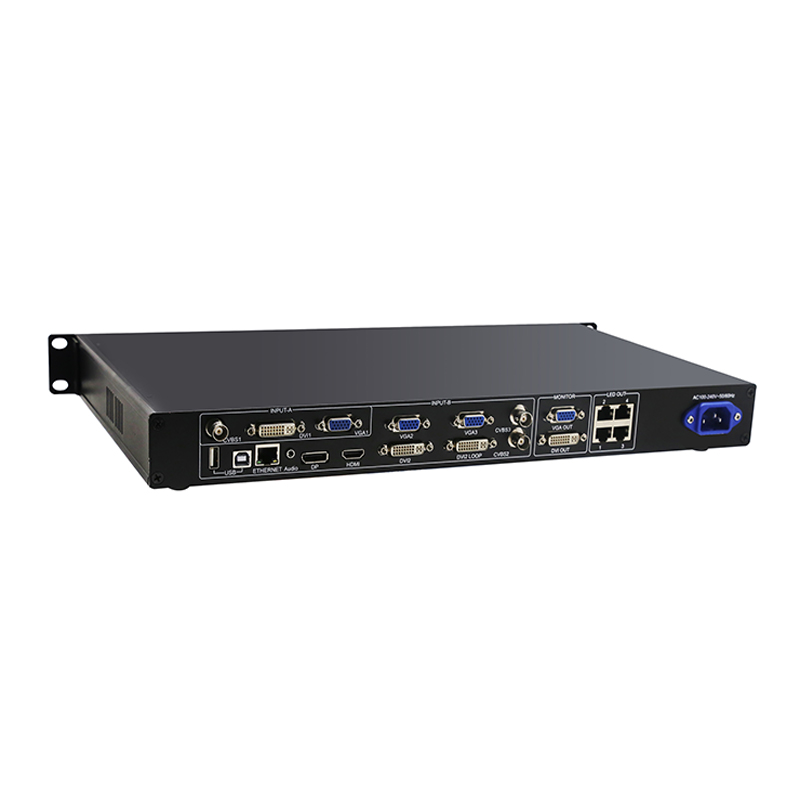

| Output indicators | |||
| Пристаниште | Износ | Resolution specifications | |
| VX4 | VX4S | ||
| DVILOOP | 1 | 1 | DVI input loop out, consistent with DVI input |
| DVI | 2 | 2 | Pre-monitoring output interface |
| SDI LOOP | бр | 1 | SDI input loop out, consistent with SDI input |
| LED OUT | 4 | 4 | Four channels Gigabit network port output, only network port 1 support audio output.
When parsing audio, the multi-function card must connect to port 1 Maximum resolution 3840 x 1920 пиксели. |
