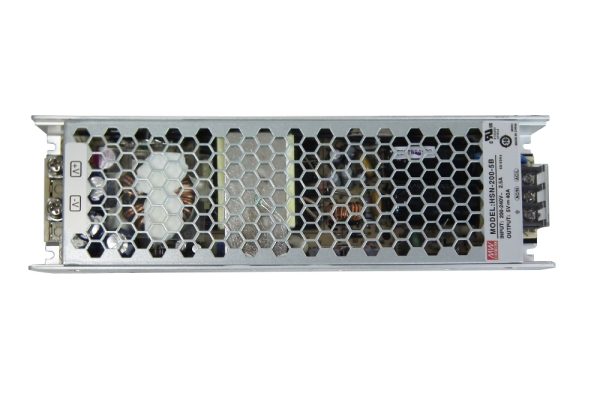

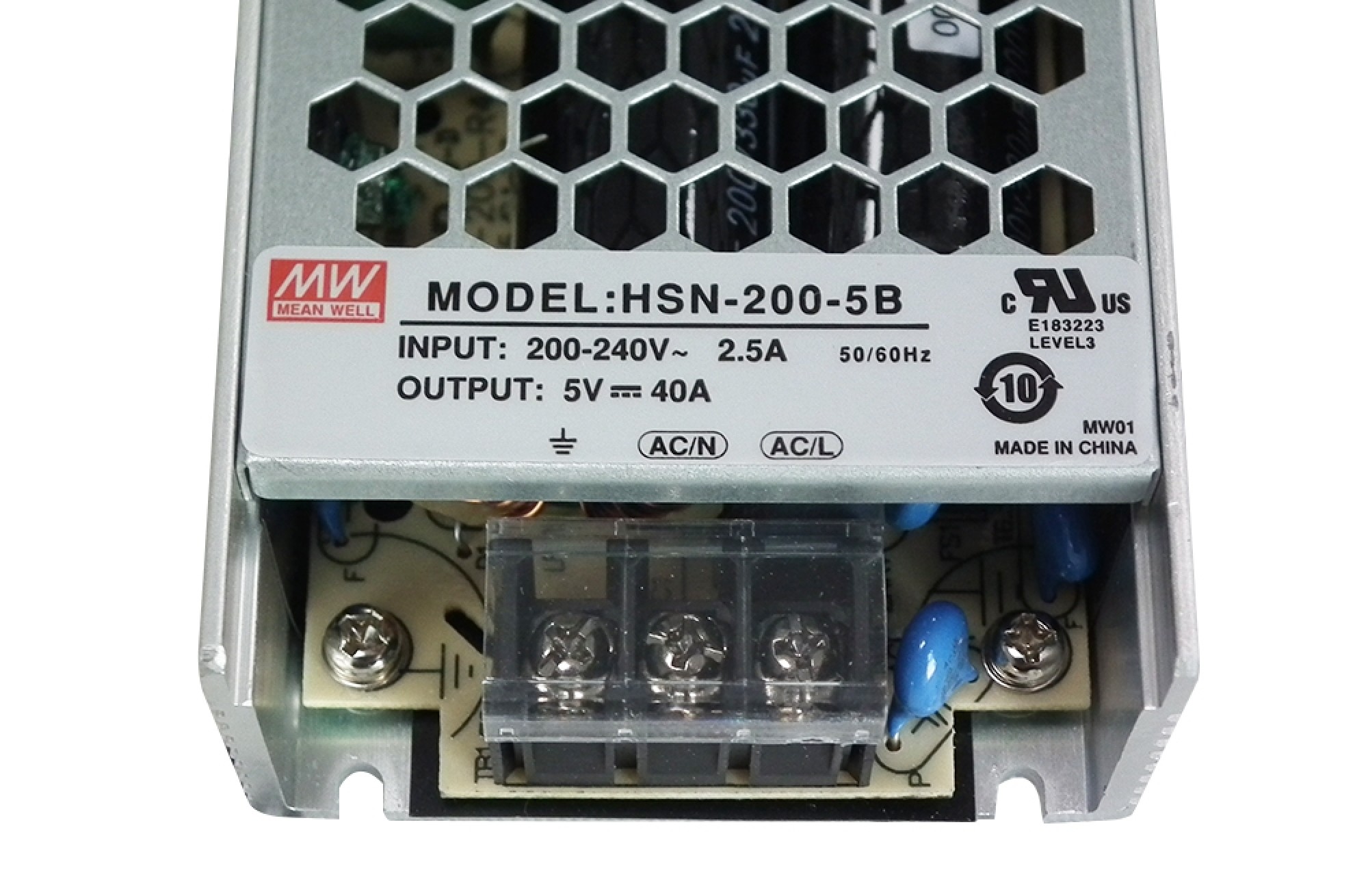

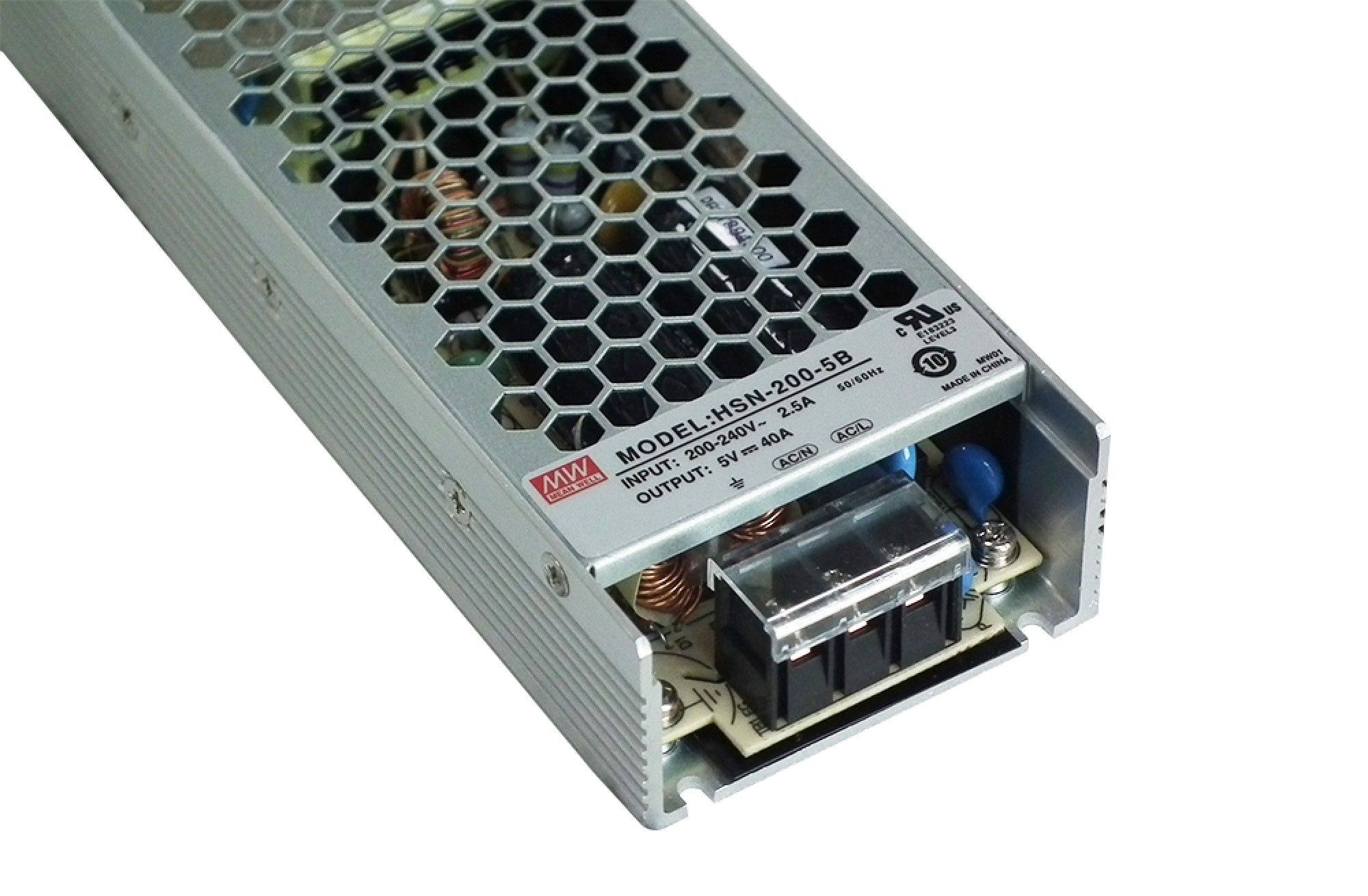

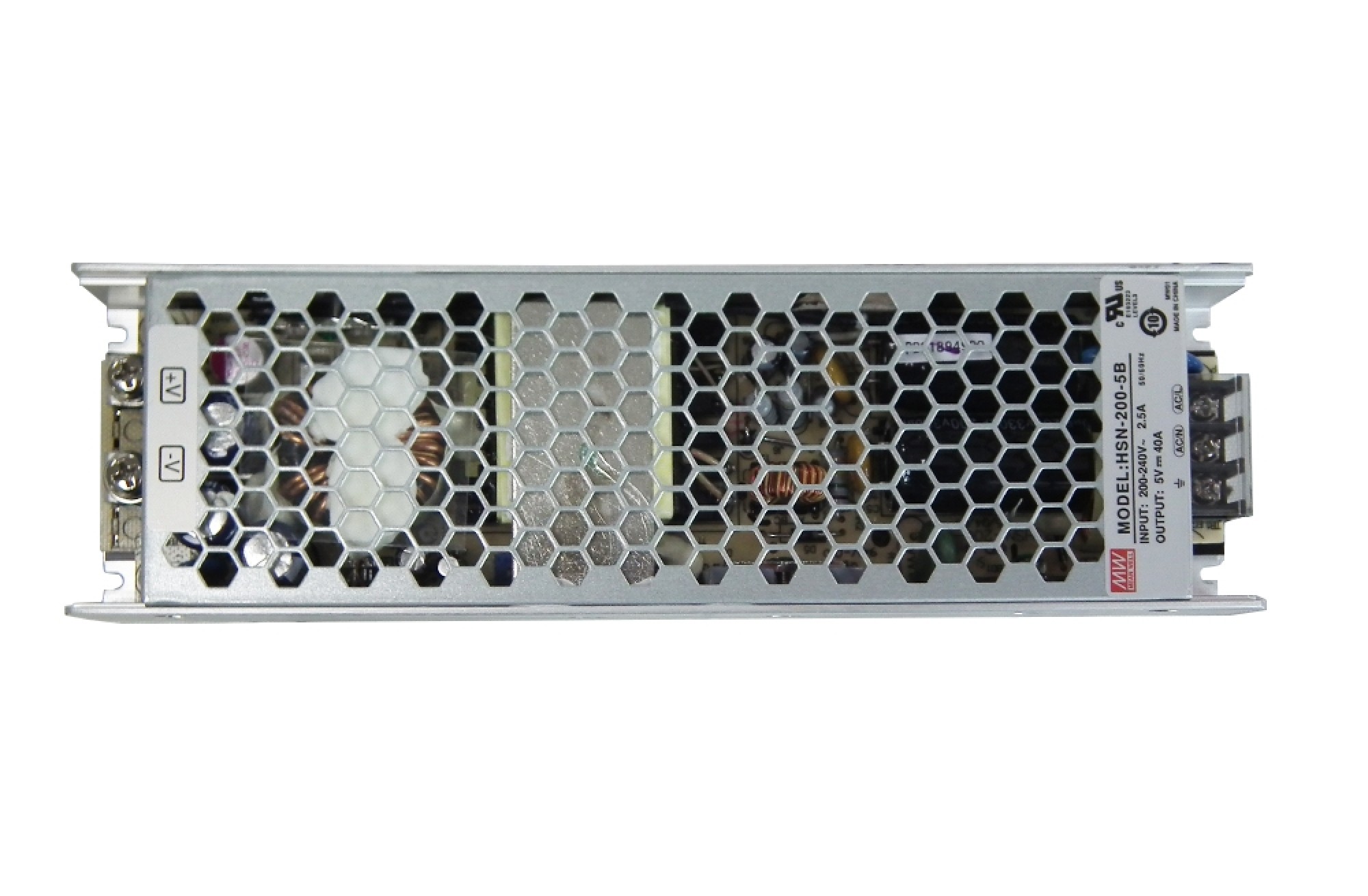

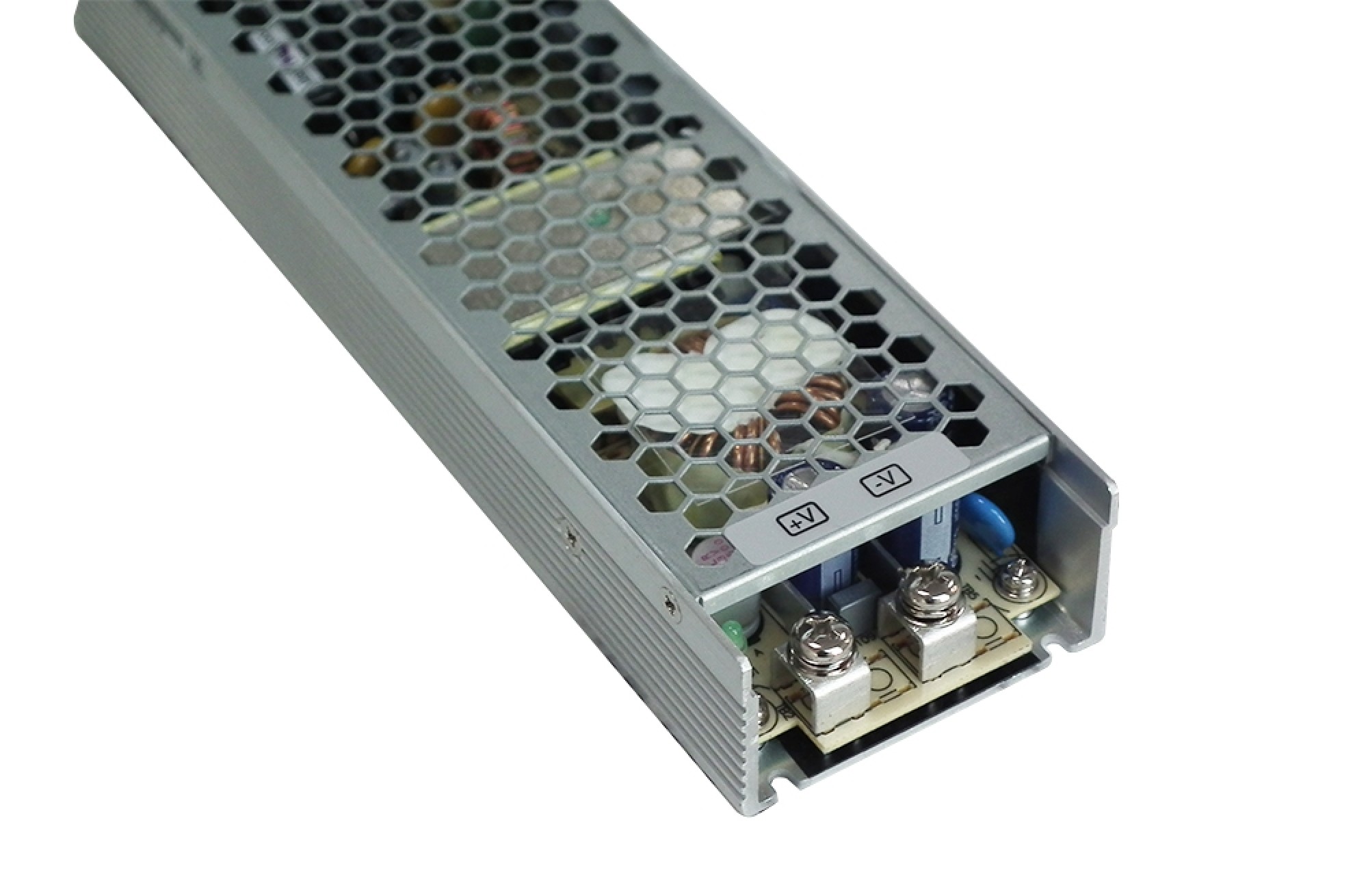

Meanwell HSN-200-5B 5V40A Switching Power Supply FEATURES:
MEAN WELL HSN-200 Power Supply is a ultra low profile slender sign panel power supply with up to 200W rated-power. The HSN-200 features two types with different input range: A-Type accepts 90~132VAC and B-Type accepts 180~264VAC. The output side supplies 4.2VDC and 5VDC, making HSN-200 work with both old and new generations of sign panel driver ICs, greatly raising the system design flexibility. This series incorporates non-PFC design, achieving a high efficiency up to 88% with a low cost, and the system performance is enhanced so both energy saving and electricity expense reduction can be fulfilled.
MEAN WELL HSN-200-5B LED Switch Power Supply Features
31mm ultra low profile, slim design
Input range: A-Type, 90~132VAC; B-Type, 180~264VAC
Rated power up to 200W (150W for 90~132VAC input models)
High working efficiency up to 88%
Fanless дизайн, cooling by conduction via bottom plate (minimal size 450 x 450 x 3 мм)
-25°C ~ +70°C working temperature
(HSN-200 must be firmly mounted on an aluminum plate or the cabinet of sign panel module)
Low leakage current <1мА
Коргоо: short circuit / ашыкча жүктөө / ашыкча чыңалуу / over temperature
Өлчөм (LxWxH): 210x 62x 31 мм
MEAN WELL HSN-200-5B LED Switch Power Supply Applications
Indoor and Outdoor LED Electronic Signage
LED Moving Signs
LED TV Walls
MEAN WELL HSN-200-5B LED Switch Power Supply Parameter.
| Бөлүмдүн номери | Output Voltage-Channel 1 | Чыгуу күчү | Input Voltage | Output Current-Channel 1 |
| HSN-200-4.2B | 4.2 VDC | 168 В | 180 VAC to 264 VAC/254 VDC to 373 VDC | 40 А |
| HSN-200-4.2A | 4.2 VDC | 126 В | 90 VAC to 132 VAC | 30 А |
| HSN-200-5B | 5 VDC | 200 В | 180 VAC to 264 VAC/254 VDC to 373 VDC | 40 А |
| HSN-200-5A | 5 VDC | 150 В | 90 VAC to 132 VAC | 30 А |
