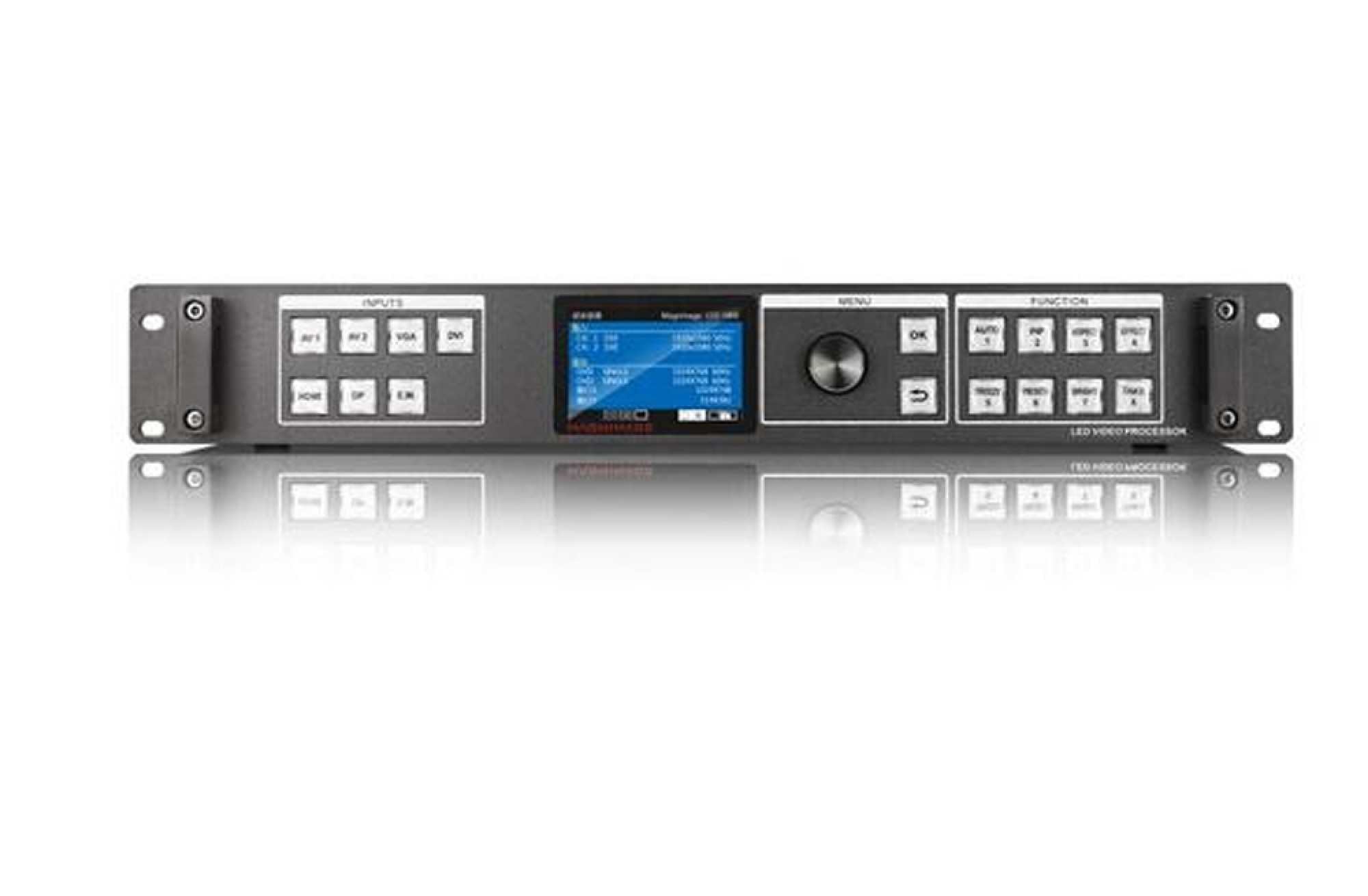

Magnimage LED 580F 4K UHD LED Screen Video Processor Description:
Magnimage LED 580F 4K UHD LED Screen Video Processor is a high performance processor which has various input and output plugs, including Dual link DVI, DVI, HDMI, DP, VGA жана CVBS, etc input plugs and audio input output plugs.
LED-580F series video processor supports 4Kx2k input, which can realize pixel to pixel and zoom scaling display with simplifies operating. It supports preview, hot backup, multi-machine cascade, customized output resolution, SDI output, Dual link DVI output, DP output, fade, seamless switch and schedule function.
LED-580F series video processor is used in stage shows, conference, көргөзмө, press conference, command & control center, surveillance center, стадион, аэропорт.
Magnimage LED 580F 4K UHD LED Screen Video Processor Main function
| 4K input/output | Fade in/fade out |
| Customize input/output resolution within 4K | 4 channel audio input(include 1 HDMI audio input) |
| Single device mosaic,dual link DVI output | Audio delay (500ms in maximum) |
| DP loop or output | Image crop function |
| Standardized 6 киргизүү | Customized output depth-width ratio |
| 1 expending port space(DVI or VGA or SDI) | Time task function |
| Dual image | Text overlay |
| Modify size and position arbitrarily | Built-in test graphic cards |
| Freeze image | Multiple machine splicing |
| Save and load mode | Ысык камдык |
| Image effect enhancement | Support host machine control |
| Accurate brightness control | Preview switch |
| Support series port secondary development | Support USB upgrade |
Magnimage LED 580F 4K UHD LED Screen Video Processor Input Ports
| Ports | ЖОК. | Резолюциянын спецификациясы |
| OF | 2 | PAL NTSC SECAM |
| VGA | 1 | VESA |
| DVI | 1 | VESA |
| DP | 1 | Displayport 1.1/1.2 |
| HDMI | 1 | HDMI 1.3/1.4 |
Magnimage LED 580F 4K UHD LED Screen Video Processor Output Ports
| Ports | ЖОК. | Резолюциянын спецификациясы |
| VGA | 1 | 2K×1K resolution:
1024×768/60Hz 1280×1024/60Hz 1440×900/60Hz 1280×720/50Hz 1920×1080/50Hz/60Hz 1920×1200/60Hz 2560×816/60Hz 1536×1536/60Hz 2K×1K resolution: 2560×1024/60Hz 2560×1600/60Hz 2560×1440/60Hz 1080×3840/60Hz 3840×1080/60Hz 1920×1080/120Hz 1920×1080/100Hz Customized output resolution: Горизонталдык резолюция:max.3840 Вертикалдык резолюция:max.3840 |
| DVI | 2 | |
| DP | 1 |
Magnimage LED 580F 4K UHD LED Screen Video Processor specification
| Электр камсыздоо | 100-240V AC 50/60Hz |
| Электр энергиясын керектөө | 40В |
| Operation temperature | 0-65 |
| Product dimension(L×W×H) | 482.6×301.3×66.8mm |
| Packing dimension(L×W×H) | 555.0×430.01×45.0mm |
| N.W. | 4.7кг |
| G.W. | 6.5кг |
