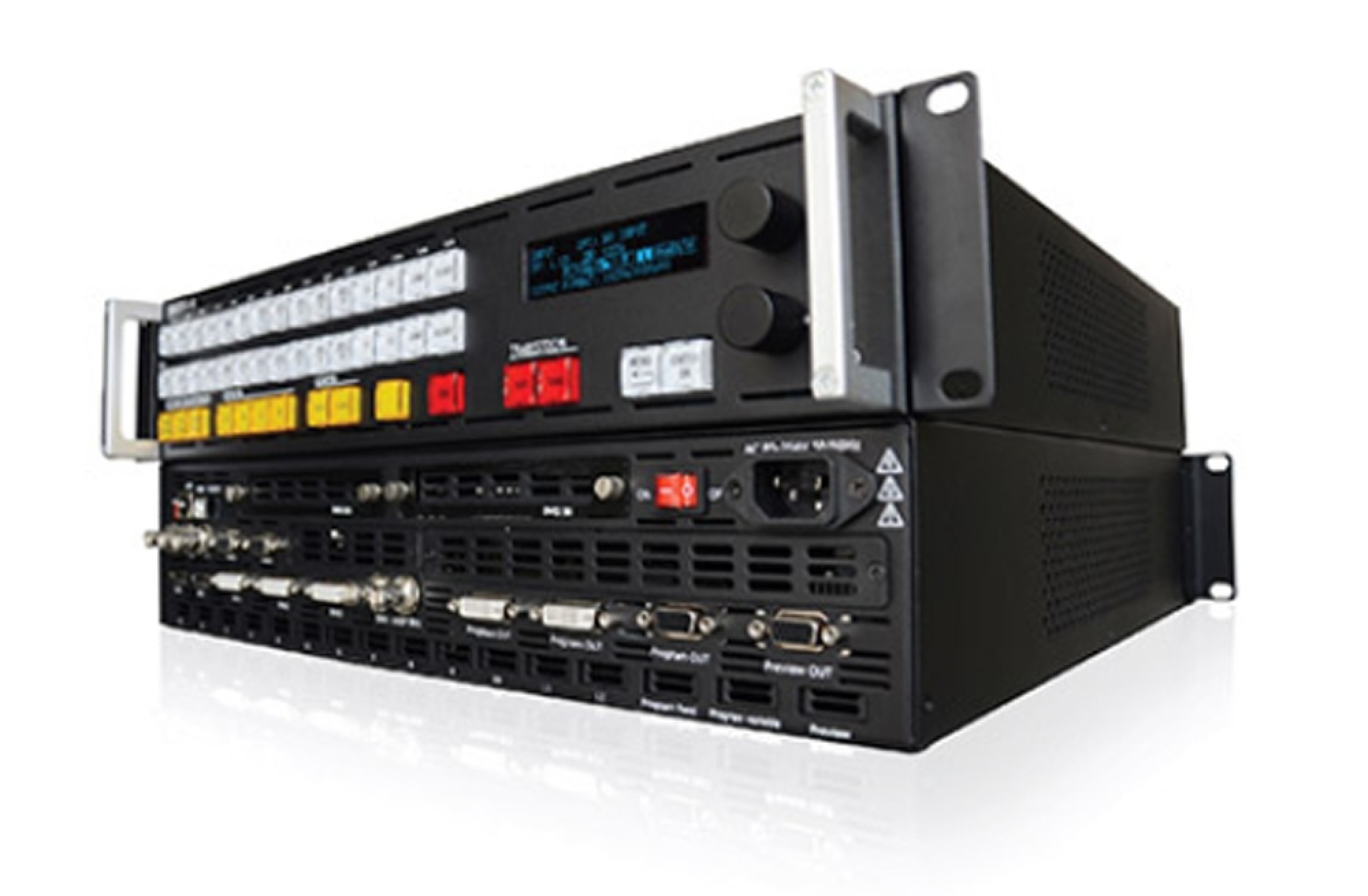

RGBLink VSP5360 4 Layer Present LED Video Switch Processor Features:
VSP 5360 is a landmark product which combines video processing algorithm CSMXP of RGBlink. The processor supports seamless switching between 14 ធាតុចូល, DSK for subtitle overlay, preview and program separately, 1 ទៅ 4 layers layout and seamless switching, multiple cascade with sync splicing.
VSP 5360 is based on module based design, can easily expansion input interfaces including USB inputs for media files play, and it supports more outputs with Genlock input for multiple sync control.
VSP 5360 launches the new milestone for video scaler and switcher by introducing the latest 10 bit motion adaptive de-interlace, advance noise reduction and detail enhancement core processor.
VSP 5360 also release with flexible PIP,PBP,seamless switching, cross and frame rate conversion with pixel based scale and zoom engine up to 4K×2K. VSP 5360 can be widely applied to switcher and scale market, especially for the best presentation.
VSP 5360 can works with CP 2048, operation will enjoy well with the T-BAR and joy sticker and also the quantities presets for in field loading directly.
RGBLink VSP5360 4 Layer Present LED Video Switch Processor Parameters:

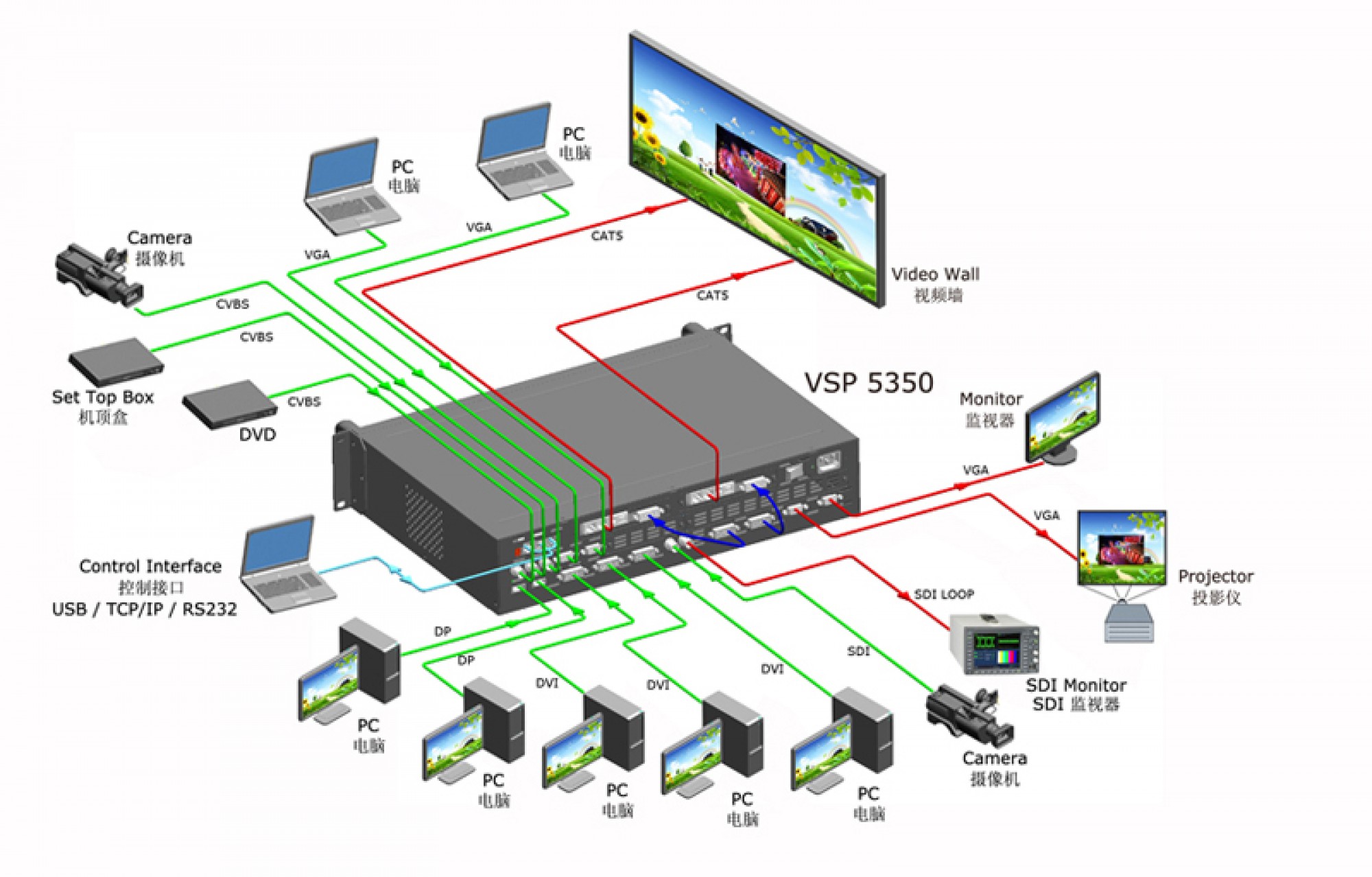

| បញ្ចូល | 3 x CVBS |
| 2 x VGA | |
| 3 x DVI (រន្ធ HDMI 1.3 ) | |
| 2 x ច្រកបង្ហាញ | |
| 1 x SDI (3G-SDI) | |
| 2 x SDI/VGA/DVI/USB (ម៉ូឌុល SDI/VGA/DVI/USB) | |
| ទិន្នផល | 1 x SDI LOOP |
| 2 x DVI | |
| 2 x VGA | |
| 2 x SDI LOOP (Optional module) | |
| ប្រតិបត្តិការ | ប្រតិបត្តិការបន្ទះខាងមុខក្នុងតំបន់ |
| ពីចម្ងាយ RS232, យូអេសប៊ី, ការគ្រប់គ្រង UDP/IP | |
| ទំហំសុទ្ធ | 485mmx450mmx89mm |
| ទំហំកញ្ចប់ | 630mmx585mmx250mm |
| ទម្ងន់សុទ្ធ | 8.1គក |
| ទំងន់កញ្ចប់ | 13.3គក |
| សីតុណ្ហភាពការងារ | 0°C ~ 40 ° C |
| សំណើមដែលទាក់ទង | 10%~85% |
