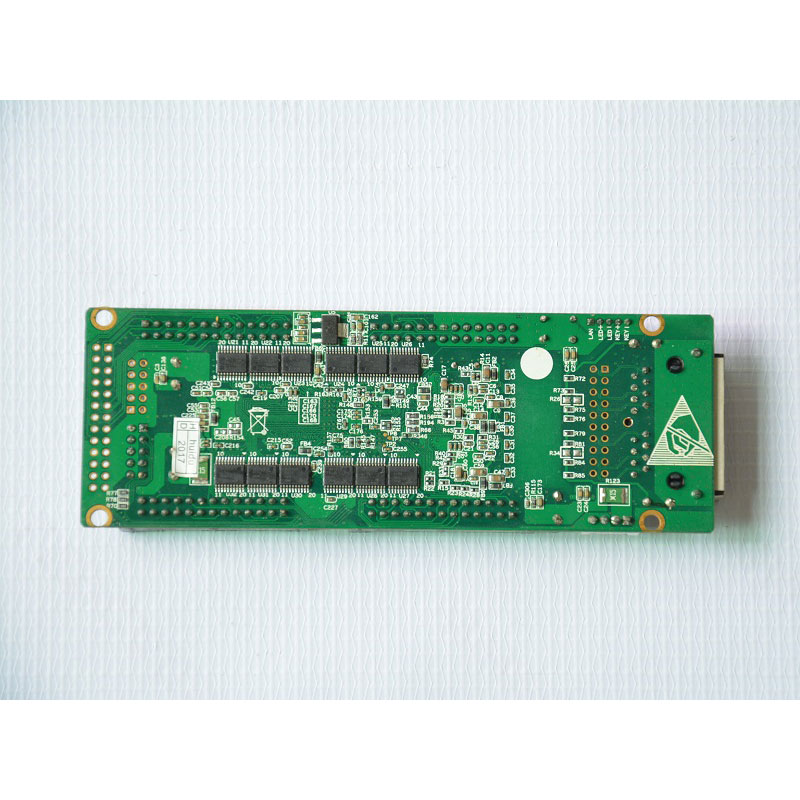

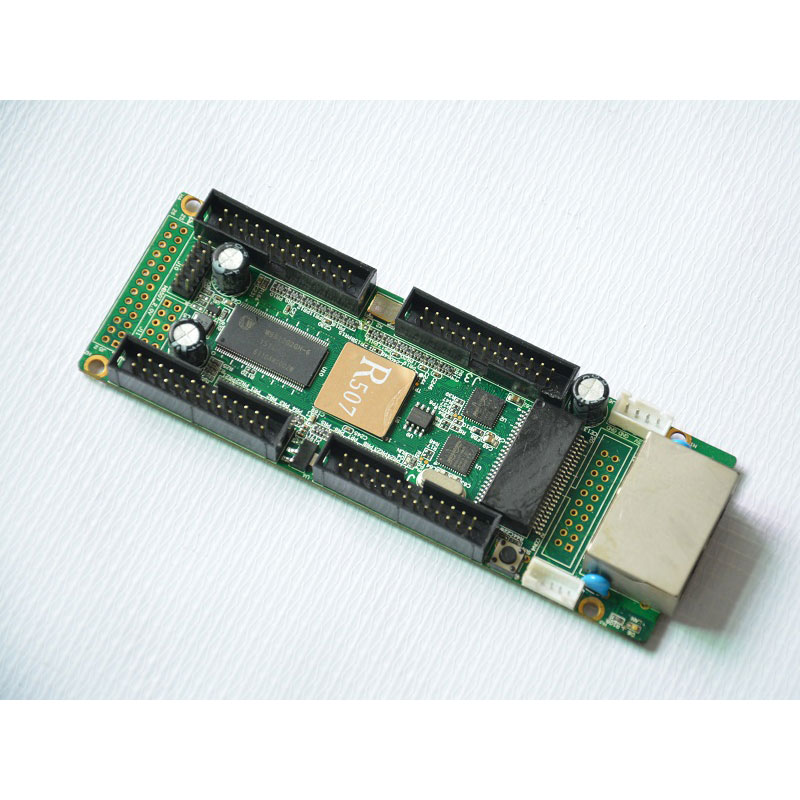

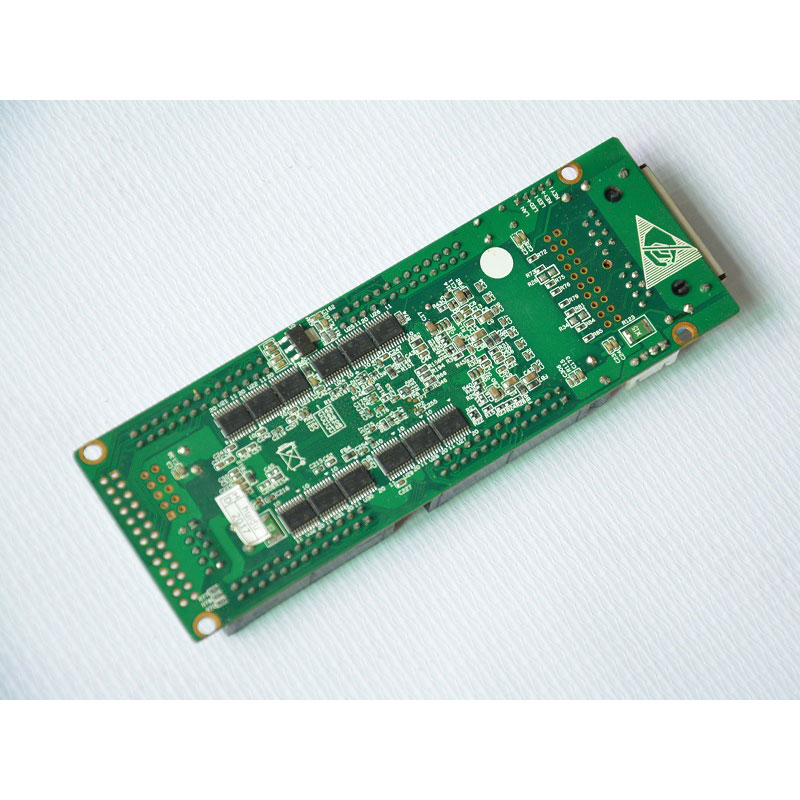

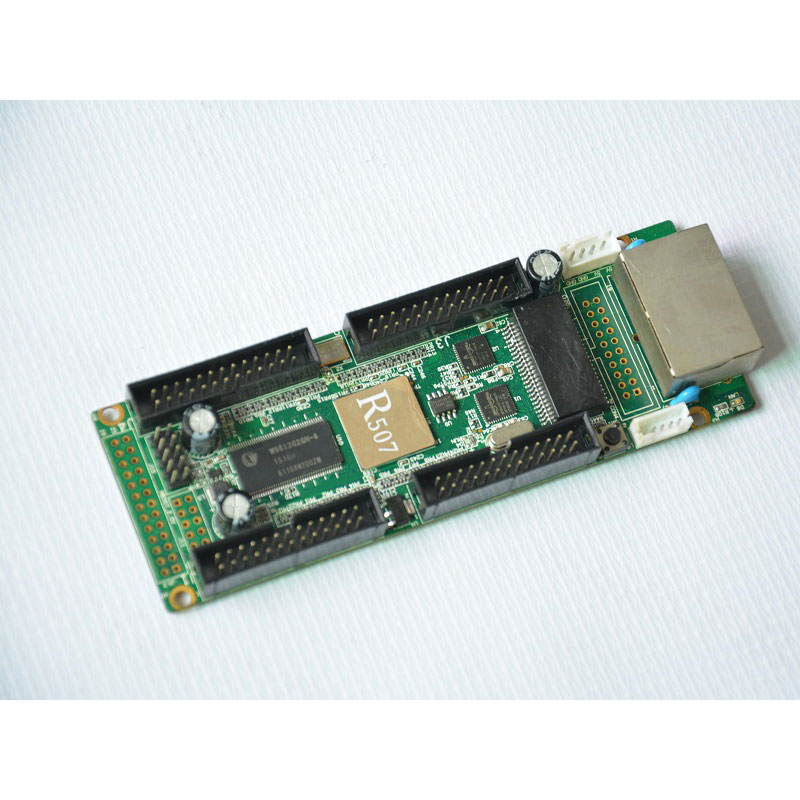

HUIDU HD-R507 LED Panel Receiving Card.
ការពិពណ៌នា .
| Working ways | Used in Sending card HD-A601/602/603 Series, HD-C10/C30series,HD-A30/A30+ Series |
| Suitable Modules types | ក្នុងផ្ទះ & outdoor full-color & single/dual color module Support MBI5041/5042、MBI5050、MY9221、MY9268 etc PWM |
| របៀបស្កេន | ឋិតិវន្ត, 1-32 scan randomly |
| ទំនាក់ទំនង | Gigabit Network |
| 1pcs of receiving card support areas | ក្រៅ: 256W*256H |
| Receiving cards sequence | Sequence randomly, and it can recognize the sequence by software or set up sequence by hand.
Receiving card connected speed by nanoseconds |
| មាត្រដ្ឋានពណ៌ប្រផេះ | 0-65536 |
| Smart set | Smart set by few simple steps, through display routine setting ,it could suit almost different PCB routine |
| Play contents | Play video、animation、រូបភាព、អត្ថបទ、excel、PPT、time、counter etc |
| មុខងារសាកល្បង | It have self test button, could test modes of red、បៃតង、ខៀវ、white、ប្រផេះ、oblique line、ក្រឡាចត្រង្គ、spots etc |
| សៀគ្វីទទេ | គាំទ្រ |
| ចម្ងាយទំនាក់ទំនង | 150m use CAT5E OR CAT6 Cable (From Sending card to Receiving card) |
| ច្រក | 2pin 5V Power x1,Gigabit port x2??0pin HUB x2 |
| វ៉ុល | 4V-6V |
| សីតុណ្ហភាពការងារ | -40℃-85 |
