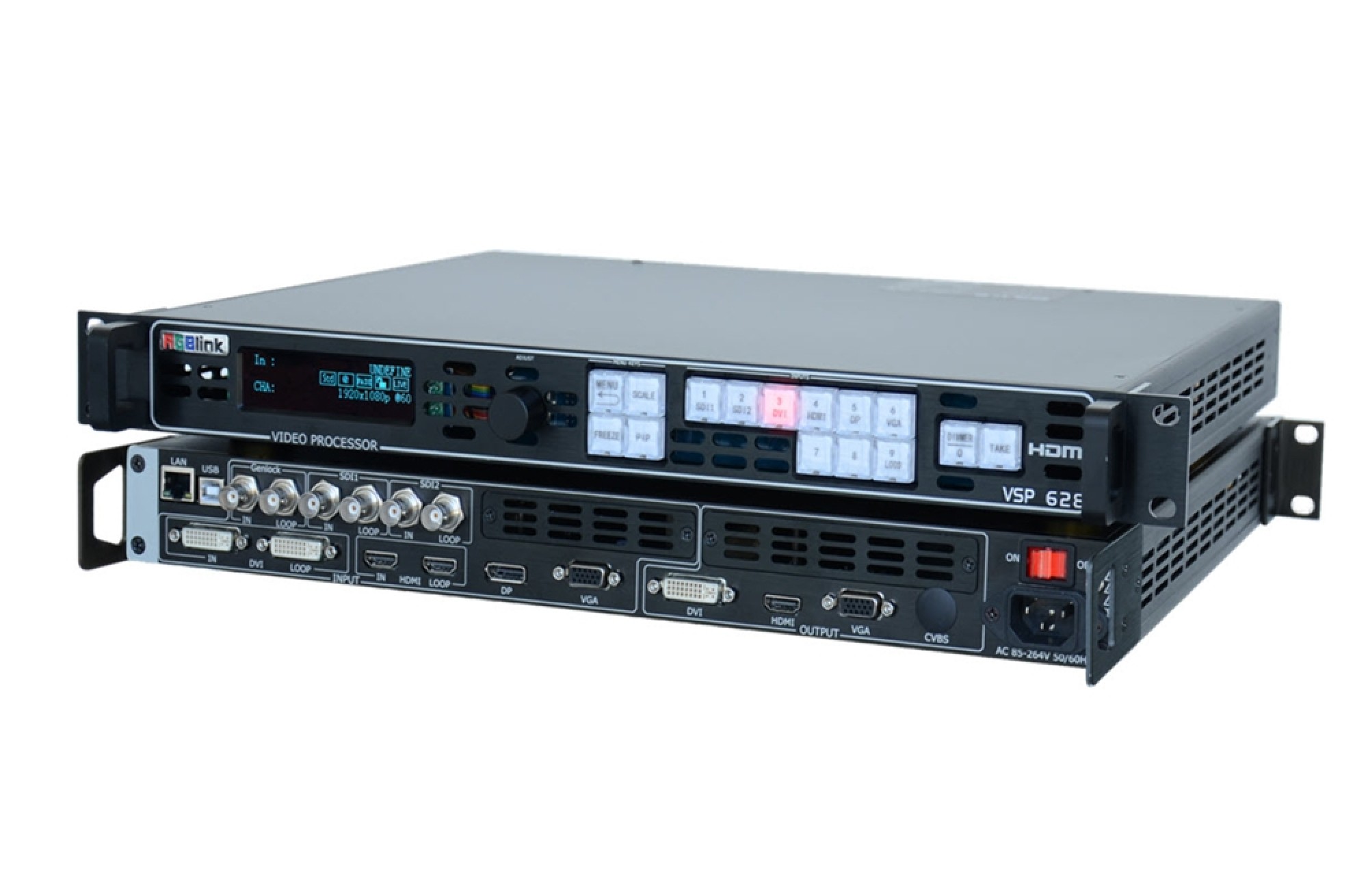

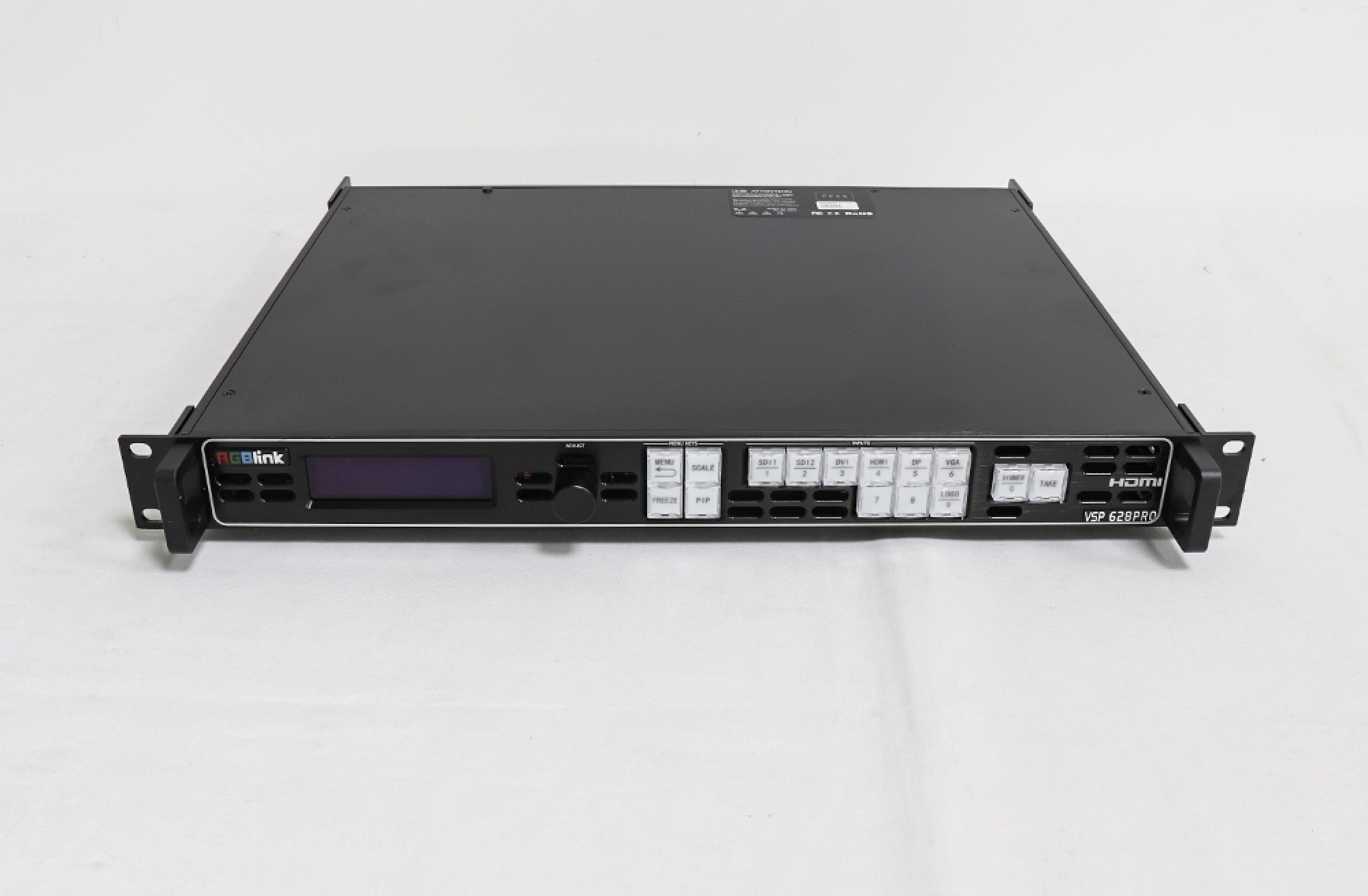

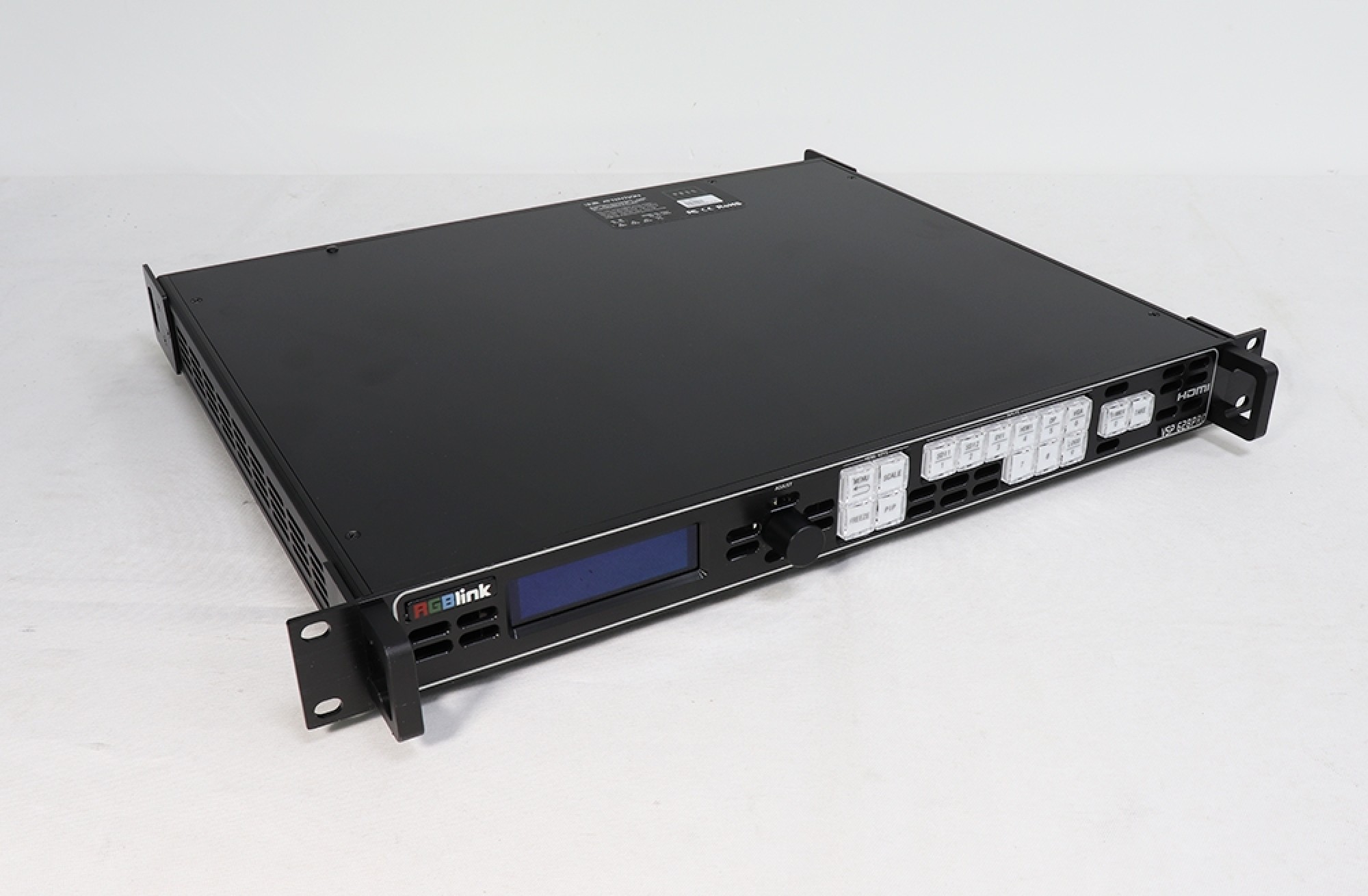

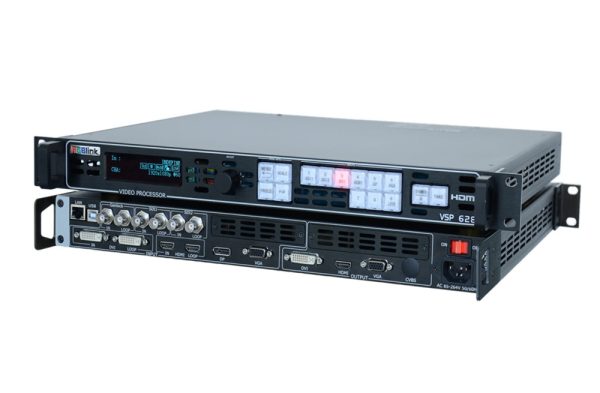

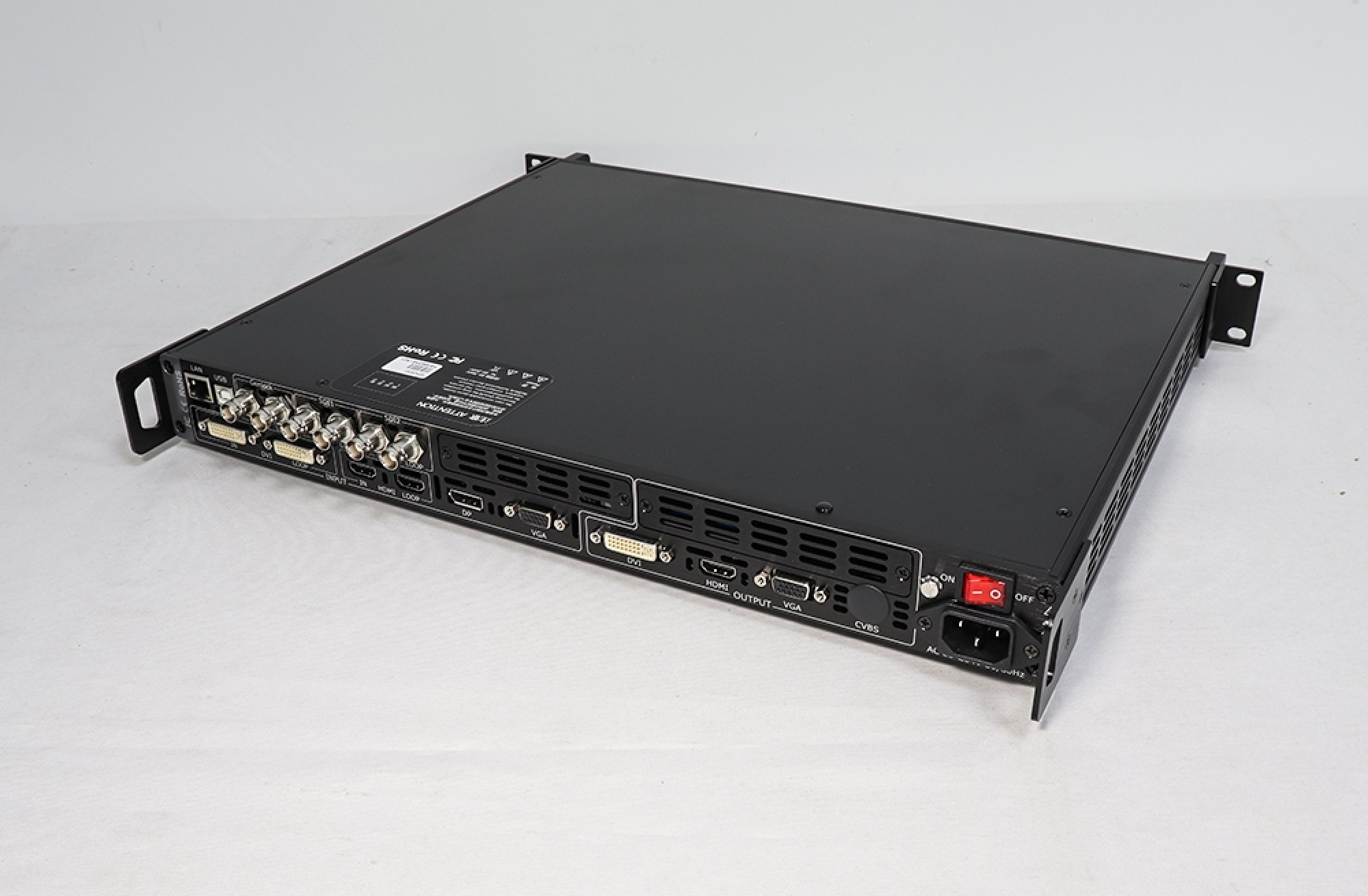

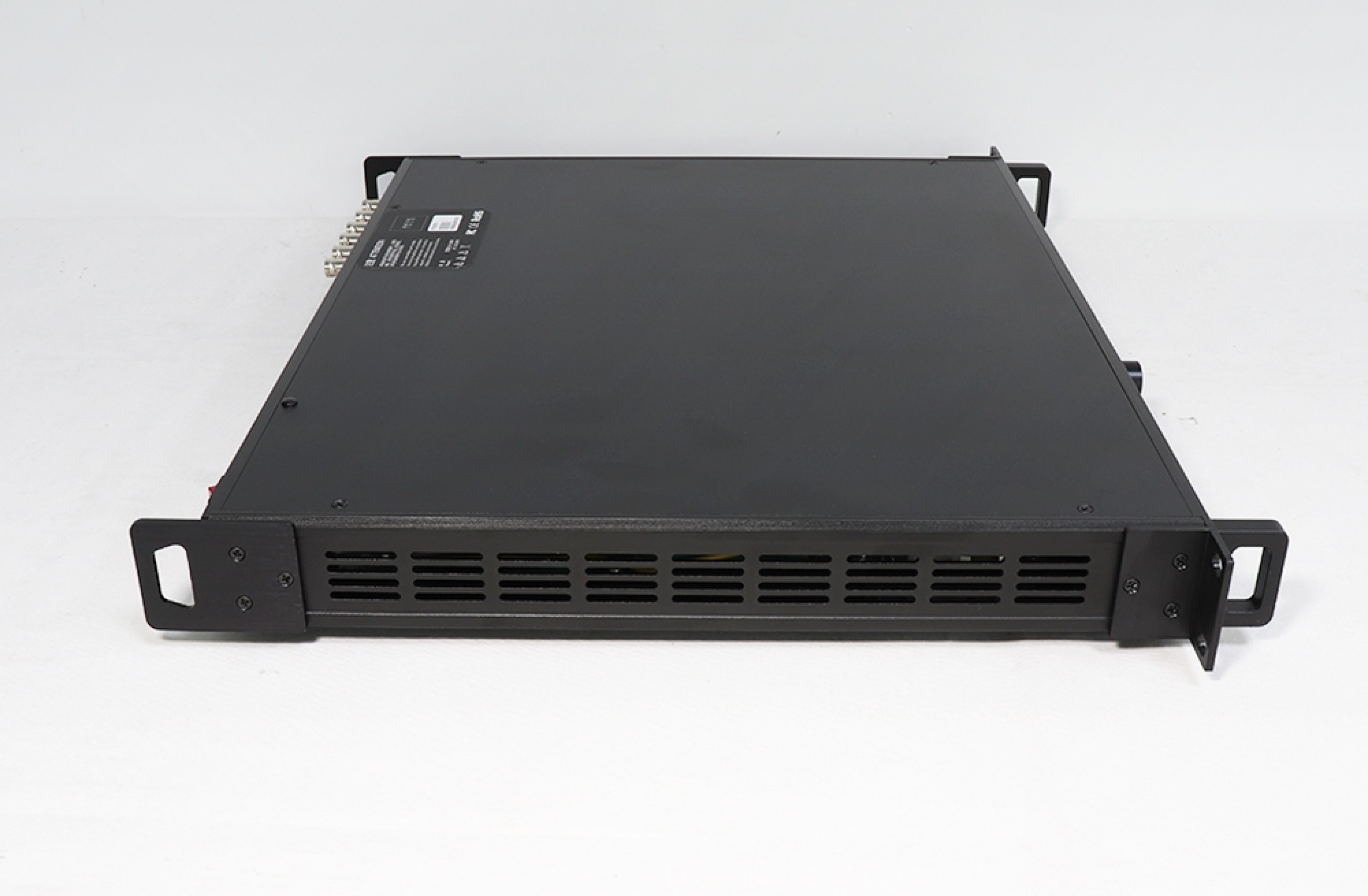

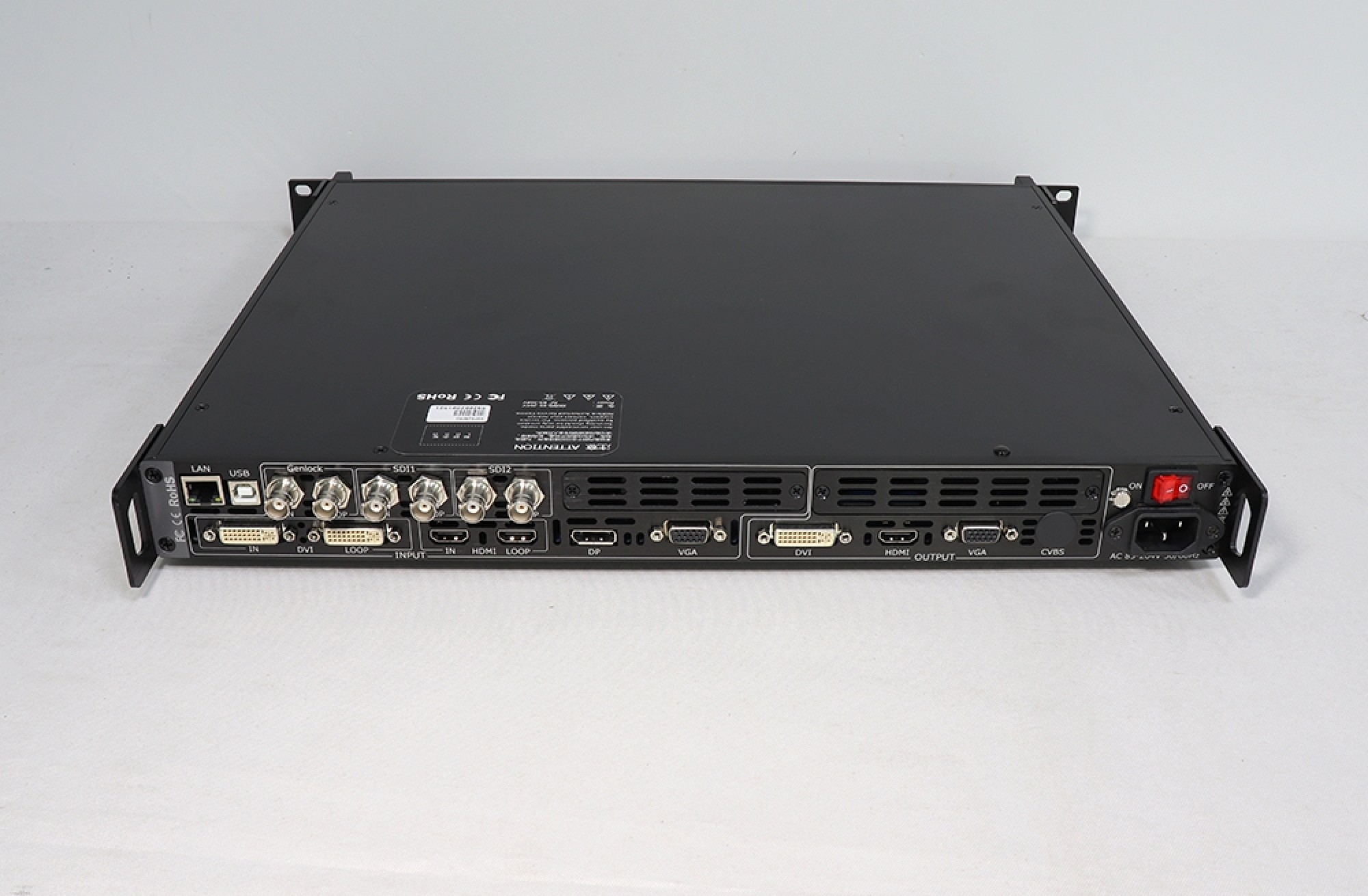

RGBLink VSP628Pro HD Video Scale Switch Zoom LED Video Processor Features:
VSP 628PRO is an advanced high performance all-in-one video scaler, scan converter, switcher and transcoder converting any input signal format to any output signal format.

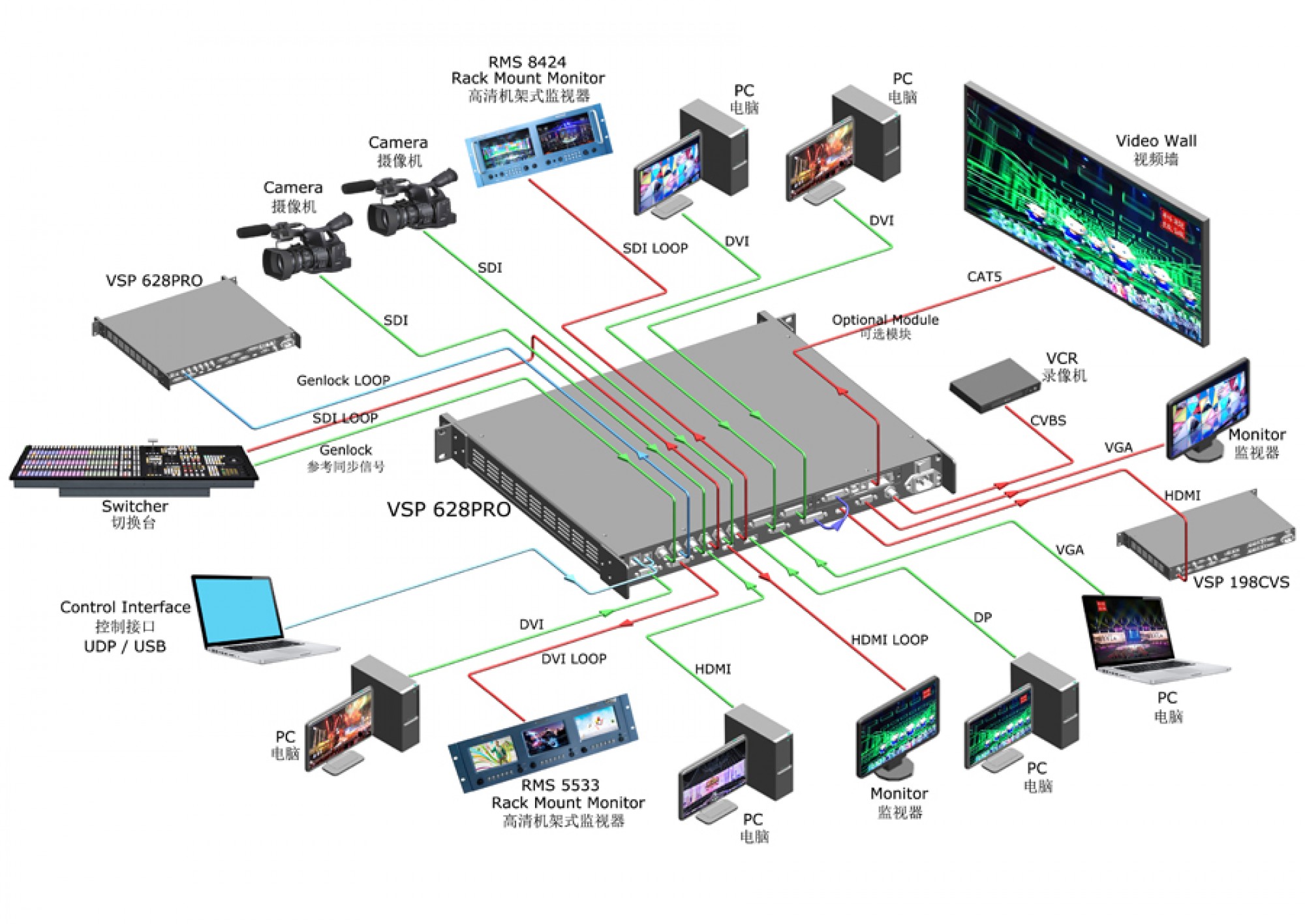

VSP 628PRO supports composite, component, VGA, DVI, HDMI, DisplayPort and SD/HD/3G-SDI signal formats. Loop-through outputs are provided for the DVI and SDI input and Genlock signals. With features like LOGO capture and standard test pattern built in, 3D processing, HDCP and EDID management, Web page control interface seamless switching between the inputs, VSP 628PRO is one of the most advanced and flexible signal processor in the industry.
VSP 628PRO is based on module based structure, its standard version comes with all the features you need and expect to find in old versions. In addition to the standard features, with different modules, you can reach more possibility and application range.
RGBLink VSP628Pro HD LED Video Processor Video Scaler, Switcher, Zoom Parameters:

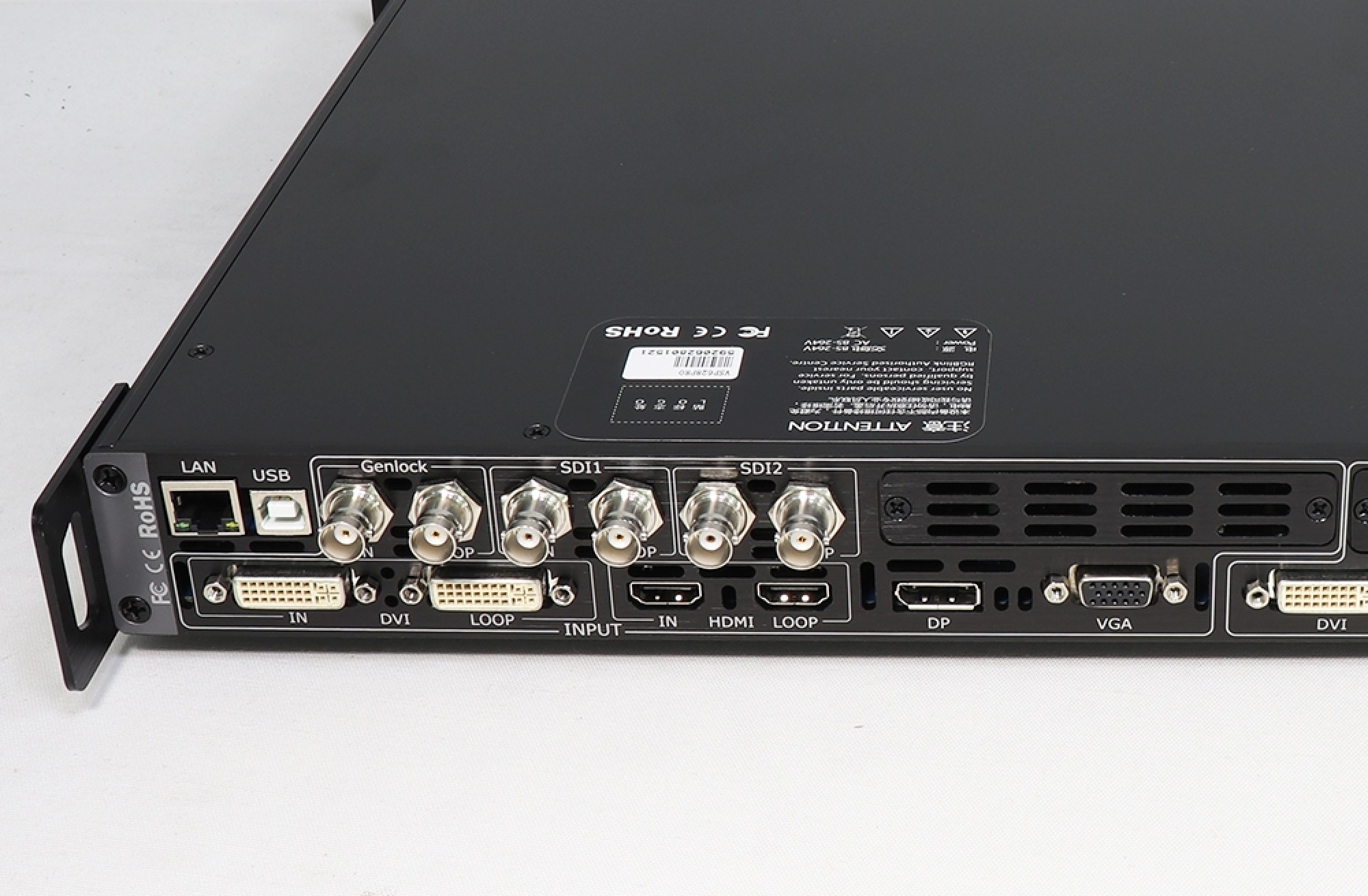

| 入力 | 1 x Genlock(ループ付き) |
| 2 ×SDI(each with loop) | |
| 1 ×DVI(ループ付き) | |
| 1 ×HDMI(ループ付き) | |
| 1 ×VGA | |
| 1 x Displayport | |
| 2xSDI(Each with loop)-SDI Option Module | |
| 2×(VGA/DVI/HDMI/USB/CVBS)- VGA/DVI/HDMI/USB/CVBS Option Module | |

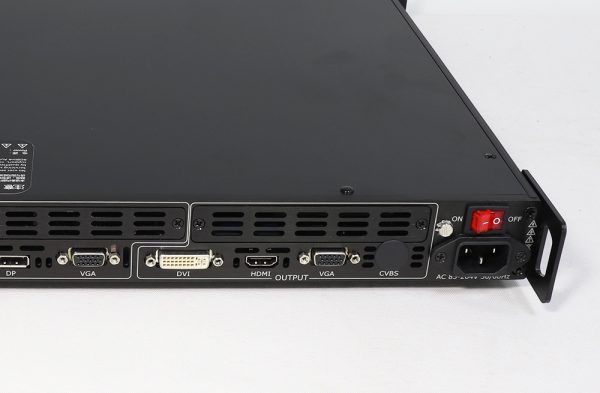

| 出力 | 1 ×DVI |
| 1 ×HDMI | |
| 1 ×VGA | |
| 1 x CVBS-CVBS Option Module | |
| 2 x SDI-OS2 Option Module | |
| 1 x Fiber+SDI+HDBaseT , Fiber Option Module | |
| Communication Ports | LAN TCP/IP |
| USB 2.0 | |
| Net Size | 480mmx403mmx45mm |
| パッケージサイズ | 535mmx455mmx130mm |
| 正味重量 | 3.7kg |
| Package Weight | 6.9kg |
| Work Temperature | 0°C~45°C |
| Relative Humidity | 10%~85% |
