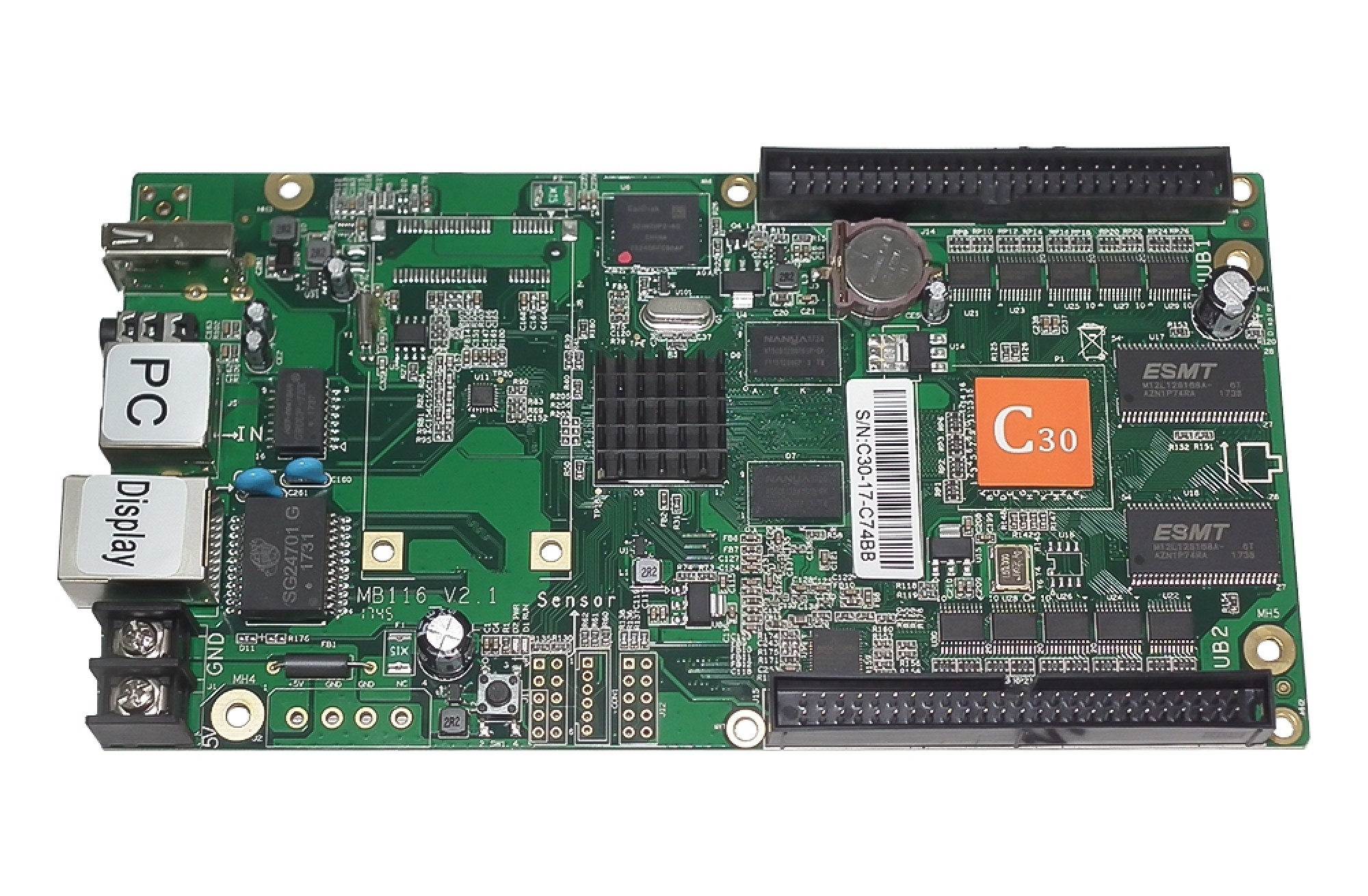

1. Huidu Wireless Fullcolor LED Display Controller Card HD-C30 Led display controller functions
HD-C30 is Asynchronous led display controller, and working no need PC. Playing high definition programs .like video, 画像, アニメーション, 文章, 温度, office file etc. The system include two parts HD-C30 controller and software called HD Player.
Usually one screen with 1pcs HD-C30+1PCS HUB, if the screen is bigger, for best result, user can add R500/R501 cascade connection. So HD-C30 is Full color Asynchronous cascaded controller.
- 2. Device list
| types | model | Main function |
| Full color asynchronous cascade controller | HD-C30 | Asynchronous core controller, with 4Gmemory function, and connected display
Itself also can be used as 1PCS receiving card |
|
受け取りカード |
R500/R501 |
Connected screen, show the program on LED screen |
| Controller software | HD Player | Setting screen parameter, edit and
send program |
| 付属品 | HUB board, cable , Uディスク |
3 Model Selection Reference
Notice: If Display less than 256W*128H, Suggest 1PCS HD-C30+1PCS HUB
If Display 640W*480H, Suggest 1PCS HD-C30 +4PCS R500 or 3PCS R501
If Display 1024W*300H, Suggest 1PCS HD-C30 +4PCS R500 or 4PCS R501
If Display 600W*512H, Suggest 1PCS HD-C30 +4PCS R500 or 3PCS R501
Details Parameter
| Module types | Compatible indoor and outdoor, full color and single/dual color module; Support virtual module; Support PWM chips such as MBI5041/5042、MBI5050、MY9221、MY9268. |
| Scanning mode | Support static scan and 1/32 scan randomly |
| 制御範囲 | 640*480（
1024*300 600*512（ |
| Single receiving card pixels control range | Suggest HD- R500
HD-R501 |
| グレーレベル | サポート 0-65536 調整可能な |
| Program update | Updated by PC, LAN, Internet, Uディスク, or mobile hard disk drive |
|
Showing functions |
ビデオ, 写真, animated Gif, 文章, office document, クロック, timer etc
Support remote control, 温度, 湿度, brightness expansion function |
| Video function | Support hardware video decoder, sending directly, and without transfer code waiting.
Support format AVI、WMV、RMVB、MP4??GP、ASF、MPG、FLV、F4V、MKV、MOV、それ、VOB、TRP、TS、WEBM |
| Picture format | Support BMP、GIF、JPG、JPEG、PNG、PBM、PGM、PPM、XPM、XBM etc |
| 文章 | Support for text editing, picture insertion and support word、TXT、rtf、html direct importing. |
| Document | Support Office2007 such as DOC、DOCX、XLSX、XLS、PPT、PPTX document format. |
| クロック | Support analog clock, digital clock, A variety of dial clock |
| 音声出力 | Standard dual channel stereo output |
| Memory capacity | On board Flash 4GB
Allows users to use U-disk memory expansion |
| Communication type | 100M network Port RJ45, Internet, or LAN |
| 動作温度 | -20-80 |
|
ポート |

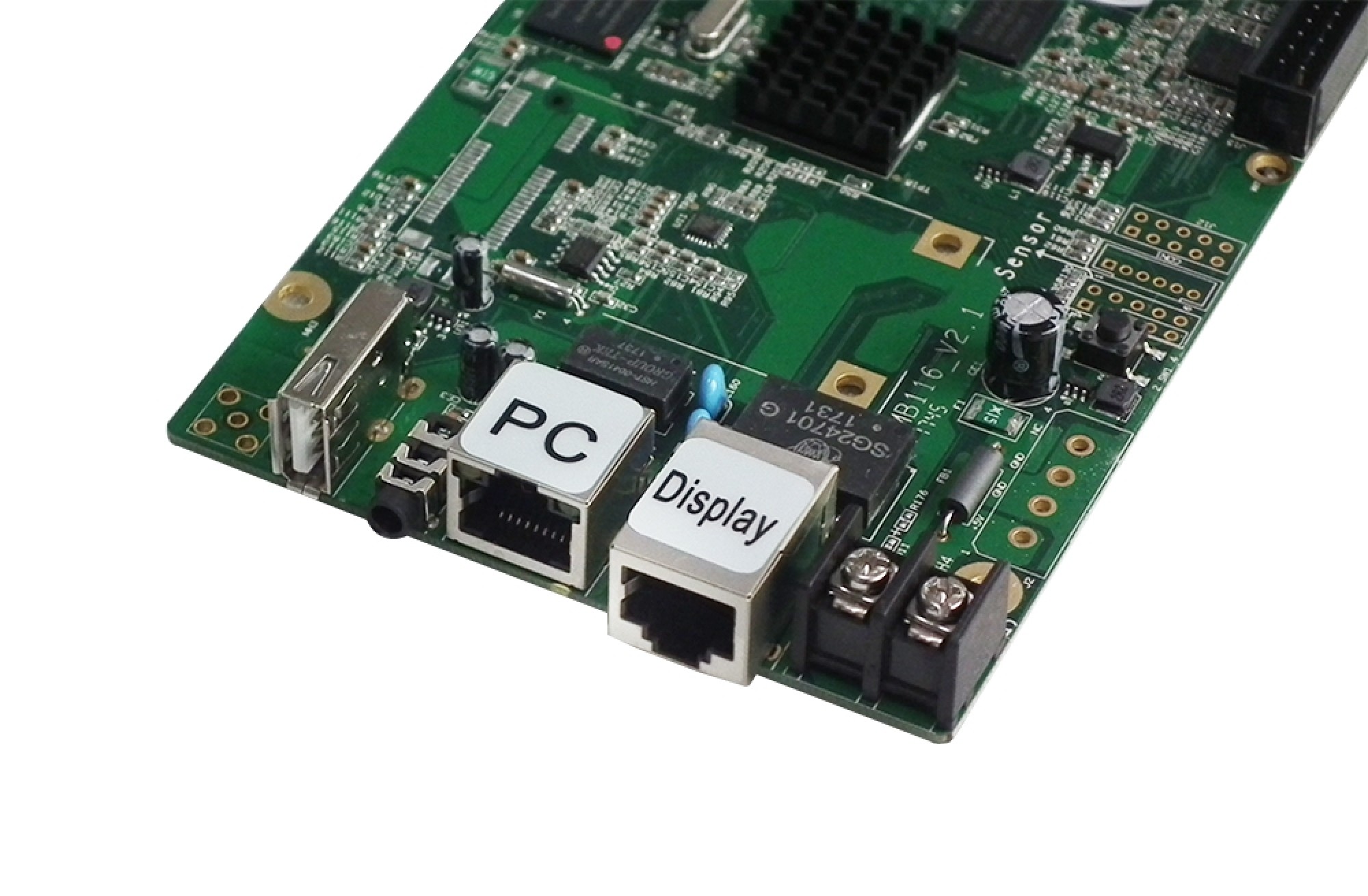

で: 5V power supply terminal X1, 10/100M RJ45 x1，USB 2.0 ×1，The screen test button X1
OUT:1000M RJ45 x1，dual stereo: AUDIO x1 , 2 の 50 PIN |
| 動作電圧 | 4.5V~5.5V |
| ソフトウェア | HDプレーヤー |
