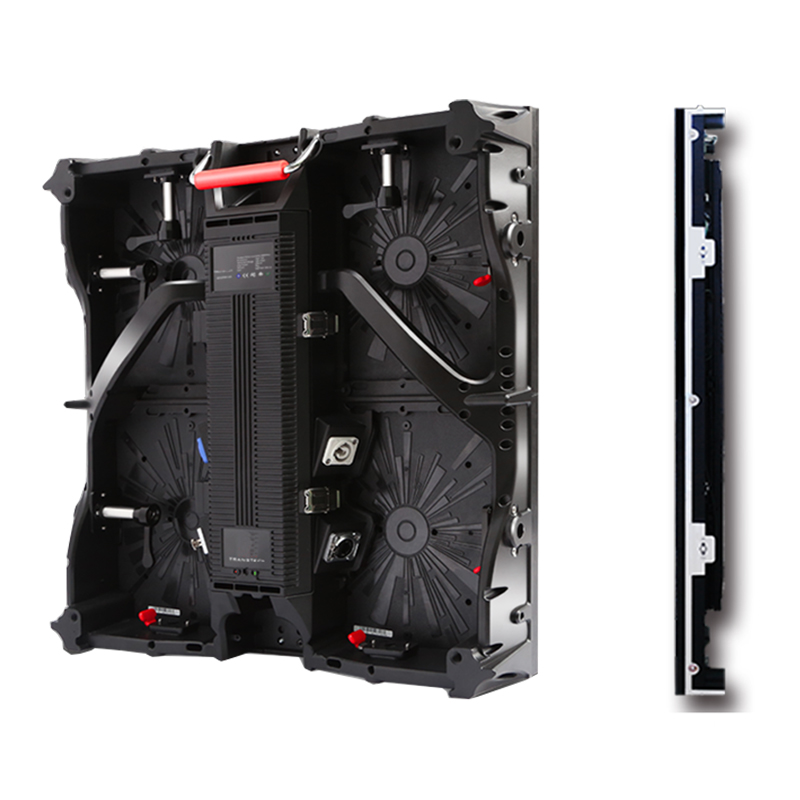

P2.976 Outdoor Rental LED Screen 500mmx500mm LED Display Cabinet Details
- 2 Ane Garanti
- Alyaj Manyezyòm
- Gid teknoloji gratis
- 5% Pati rezèv, Pwovizyon pou pouvwa, Kat reseptè yo enkli.
- Tan plon: 15-21 jou travay.
- Pake：Ka vòl
- Customized: Si genyen bezwen espesyal sou gwosè, lanp, IC oswa lòt demann, pls kontakte nou.
| P2.976 Outdoor Rental LED Screen 500mmx500mm LED Display Cabinet Specification | |||||||
| Andedan kay la | Deyò | ||||||
| Piksèl anplasman | 2.604mm | 2.976mm | 3.91mm | 4.81mm | 2.976mm | 3.91mm | 4.81mm |
| Piksèl pou chak kabinè (pwen) | 192×192 | 168×168 | 128×128 | 104×104 | 168×168 | 128×128 | 104×104 |
| Rezolisyon modil (pwen) | 96*96 | 84*84 | 64*64 | 52*52 | 84*84 | 64*64 | 52*52 |
| Mwayèn konsomasyon pouvwa (W/m²) | 320 | 300 | 280 | 250 | 320 | 300 | 280 |
| Maksimòm konsomasyon pouvwa (W/m²) | 640 | 620 | 600 | 580 | 640 | 620 | 600 |
| Serviceability | Sèvis devan ak dèyè | Sèvis dèyè | |||||
| Evalyasyon IP | IP54 | IP65 | |||||
| Klète | 1000 nits; | 6500 nits; | |||||
| Gwosè modil | 250*250mm | ||||||
| Pwa / Mosaïque | 7.5 kg / 16.53 liv | ||||||
| Dimansyon | 500 x 500 x 90 mm (WxHxD)/ 19.6 x 19.6 x 3.5 pous (WxHxD) |
||||||
| Rafrechisman pousantaj | 960-1,920Hz | ||||||
| Hor. ang gade | 140° +/-5° (@50% klète) | ||||||
| Vert. ang gade | 140° +/-5° (@50% klète) | ||||||
| Inifòmite klète | >98% | ||||||
| Dimming | 0-100% | ||||||
| Nivo gri | 14 bits | ||||||
| Operasyon pouvwa vòltaj | 100-240V / 50-60Hz | ||||||
| Tanperati operasyonèl | -10°C a +40 °C / 14°F rive 104 °F | ||||||
| Operasyon imidite | 10-80% | ||||||
| Dirije pou tout lavi | 100,000h (videyo 50% klète) | ||||||
| Sètifikasyon | CE, UL, FCC klas A, RoHS, WEE, REACH | ||||||
| Garanti | 2 ane | ||||||
