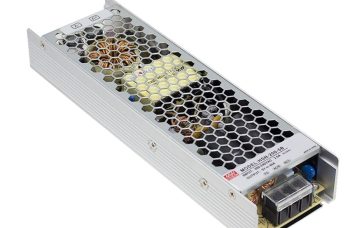

MeanWell HSP-300-5 Switching LED Power Source.
Ka:806 Gwosè:215× 115 × 30mm.
Pouvwa: 300W.
Segondè efikasite jiska 90%.
Fonksyon PFC aktif entegre, PF>0.95.
Endikatè ki ap dirije pou pouvwa sou.
Forced air cooling by built in DC Fan with fan speed control function.
1U ba pwofil 30mm.
Segondè efikasite, Long life and high reliability.
Pwoteksyon: Kout kous / Surcharge / Plis pase vòltaj / sou tanperati.
1 ane garanti.
MeanWell HSP-300-5 Switching LED Power Source Product Specifications :
| Modèl | HSP-300-5 | |
| Antre | Ranje vòltaj | 85~ 264VAC 120~ 370VAC |
| RANJE frekans | 47 ~ 63Hz | |
| KOURAN AC (Typ.) | 3.5A/115VAC 1.5A/230VAC | |
| KOURAN FIT | <2mA / 240VAC | |
| INRUSH KOURAN (Typ.) | COLD START 65A/230VAC | |
| EFIKASANS (Typ.) | 87% | |
| Sòti | RATED KOURAN | 60A |
| VOLTAJ DC | 5V | |
| POUVWA RATED | 300W | |
| RANJE AKTIYEN | 0-60A | |
| VOLTAGE ADJ. RANJE | 4.75~ 5.5V | |
| RIPPLE & BRI (max.) Remak.2 | 100mVp-p | |
| TOLERANS VOLTAJ Note.3 | ± 2.0% | |
| LOAD REGULATION Note.5 | ±1.5% | |
| LINE REGULATION Note.4 | ±0.5% | |
| KANBE TAN | 20ms at full load | |
| SETUP, TAN LEVE | 600ms,40ms at full load | |
| Pwoteksyon | OVER VOLTAGE | 5.5~ 6.75V Kalite pwoteksyon :Shut off 0/p volltage, clamping by zener diode |
| OVER LOAD | Above 150% rated output power Kalite pwoteksyon :Hiccup mode, recovers automatically after fault condition is removed |
|
| Sekirite | RESISTANTE VOLTAJ | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| SAFETY STANDARDS Note 6 | UL60950-1, CB(IEC60950-1),CCC GB4943, 1:2011 apwouve | |
| Izolasyon rezistans | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH | |
| ESTANDA EMC | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, GB9254 | |
| Anviwònman | Imidite travay | 20 ~ 90% RH ki pa kondanse |
| TRAVAY TEMP | -20 ~ +70 (Gade nan koub derating chaj pwodiksyon an) | |
| TEMP. KOEFISYAN | ± 0.03% | |
| TANPERATI DEPO., Imidite | -40 ~ +85 , 10 ~ 95% RH | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1sik, 60min. chak ansanm X, Y, Z aks | |
| Lòt moun | DIMANSYON | 215*115*30mm (L*W*H) |
| MTBF | 1608.8K è min. MIL-HDBK-217F (25 ) | |
| Remak | mwen. Al parameters NOT specialy mentioned are measured at 230VAC input. rated chaj ak 25??nan tanperati anbyen. 2 Ripple & noise are measured at 20MHz Of bandwidth by usig a I2??twisted pair-wire terminated with a 0.1UI & 470 Parallel capacitor 3. Tolerans : includes set up tolerance. règleman liy ak règleman chaj. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 0% pou 100% rated load. 6. For the request of GEl4943.1.the power soppy is only suable for use in the altitude 2000m below and the non tropical climate condrtion. 7. The power supply is considered a component which will be instated into a final equipment The final equipment must be re-confirmed that it still mesh EMC drectives. For guidance on how to perform the EMC tests. please refer to ‘EMI testing of component power supplies |
|
