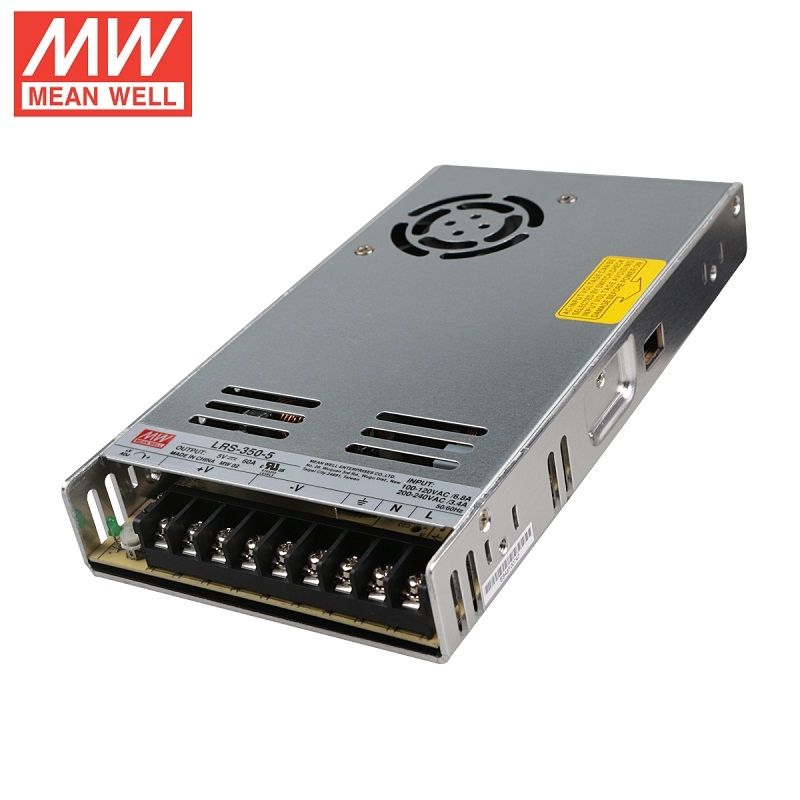

MeanWell LRS-350-5 Switching LED Video Screen Power Supply (5V 60A 300W).
Spis:806 Veličina:215×115×30 mm.
Vlast: 300W.
100% test sagorijevanja pri punom opterećenju
Universal AC input/ full range
Ugrađena aktivna PFC funkcija, PF>0.95
Zaštite: Short circuit/ Over load/ Over voltage
LED indikator za uključenje
1 godina garancije
UL prošao
MeanWell LRS-350-5 Switching LED Video Screen Power Supply Product Specifications :
| Model | LRS-350-5 | |
| Ulazni | Voltage Range | 85~ 264VAC 120~ 370VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| AC CURRENT (Tip.) | 3.5A/115VAC 1.5A/230VAC | |
| STRUJA CURENJA | <2mA / 240VAC | |
| URADNA STRUJA (Tip.) | COLD START 65A/230VAC | |
| UČINKOVITOST (Tip.) | 83% | |
| Izlaz | NAZIVNA STRUJA | 60A |
| DC NAPON | 5V | |
| NAZIVNA SNAGA | 300W | |
| TRENUTNI RASPON | 0-60A | |
| VOLTAGED ADJ. RANGE | 4.5~ 5.5V | |
| MREŠKANJE & BUKA (max.) Napomena.2 | 150mVp-p | |
| VOLTAGE TOLERANCE Note.3 | ±2,0% | |
| LOAD REGULATION Note.5 | ±1.5% | |
| LINE REGULATION Note.4 | ±0,5% | |
| DRŽAJTE VRIJEME | 20ms at full load | |
| POSTAVKA, RISE TIME | 600ms,40ms at full load | |
| Zaštita | OVER VOLTAGE | 5.75~ 6.75V Vrsta zaštite :Shut off 0/p volltage, clamping by zener diode |
| OVER LOAD | Above 150% rated output power Vrsta zaštite :Hiccup mode, recovers automatically after fault condition is removed |
|
| Sigurnost | PODNOSITI NAPON | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| SAFETY STANDARDS Note 6 | UL60950-1, CB(IEC60950-1),CCC GB4943, 1:2011 odobreno | |
| OTPOR IZOLACIJE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH | |
| EMC STANDARDI | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, GB9254 | |
| Environment | RADNA VLAGA | 20 ~ 90% RH non-condensing |
| RADNA TEMP | -20 ~ +70 (Refer to output load derating curve) | |
| TEMP. KOEFICIJENT | ± 0.03%/ | |
| STORAGE TEMP., VLAŽNOST | -40 ~ +85 , 10 ~ 95% RH | |
| VIBRACIJA | 10 ~ 500 Hz, 2G 10min./1cycle, 60min. svaki duž X, Y, Z osi | |
| Drugi | DIMENZIJA | 215*115*30mm (D*Š*V) |
| MTBF | 1608.8K hrs min. MIL-HDBK-217F (25 | |
| Bilješka | ja. Al parameters NOT specialy mentioned are measured at 230VAC input. rated load and 25??of ambient temperature. 2 Mreškanje & noise are measured at 20MHz Of bandwidth by usig a I2??twisted pair-wire terminated with a 0.1UI & 470 Parallel capacitor 3. Tolerance : includes set up tolerance. line regulation and load regulation. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 0% do 100% rated load. 6. For the request of GEl4943.1.the power soppy is only suable for use in the altitude 2000m below and the non tropical climate condrtion. 7. The power supply is considered a component which will be instated into a final equipment The final equipment must be re-confirmed that it still mesh EMC drectives. For guidance on how to perform the EMC tests. please refer to ‘EMI testing of component power supplies??/td> |
|
