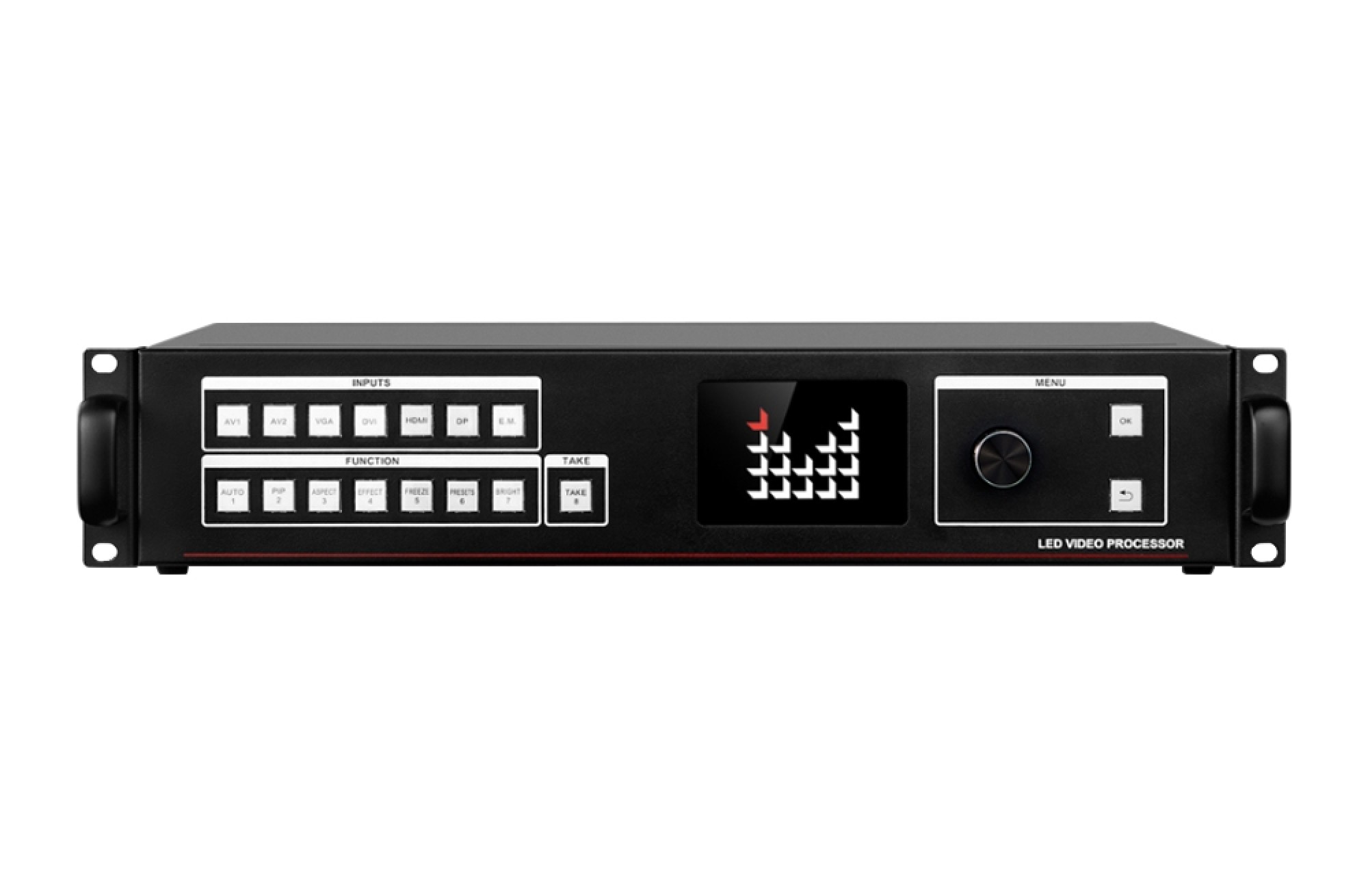

Magnimage LED-570E HD Video LED Processor Features:
Parameter of Magnimage LED-570E HD Video LED Processor:
| Technical Specification | |||
| इनपुट संकेतक | |||
| पत्तन | मात्रा | Resolution Standard | |
| का | 2 | दोस्त、एनटीएससी、SECAM | |
| वीजीए | 1 | वेसा | |
| डीवीआई | 1 | वेसा | |
| HDMI | 1 | EIA/CEA-861，HDMI-1.3/1.4 | |
| डी पी | 1 | DisplayPort 1.1 | |
| SDI* | 1 | 480i/60Hz | |
| आउटपुट संकेतक | |||
| पत्तन | मात्रा | Resolution Standard | |
| 2K×1K | |||
| 1024×768/60Hz 1280×1024/60Hz | |||
| 1280×720/50Hz/60Hz 1440×900/60Hz | |||
| 1600×1200/60Hz 1600×1200/60Hz-Reduced | |||
| 1680×1050/60Hz 1920×1080/60Hz | |||
| *वीजीए | 1 | 1920×1200/60Hz 2048×1152/60Hz | |
| 1536×1536/60हर्ट्ज़ | |||
| 2K×2K | |||
| 2560×1024/60Hz 2560×1440/60Hz | |||
| 3840×1080/60Hz 1920×1080/100Hz | |||
| 1920×1080/50Hz 2560×816/60Hz | |||
| 2304×1152/60Hz 1024×1280/60Hz | |||
| 2560×1600/60Hz 1080×3840/60Hz | |||
| 1920×1080/120Hz | |||
| डीवीआई | 2 | ||
| Customized output resolution（bandwidth optimization）： maximum width is 3840 and maximum height is 3840 | |||
| डी पी | 1 | ||
| 480i/59.94Hz 480i/60Hz | |||
| 576i/50Hz 720p/50Hz 720p/60Hz | |||
| SDI* | 1 | 1080i/50Hz 1080i/59.94Hz 1080i/60Hz | |
| 1080p/23.94Hz 1080p/24Hz | |||
| 1080p/25Hz 1080p/29.97Hz | |||
| 1080p/30Hz 1080p/50Hz | |||
| 1080p/59.94Hz 1080p/60Hz | |||
| *VGA is 2K x 1K standard resolution, SDI is a expansion port | |||
| इकाई विशिष्टता | |||
| बिजली की आपूर्ति | 100-240वीएसी | ||
| उपभोग | 40डब्ल्यू | ||
| परिचालन तापमान | 0~45 | ||
| उत्पाद का आयाम | 482.6 एक्स 304.0 X 88.0mm | ||
| शुद्ध वजन | 4.5किग्रा | ||
| LED-570E Series | |||
| Extended Module | नमूना | विवरण | |
| इनपुट | वीजीए | LED-570EV | The extended input port is VGA |
| डीवीआई | LED-570ED | The extended input port is DVI | |
| एसडीआई | LED-570ES | The extended input port is SDI and loop | |
| उत्पादन | डीवीआई | LED-572E | The extended output port is DVI |
| वीजीए | LED-573E | The extended output port is VGA and DVI | |
| एसडीआई | LED-575E | The extended output port is SDI | |
