Colorlight X3 Professional LED Screen Display Controller

Colorlight X3 Professional LED Screen Display Controller Overview

X3 is a professional LED display controller. It possesses powerful video signal receiving and processing capacities, and supports HD digital signals, in which the maximum input resolution is 1920×1200 pixels. It supports HD digital ports including HDMI and DVI, and seamless switching between signals. It supports arbitrary scaling and cropping of video sources.

X3 adopts 4 יציאות Gigabit Ethernet, and it supports LED displays of 4096 pixels in maximum width or 2560 pixels in maximum height. Meanwhile, X3 is equipped with a series of versatile functions, which have many advantages in applications of manufacture and engineering.

Colorlight X3 Professional LED Screen Display Controller Features:

·Video input ports including 1× HDMI, 2×DVI;

·Supports input resolution up to 1920×;

·Loading capacity:2.60 מיליון פיקסלים,Maximum Width/Height: 4096 pixels/2560 pixels;

·Supports arbitrary switching of video input, and the image can be zoomed freely;

·Dual USB2.0 for high speed configuration and easy cascading;

·Supports splicing and cascading among several controllers with synchronization strictly;

·Supports brightness and chromaticity adjustment;

·Supports improved gray-scale at low brightness;

·Supports HDCP1.4??/ע>

·Compatible with all receiving cards, multifunction cards, optical fiber converters of Colorlight.

Colorlight X3 Professional LED Screen Display Controller Parameter

Input Interface
HDMI	HDMI 1.4 Standard, supports 1920× supports HDCP
DVI 1	DVI 1.0 Standard, supports 1920× supports HDCP
DVI 2	DVI 1.0 Standard, supports 1920× supports HDCP

ממשק פלט

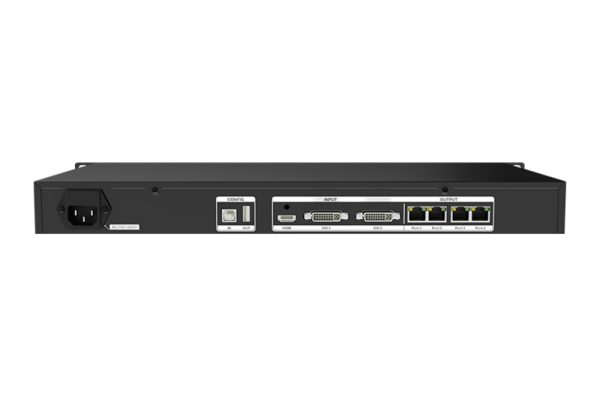

Port1/2/3/4	RJ45, 4 יציאות Gigabit Ethernet

Controlling Interface
USB_OUT	USB output, cascading with the next controller
USB_IN	USB input, which connects with PC to configure parameters

מפרטים
גודל	1U standard box
מתח נכנס	AC 100~240V
צריכת חשמל מדורגת	8W
טמפרטורת עבודה	-40~70
