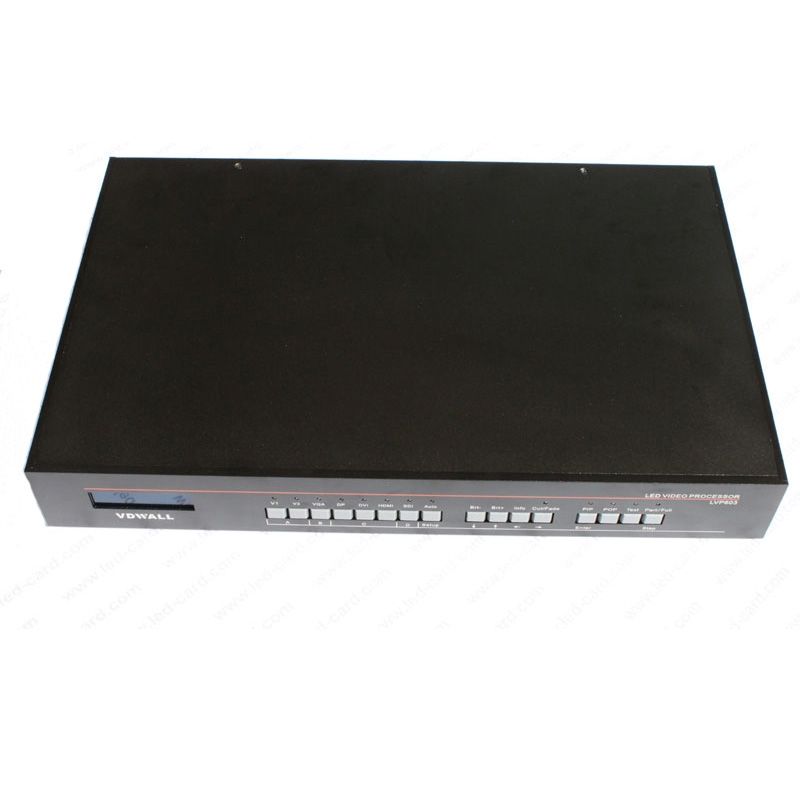

VDWALL LVP603 HD LED Video Processor

VDWALL LVP603 HD LED Video Processor.

LVP603 don’t includes SDI Module, if you want SDI Module, you can order LVP603S.

1. 10+ Bit Faroudja® DCDI Cinema Processing.
2. New Faroudja® Real Color®.
3. Täiustatud 4 × 4 piksli interpolatsiooni skaleerimise algoritm.
4. HD-tekst, Välklamp, Graafika & Logo ülekate.
5. Seamless Switching,Fade-in / Hajumine.
6. Unrestricted HD Picture-In-Picture ( PIP ) & Picture-Off-Picture( POP ).
7. Independent H & V Scaling Ratios.
8. HDMI 1.3a with HDCP, HD 1080p input.
9. SDI / HD-SDI / 3G-SDI ( 1080lk ) Sisend.
10. 1920 x 1080p or 1600 x 1200 output for single machine.
11. Multi-machine in parallel, 6 x 6 in parallel can connect 11520 x 6480 LED screen.
12. Fast 64-level output brightness adjustment.

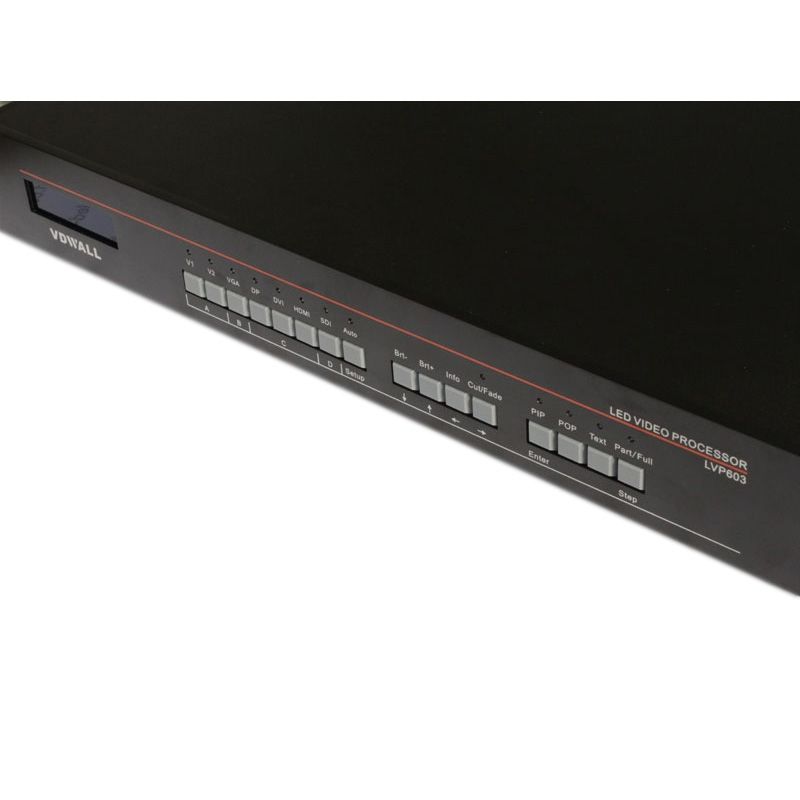

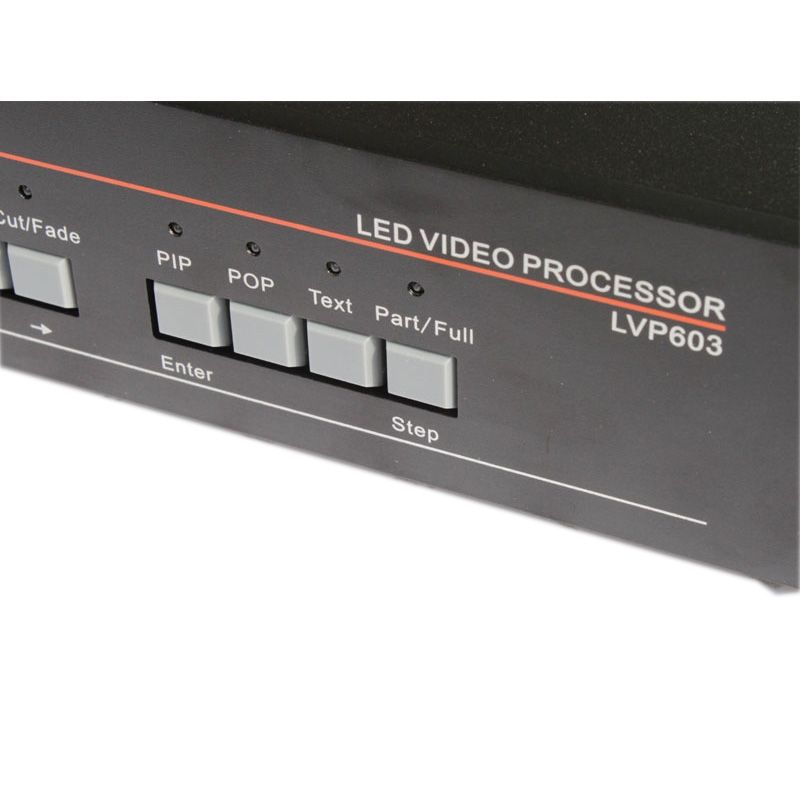

13. Easy setup and adjustment through keys on the panel.

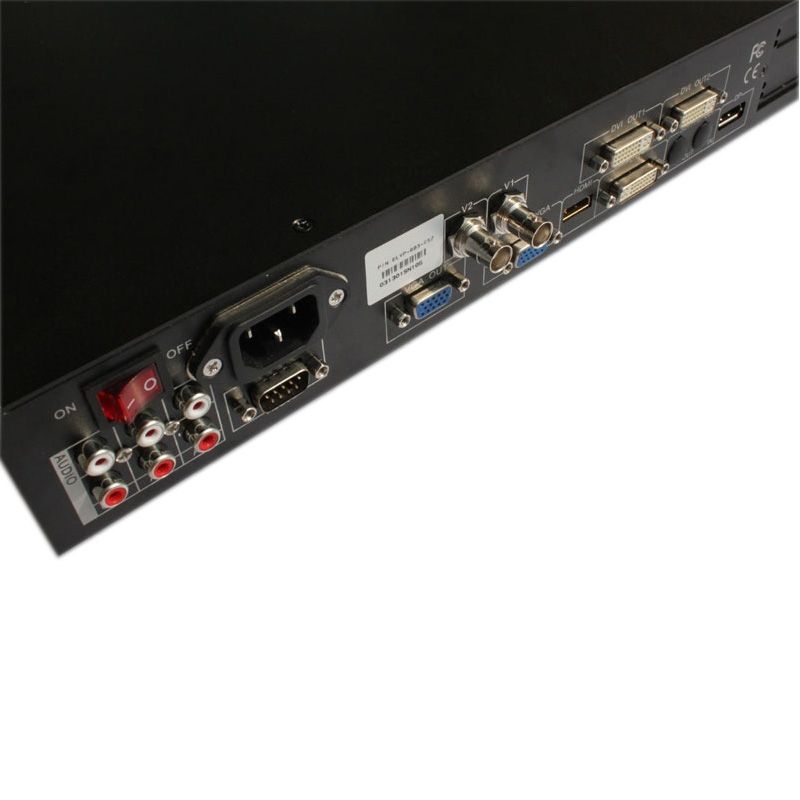

14. Press keys on frontal panel to directly select 7-channel input signal source, sealhulgas:
1 x SDI / HD-SDI 1 x HDMI( HDCP-ga ) 1 x DVI.
1 x VGA 1 x DP( DisplayPort ) 2 x CVBS.
15. 2 kanaleid saab konfigureerida välise stereoheli ühendamiseks, plus DP, HDMI and SDI audio,
there are 5-channel audio for synchronous switch.
16. 2 LED Transmission Cards Built-in ability （The processor does not include the Transmission card.

VDWALL LVP603 HD LED Video Processor.
