VDWALL LVP100 HD LED Video Processor

VDWALL LVP100 HD LED Video Processor.

1. 4 inputs, 2 udgange, dual images, it’s enough for the application requirements to small LED in most cases.

2. It allows an access to set the output resolution to fulfill the size of LED screen.

3.DVI EDID make it possible to set the input resolution freely to make dot-to-dot display successful.

4. PIP / PBP display among any 2 billeder, 3 custom preset dual-images mode.

5.Seamless switching, fade in and fade out switching.

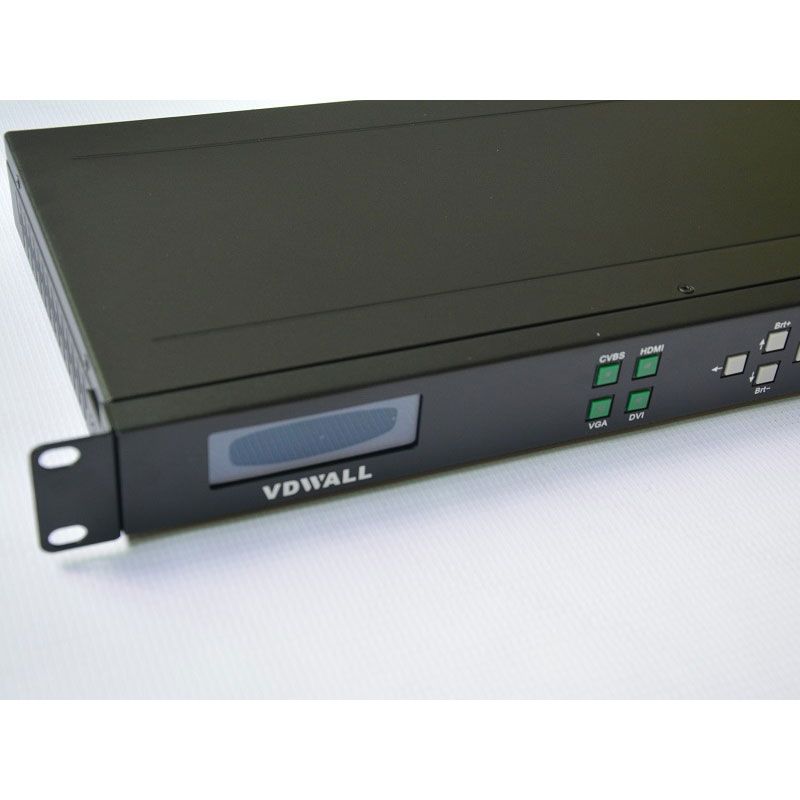

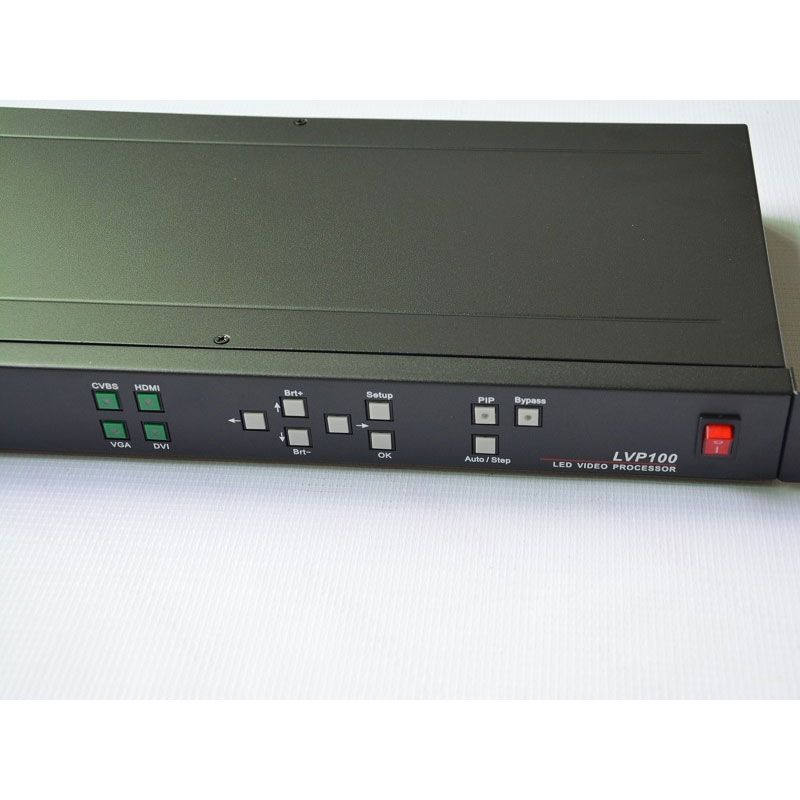

6.Kontrolmetode: operations on front panel buttons, it’s convenient and flexible for front panel users.

7. It is enabled to put 2 sending cards inside.

8. It is enabled to work for seven days a week and twenty four hours a day. High-reliable and stable.

VDWALL LVP100 HD LED Video Processor Specification of Inputs
Quantity/Type	1×CVBS 1×VGA（RGBHV/p> 1×DVI（VESAbr /> 1×HDMI（VESA/CEA-861??/td>
Composite Video Input SYS	PAL / NTSC
Composite Video Amplitude Impedance	1V (p_p) / 75Åh
VGA Format	PC (VESA Standard)	2048×1152_60Hz
VGA Amplitude the impedance	R、G、B = 0.7 V(p_p) / 75Åh
DVI Format	PC (VESA Standard)	60Hz
HDMI Format	PC (VESA Standard)	1920×1080_60Hz
	HDMI 1.3 (CEA-861)	1080p_60Hz

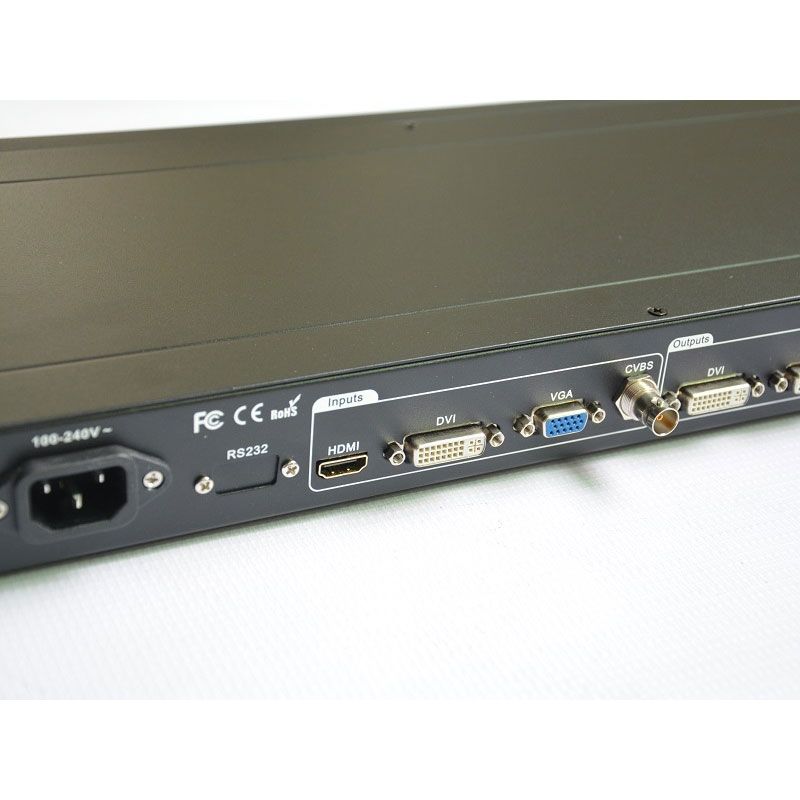

Input Interface	CVBS: BNC VGA: 15pin D_Sub (Female) DVI: 24+1 DVI_D(Female) HDMI: Type-A HDMI port
Specification of Outputs
Quantity / Type	2× DVI
DVI Format	1024×768_60Hz/75Hz 1080×1920_60Hz 1200×1600_60Hz 1280×1024_60Hz/75Hz 1600×1200_60Hz- 1920×1080_50Hz/60Hz- 1366×768_60Hz- 1440×900_60Hz- 1536×1536_60Hz- 1920×1200_60Hz 2048×1152_60Hz 2304×1152_60Hz 2560×816_60Hz
Output Interface	DVI OUT4+1 DVI_D
Andre
Control Ports	RS232 (Valgfri)
Voltage of Input	100-240VAC 50/60Hz
Strømforbrug	15W
Temperature of Environment	0-45
Humidity of Environment	15-85%
Size of Product	482.6 (L) x 200 (W) x 44 (H)mm
Packing Size	535 (L) x 315 (W) x 145 (H)mm
Vægt	G.W.: 4Kg, N.W.: 2.5Kg
Standard accessories	1.5m power cord ×1 1.5m DVI cable ×1 User manual ×1 operations CD ×1 BNC-RCA adapter ×1
Optional accessories	LED sending cards×2
