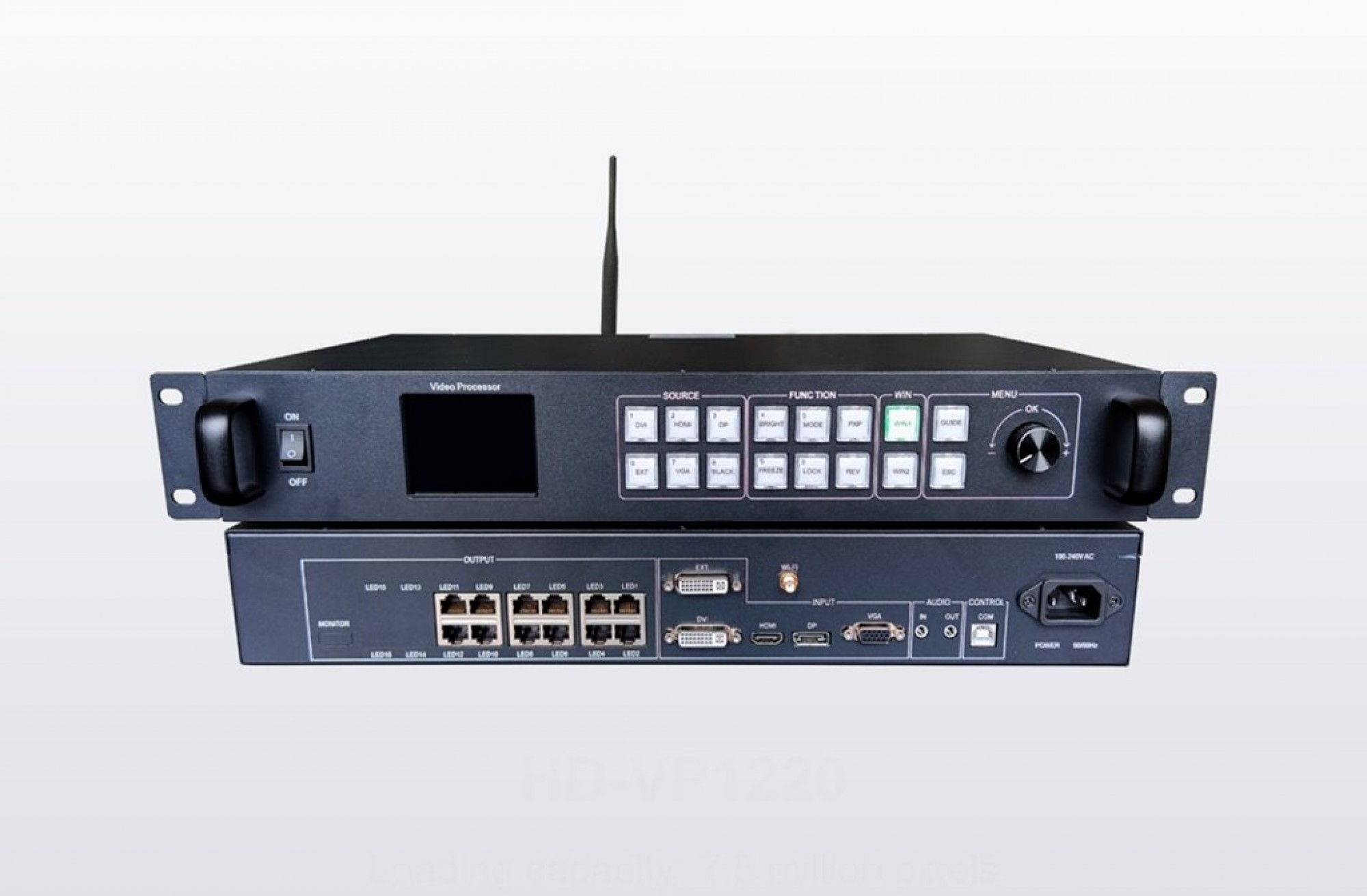

HUIDU HD-VP1220 LED Display All-in-one Video Processor Features.
1）Integrated video processing, funkce odeslání karty, 12 gigabit network port output, total pixels 7.8 million point.
2）The device can be debugged and controlled through panel buttons, USB, Wi-Fi (mobile APP, developing)
HUIDU HD-VP1220 LED Display All-in-one Video Processor Parameters
| Funkce | Parametry |
| DVI Input | Interface form: DVI-I socket
Signal standard: DVI1.0 Rezoluce: standard VESA, PC to 1920×1080, HD to 1080p |
| HDMI vstup | Interface form: HDMI-A
Signal standard: HDMI2.0 backward compatible Rezoluce: standard VESA |
| DP Input | Interface form ：DP
Signal standard:DP1.2backward compatible Rezoluce: standard VESA |
| VGA Input | Interface form: DB15 socket
Signal standard: R, G, B, Hsync, Vsync: 0 to 1Vpp ± 3dB (0.7V Video + 0.3v Sync ) 75 ohm black level: 300mV Sync-tip: 0PROTI Rezoluce: standard VESA, |
| EXTInput | DVI or SDI，Default standard DVI |
| AUDIO IN | Input x1.5mm audio port |
| AUDIO OUT | Output x1.5mm audio port |
| Network port Output | 12-way network port output interface，connected to the acceptance card，total pixels 7.8 milión，Nejširší 16000 tečky, Highest 3840dots. |
| Square USB port (Type B) | Connect to the PC, debug the parameters of the sending card and receiving card, and program upgrades through HDSet software. |
| Wi-Fi | Support mobile phone APP for sending card, receiving card parameter debugging, program upgrade, etc.— developing |
| Power interface | 100-240V~50/60Hz |
| Whole machine power | <=75W |
| Hmotnost | <=3.6kg |
| Velikost??/silný>mm??/silný> | Case size：（Length??82mm*（width??02.8mm*（hight5.5mm |
| Machine case | 1.5U standard industrial chassis |
