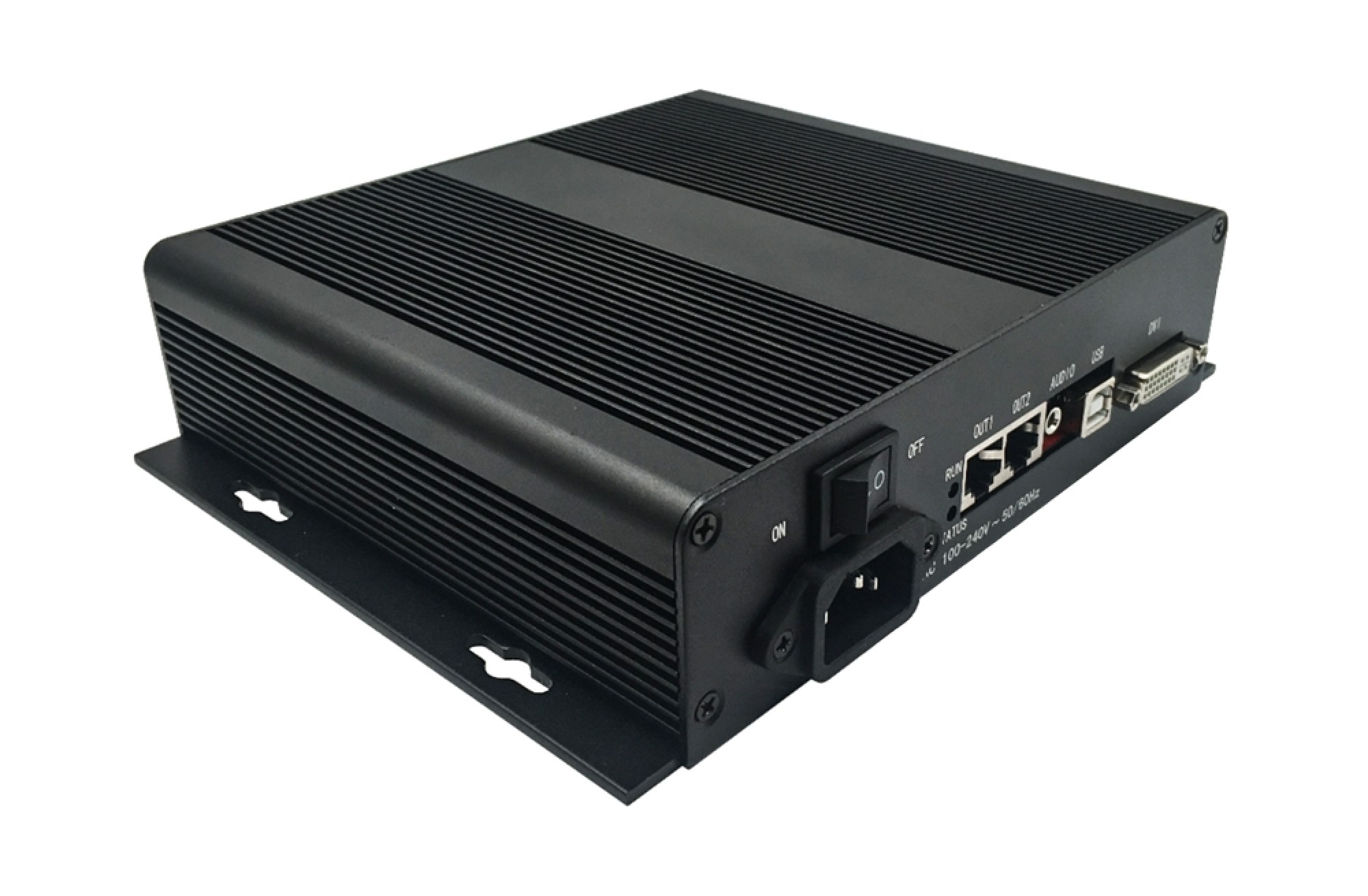

Huidu HD-T901B LED Video Screen Sending Box Overview:
HD-T901B is a synchronous sending box of Huidu, with the R50X series receiving card to connect the LED screen. Má následující vlastnosti
1) 1 DVI video vstup,
2) 2 Gigabit Ethernet port outputs,
3) USB-B control interface which is able to be cascaded for uniform control;
4) cascading multiple units can be unified control. Supporting computer playback control software HDPlayer and debugging software HDSet.
Huidu HD-T901B LED Video Screen Sending Box Features:
1) Support 1~64 scan, compatible with indoor and outdoor full color and single color module.
2) Rozsah ovládání: 130W point, the widest 3840, the highest 2048.
3) One DVI video input.
4) Podporuje až 65536 grayscale level.
5) Support cascading with serial port to configure multiple sending cards, support sending card cascade to control screen in high resolution.
6) Equipped with AC 220V convert to DC 5V device.
Huidu HD-T901B LED Video Screen Sending Box Parameter:
| module type | Compatible with indoor and outdoor full color and single color module; Support MBI, MŮJ, ICN, SM and other PWM chips; Support Conventional chip |
| scanning method | Supports any scanning method from static to 1/64 skenovat |
| Rozsah ovládání | 1280* 1024*,1600*,1920*, 2048*3840 512* 2048*,1600* ,1920* 3840*,1024* atd. |
| Control range in pixel of jediná přijímací karta |
Recommended: R500: 256 (W) * 128 (H) R501: 256 (W) * 192 (H) |
| Stupně šedi | Podpora 0-65536 level adjustable |
| Program update | DVI synchronous display |
| Temperature of working environment |
-20-80 |

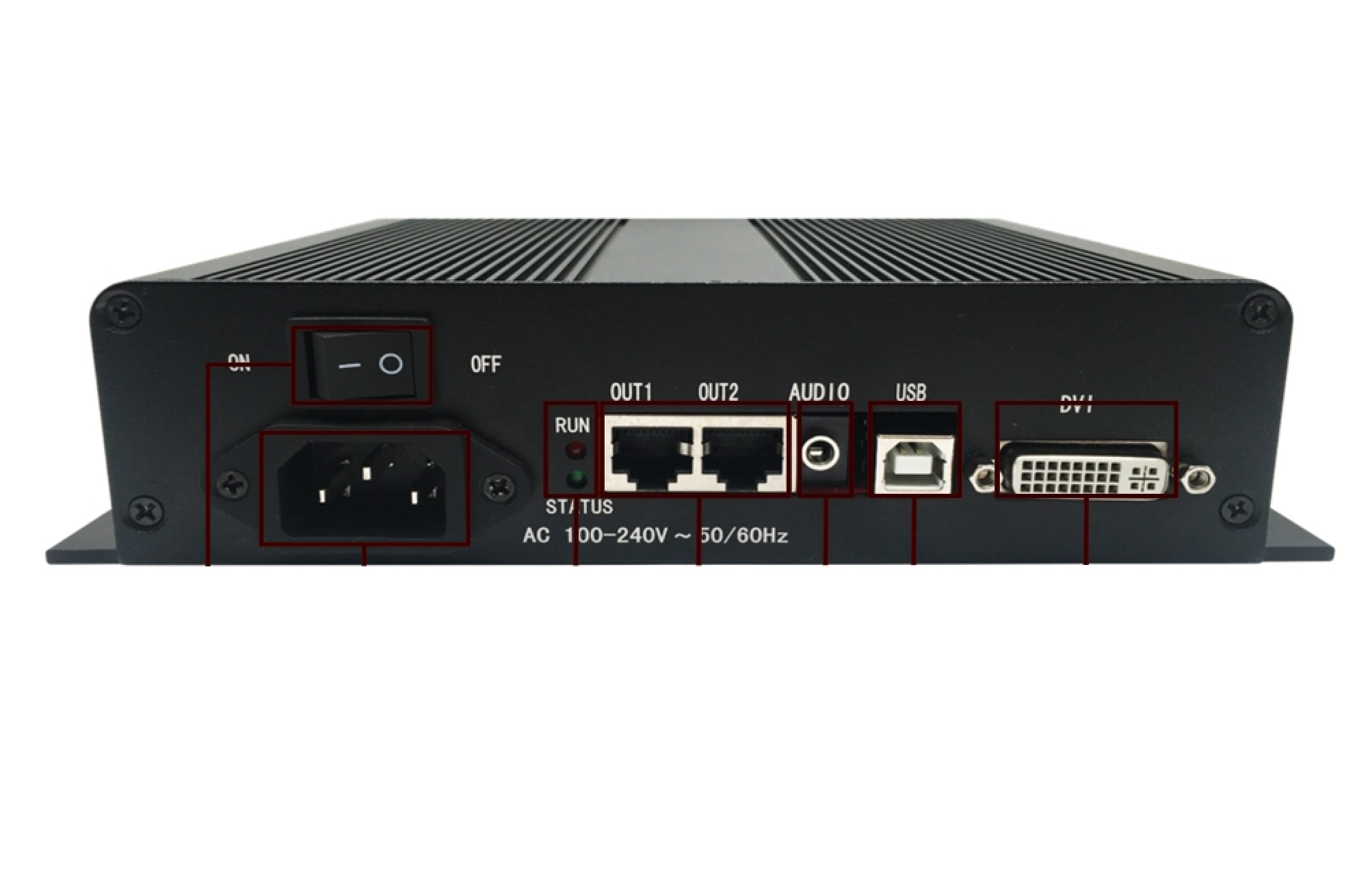

| rozhraní | Vstup: AC 110~220V power supply terminal, DVIx1, USB 2.0 x1Output: 1000M RJ45 x2, serial for cascadingx1 |
| Software | HD přehrávač ,HD Set |
