Free Display of Multiple Output Modes.

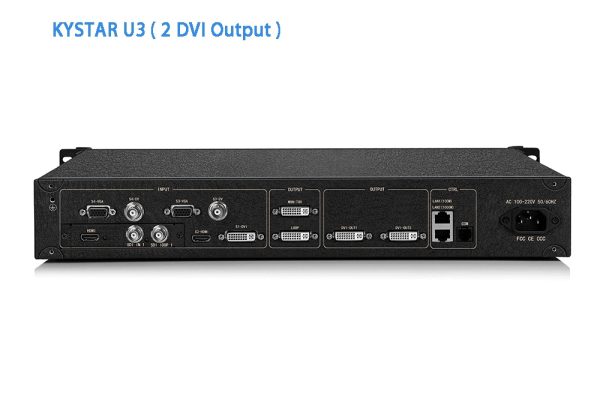

Kystar U3 UHD LED Display Video Processor enjoys two splicing outputs and 1 pre-monitoring output. Met 2.6 mega-pixel user-defined output for a single port in the copy mode, it allows the user to change the aspect ratio and refresh rate of the resolution freely.
Intussen, the U3 splicing mode can be loaded up to 2560×, allowing free splicing of 2X1 and 1X2 by the user based on the site condition
U3Pro is a 4 outputs device that supports horizontal, vertical and cross splicing. Supports user-defined 5. meg-pixel output. It also supports user-define outut resolution, allowing users to freely change aspect radio of resolution and refresh rate.
Multi-format signal processing
Multi-format Signals Processing

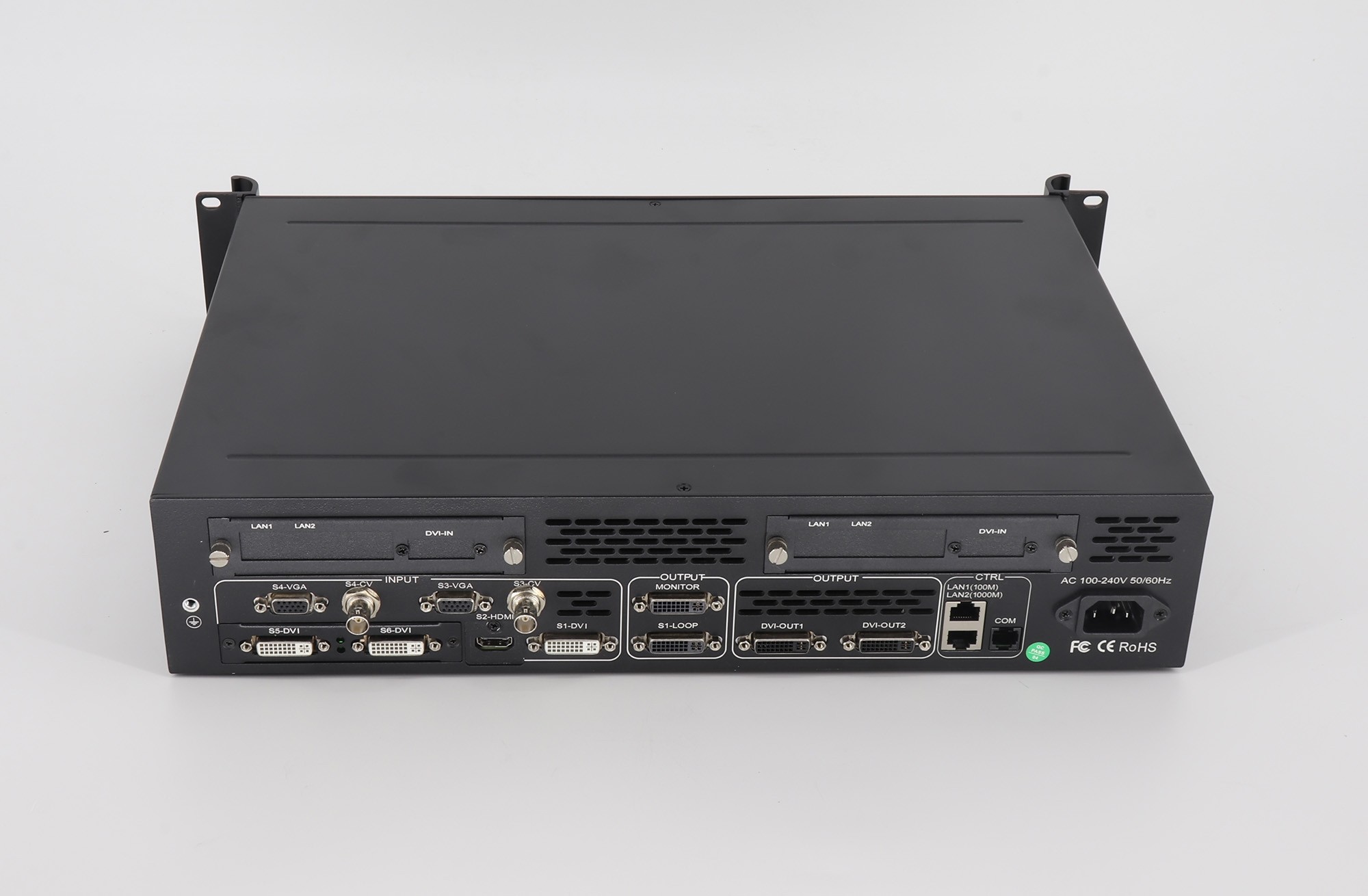

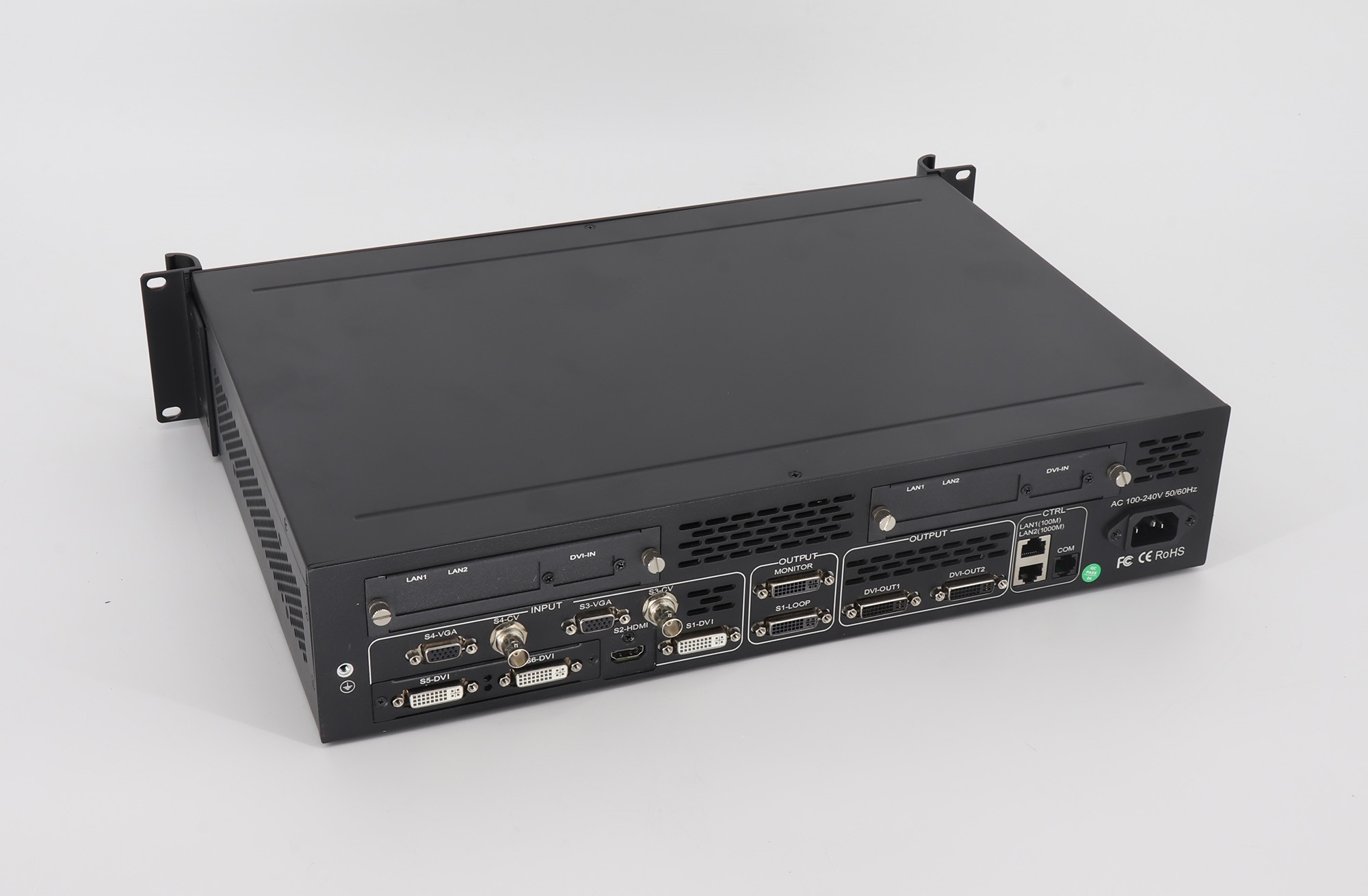

U3/U3PRO is compatible with a variety of input signals : DVI×1, HDMI × 1, VGA×2, CVBS×2, SDI×1 and expansion slot×1.
U3/U3PRO enables the simultaneous display of three windows on a single screen.The size location and hierarchical relationship of each window can be adjusted independently.
4k Processing
Akkommodeer 4k seininvoerterminale insluitend HDMI 1.4 en Dual Link DVI, U3/U3PRO enables an input resolution up to 4096×2160, gerieflike realisering van UHD-vertoning van groot LED-skerms!
Free Display of Three Windows
Images And Texts Overlay
U3/U3PRO is able to generate independent images and texts overlay layer. The user is allowed to overlay pictures or characters on the signal image conveniently with the KYSTAR control software . The overlaid contents can be stored in the equipment.
Multi-skerm kombinasie en spesiale-vormige splitsing
U3/U3PRO can not only display 3 vensters op 'n skerm, maar beheer 3 LED-skerms gelyktydig ook, wat elkeen onafhanklik kan vertoon of in 'n volledige beeld gekombineer kan word. Buitendien, pixel toonhoogte van sulke skerms kan anders wees.
Naatlose oorgang met effekte
Naatlose oorgang met effekte
Whether in case of a signal or a preset, U3/U3PRO is capable of seamless transition, without any blackout, glimmer or delay in the process; Buitendien, U3/U3PRO owns over ten transition effects for choice by the user, adaptable for different applications.
Ethernet monitoring & control in real time
Ethernet control
U3/U3PRO can be compatible with KYSTAR management software via Ethernet or serial communication. Users can configure parameters on U3/U3PRO through management software, adjust window layout, complete special effects switching, set up scheduled tasks etc.
Ethernet monitoring and preview
Via Ethernet, users can not only configure the parameters of U3/U3PRO, but achieve monitoring and preview through the KYSTAR management software in real time.
Local Monitoring And Preview
Plaaslike monitering en voorskou
There’re three modes when using the local monitor & preview output of U3/U3PRO:
1.Monitor die uitsette, wat dieselfde beeld met die skerm vertoon.
2.Voorskou die insette, wys 6 voer beelde op dieselfde tyd in.
Hot Backup of InputSignals
Warm rugsteun
Users can specify the backup signal for signal source . If current signal goes wrong, the system will automatically detect and call the backup signal immediately. And if the signal returns to normal, the system will transfer back to the original signal intelligently. Building parallel system with this function, the reliability of scene can be guaranteed efficiently.
Image Configuration
Deursigtigheidverstelling en randvere
Om die verskillende lae beeld goed te integreer, U3/U3PRO can change the transparency of each windows or achieve edge feathering effect.
Onafhanklike helderheidsbeheer
U3/U3PRO can adjust the brightness of each inputs independently so that the user can improve the quality of the specific image without influence to the others.

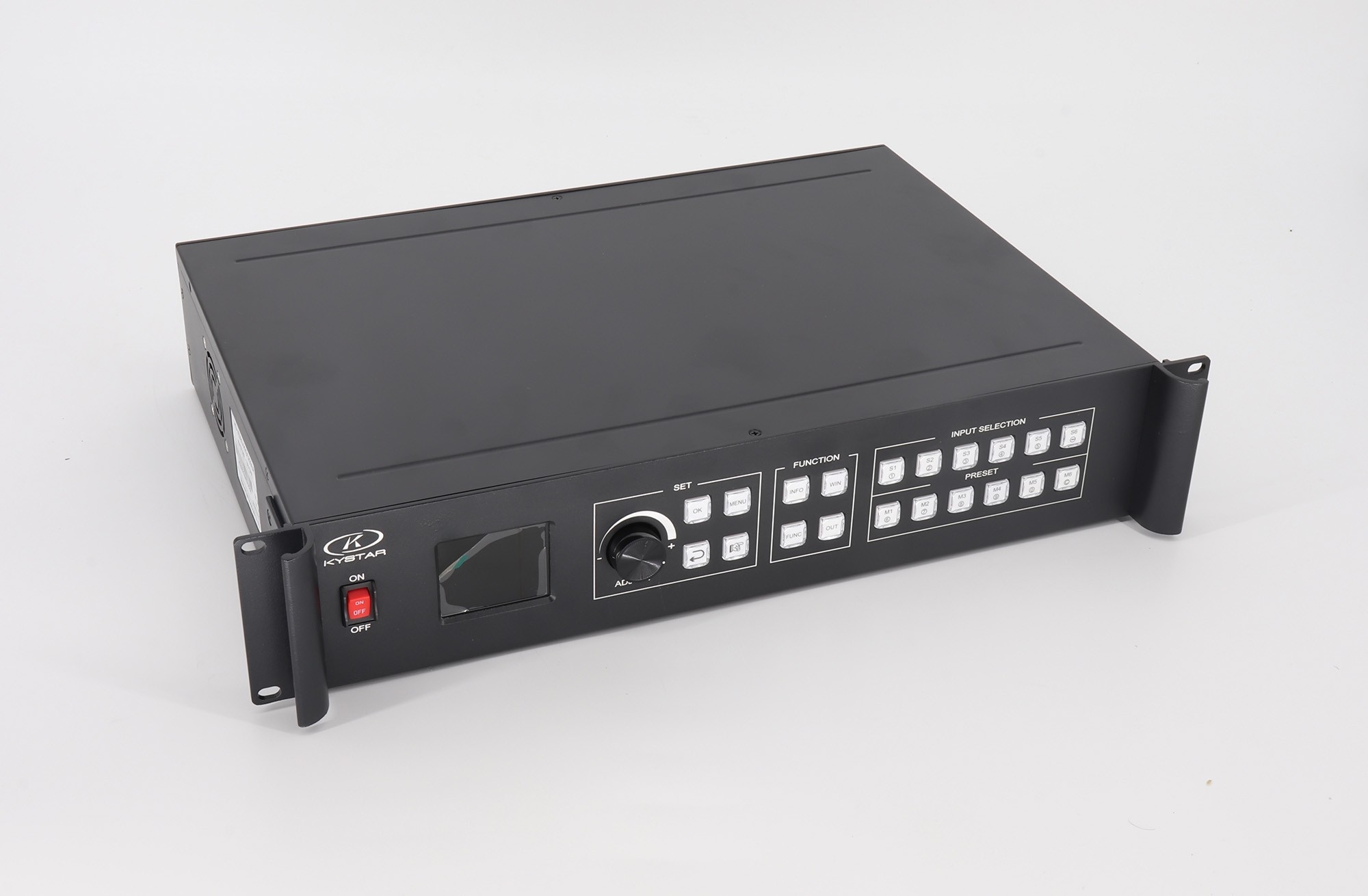

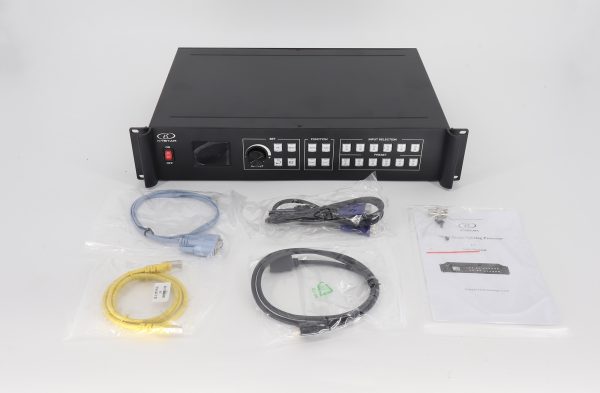

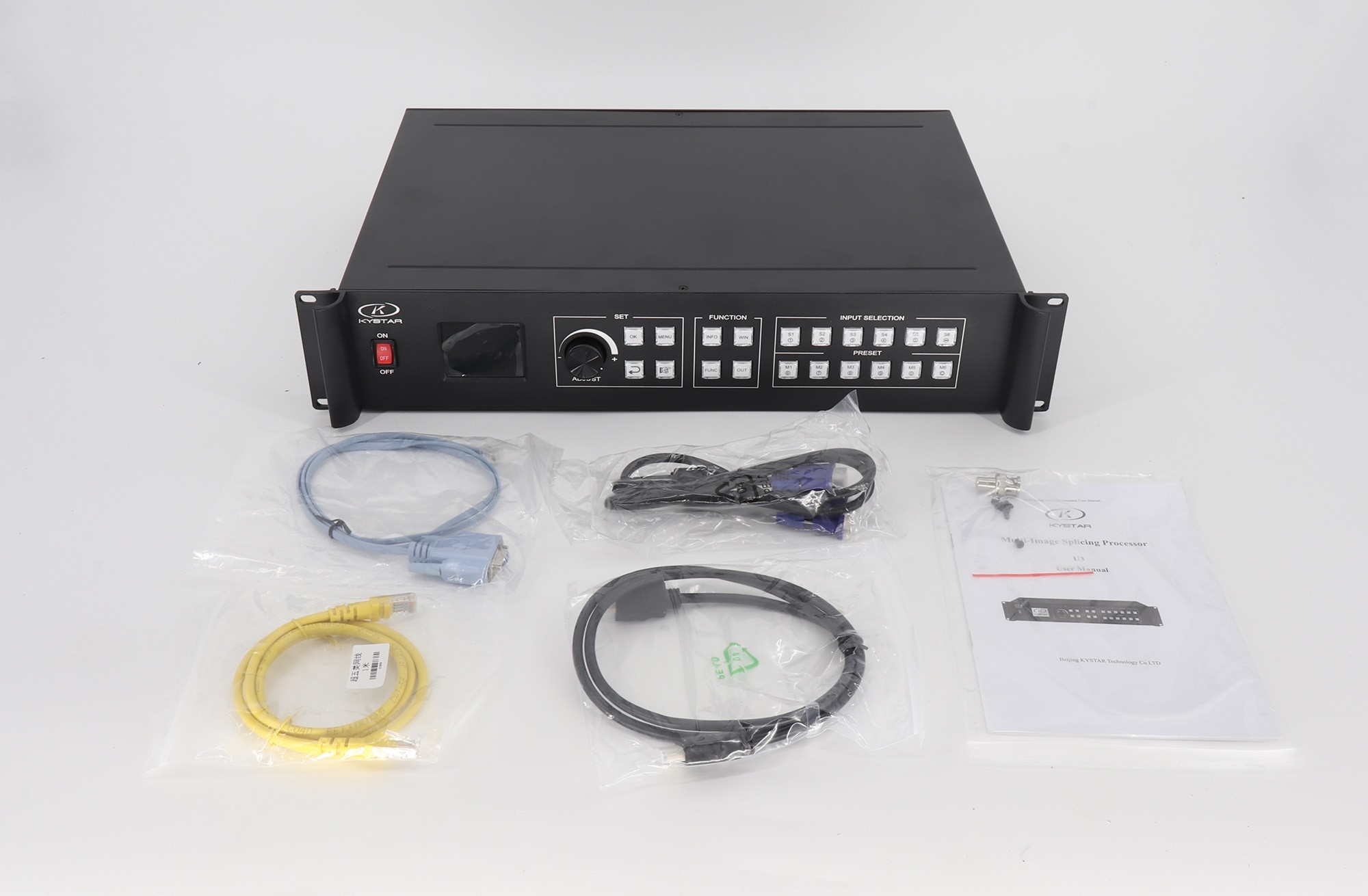

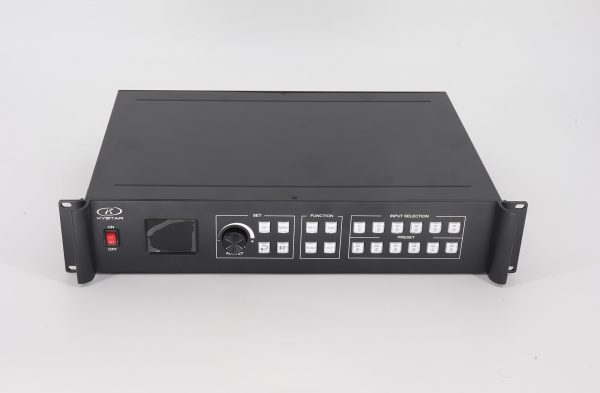

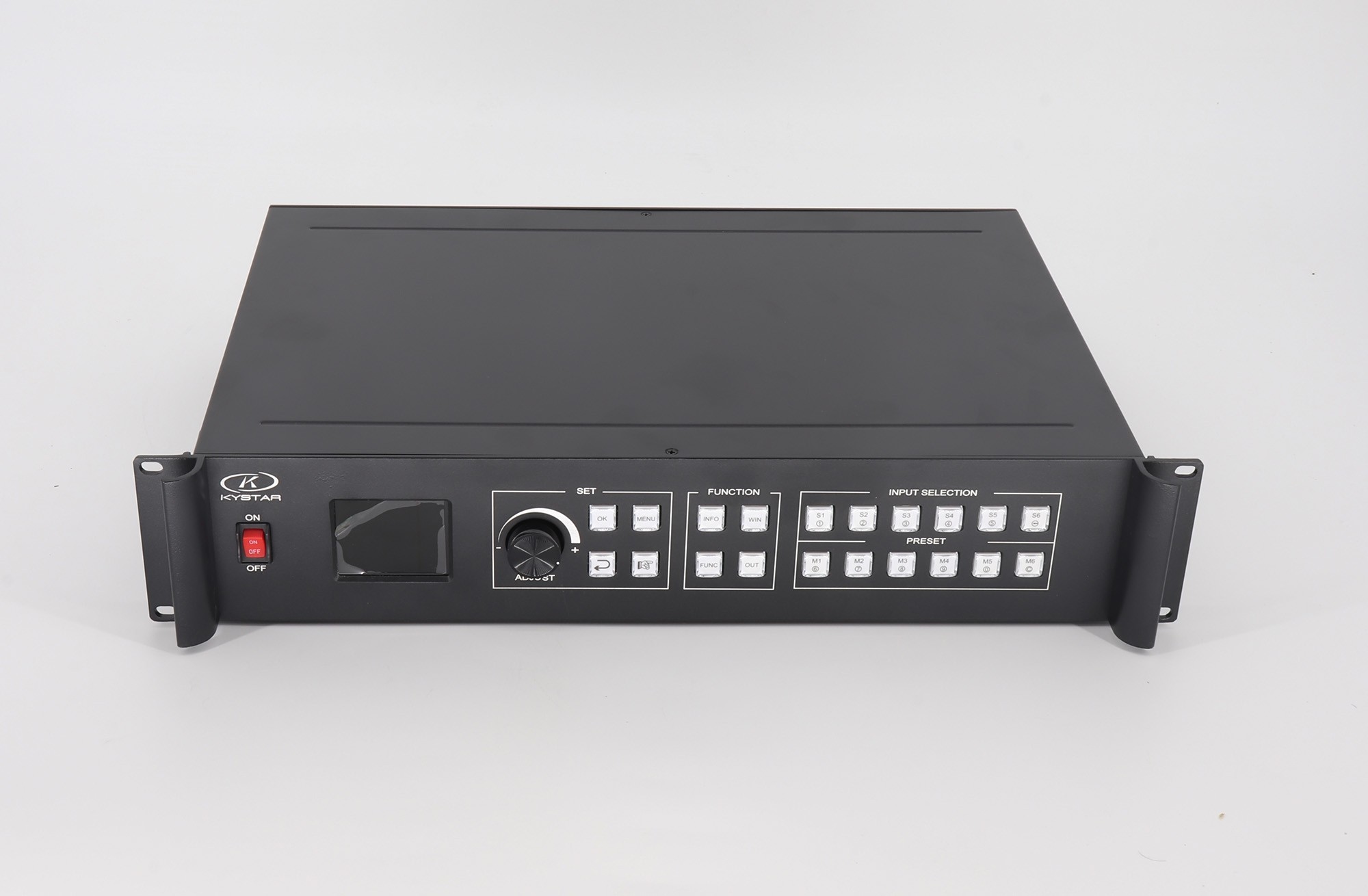

More Pictures of Kystar U3 UHD LED Display Video Processor:
